ORION HF320 Dual Socket Overclocked High Frequency Trading Server
World's fastest dual socket HF trading server.
[hf320]
More Image(s)
The ORION HF320 servers deliver unparalleled performance for High Frequency Trading, Low Latency and Quantitative Investing applications. Key metrics for High-Frequency Trading are latency and computing speed, or the time it takes to actually process a trade.
Availability: In stock
Details
- 3U Rack-mount Form Factor

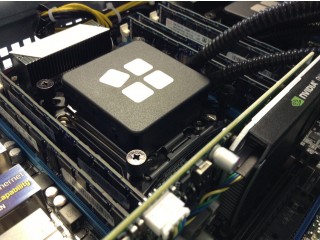

- High Performance Liquid Cooled System
- Close Loop and Maintenance Free
- Datacenter Compliant
- Intel® i7 (6 Cores) processor at up to 3.9 GHz (more coming Q3 2013)
- Up to 64GB of High Speed Memory (1866MHz)
- Up to 2 Dual 10GigE Card (i.e. SolarFlare)
- OS Drive: SSD PCI-E or 2 x SSD Raid 0
- Windows or Linux 64bits
- Remote Management Tools (IPMI 2.0 in Q3 2013)
- Power efficiency (up to 90%)
| Part No. | hf320 |
|---|---|
| End of Life? | No |
| Rack Units | 3 |
| Weight [Kg] | 12.00 |
| CPU Socket(s) | 2 |
| Compatible CPU(s) | 2 x Intel® Xeon® Processor E5-2687W - Safely overclocked up to 4.02GHz* |
| Max CPU Clk Spd | Up to 4.02 GHz |
| CPU Cache | 20 MB |
| Max # Thread(s) | 16 |
| Max # Core(s) | 8 |
| Memory Slot(s) | DDR3 ECC 1600MHz+ |
| Memory Capacity | Up to 64GB Overclocked; Up to 256GB at 1600MHz |
| Drive Bays | Up to 4 x 2.5” SATA hot-swap drives |
| Capacity | Up to 4TB |
| HDD Suitability | SATA : 250GB, 500GB, 1TB SSD : 128GB, 256GB, 480GB SSD PCI-E : 240GB, 480GB, 960GB |
| RAID Controller | LSI 9211 4 Ports 6Gbps Storage Controller |
| RAID Options | (RAID 0, 1, 5, 6, 10, 50, 60) |
| Supported OS | Microsoft® Windows® HPC server 2008, 2012 Linux : Red Hat® Enterprise, CentOS |
| USB Port(s) | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x Vertical USB 2.0 port(s) |
| PCI Slot(s) | 4 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x16 (x8 mode) 1 x PCIe 2.0 x1 |
| LAN Socket(s) | Intel® 82574L, 2 x Gigabit LAN Controller(s) Optional SolarFlare or Mellanox Low Latency Single and Dual Ports 10GigE Ethernet cards |
| LAN Controller(s) | Intel® 82574L |
| Graphics / GPU | Support up to 2 cards. Intel® Xeon Phi™ NVIDIA Tesla K20C FPGA Accelerator cards. When GPU or accelerator cards are chosen, 1440W power supplies maybe required. |
