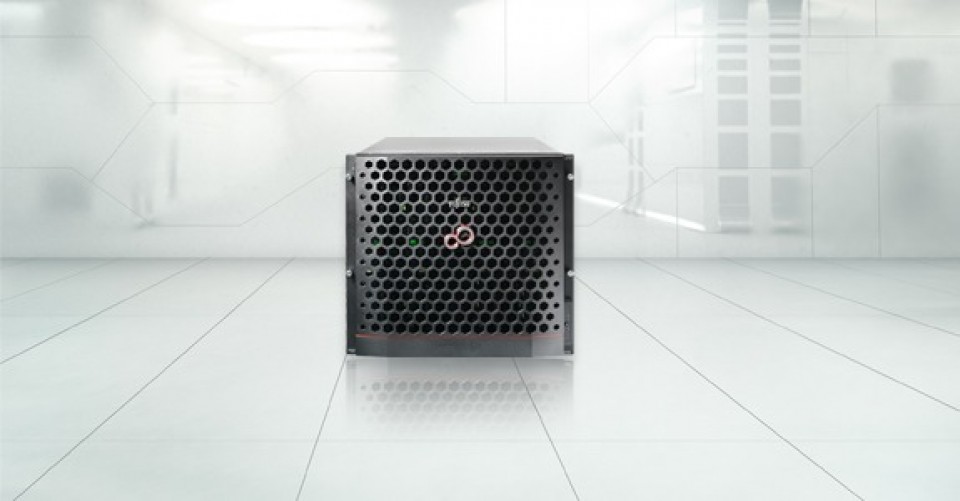

Fujitsu PRIMEQUEST 2800E Mission Critical

Mission critical open system


More Image(s)

Fujitsu PRIMEQUEST provides high-end server functionality using superior Fujitsu technology, long cultivated and refined over generations of computer system development.

Availability: In stock

For details on how to purchase the Fujitsu PRIMEQUEST 2800E Mission Critical, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Main Features


Complete redundancy and online recovery function
  • Almost all the components can be redundantly configured
  • Unique redundancy at the heart of the server, including system boards and system interconnects, offers even greater protection
  • System boards or I/O units can be replaced online if any of them fails
  • Systems on Fujitsu PRIMEQUEST 2800E can continue operation even if a component fails
  • Central component failure is usually fatal for continued system operation. Fujitsu PRIMEQUEST’s unique levels of redundancy eliminates such causes of major system failure making it suitable for enterprise operation.
  • Dynamic Reconfiguration can recover from failure without system interruption by Dynamic Reconfiguration
Highest data throughput in mission critical arena
  • 2.5 times the performance of predecessor model
  • Highest level of database performance in Mission Critical arena
  • High performance for computation, memory access and I/O access
  • High data throughput even for very large data
  • Fujitsu Primequest 2800E with 2.5 times the performance scalability can accommodate higher enterprise workload.
  • Fujitsu Primequest 2800E can satisfy customers demand to expand business platform without disruption
  • Max. 1.9 Peta bytes of SSD storage allows the movement of any large data to SSD
Only grow as you need, only but for that growth
  • Online addition of system Board or I/O units can increase performance in simple manner
  • Customers can save money for system investment until business growth requires system expansion.
Rich variety of I/O products
  • Solid state drive products for disk drives and flash memory connected through PCIe are selectable according to customers demands such as cost efficiency and high performance
  • Infiniband helps scale out database system without sacrificing performance
  • For demands for cost efficiency and performance upgrade, SSD disk drives can be the best solution. For demands for high performance upgrade, PCIe SSD can be the best solution
  • Primequest with Infiniband can scale up Oracle Database unlimitedly
Secure confidential data
  • Even if confidential data is stolen, the stolen data cannot be used maliciously
  • Intel Xeon's on chip encryption greatly reduces encryption/decryption time making database encryption a practical solution for protecting intellectual property
Much lower operational costs
  • Fujitsu Primequest 2800E can halve reduce power consumption compared to predecessor model at similar performance
  • The Primequest with compact chassis reduced its dimension from 12 to 10 rack unit can reduce data center space and foot print
  • With high performance Intel Xeon E7-8800 v2 product family and super fast I/O technology, Primequest provides high performance with small number processor core.
  • Human resource costs for server management, including: installation, integration, monitoring, maintenance and upgrading are reduced
Risk free virtualization
  • Physical partitioning of up to four partitions is available
  • Physical partitions and software virtualization products can be mixed in the same server
  • Standard virtulization products such as VMware vSphere 5, Hyper-V and Red Hat Enterprise Linux KVM are supported
  • For customers undertaking system virtualization for the first time, physical partitioning is the best entry strategy. There are no performance overheads and no incompatibilities with applications
  • Once confident with virtualization, customers can then integrate other standard virtualization products onto the same system
  • A wide variety of ISV products is available including the major and popular virtualization products. Physical partitioning even allows you to compare such environments side by side.
Part No. 2800E
Manufacturer Fujitsu
End of Life? No
Height 43.8
Width 44.5
Depth 77.8
Weight [Kg] 150.00
CPU Socket(s) 2 Processor per System Board
Compatible CPU(s) Intel Xeon® processor E7-8850v2 (12C/24T, 2.30GHz, TLC:24 MB, Turbo: Yes, 7.2 GT/s, Mem bus: 1333 MHz, 105W) Intel Xeon® processor E7-8857v2 (12C/12T, 3.0GHz, TLC:30 MB, Turbo: Yes, 8.0 GT/s, Mem bus: 1600 MHz, 130W) Intel Xeon® processor E7-8870v2 (15C/30T, 2.30GHz, TLC:30 MB, Turbo: Yes, 8.0 GT/s, Mem bus: 1600 MHz, 130W) Intel Xeon® processor E7-8880v2 (15C/30T, 2.50GHz, TLC:37.5 MB, Turbo: Yes, 8.0 GT/s, Mem bus: 1600 MHz, 130W) Intel Xeon® processor E7-8890v2 (15C/30T, 2.80GHz, TLC:37.5 MB, Turbo: Yes, 8.0GT/s, Mem bus: 1600 MHz, 155W) Intel Xeon® processor E7-8893v2 (6C/12T, 3.4 GHz, TLC:37.5 MB, Turbo: Yes, 8.0GT/s, Mem bus: 1600 MHz, 155W)
Memory Slot(s) 192
Memory Capacity 16GB-12TB
Drive Bays 2.5-inch hot-plug SAS 24 x 2.5-inch
RAID Controller RAID 5/6 Ctrl, SAS/SATA 6Gbit/s, LSI LSI MegaRAID SAS 9286CV-8e, 8 ports ext. RAID level:0, 1, 10, 5, 50, 6, 60, 1GB, Optional FBU (based on LSI SAS2208)
Supported OS Microsoft Windows Server® 2008 R2 Microsoft Windows Server® 2008 R2, Standard Edition (64-bit) Microsoft Windows Server® 2008 R2, Enterprise Edition (64-bit) Microsoft Windows Server® 2008 R2, Datacenter Edition (64-bit) Microsoft Windows Server® 2012 Microsoft Windows Server® 2012 Standard Edition (64-bit) Microsoft Windows Server® 2012 Datacenter Edition (64-bit) Microsoft Windows Server® 2012 R2 Microsoft Windows Server® 2012 R2 Standard Edition (64-bit) Microsoft Windows Server® 2012 R2 Datacenter Edition (64-bit) Red Hat Enterprise Linux Red Hat Enterprise Linux 6 ( for Intel64) Red Hat Enterprise Linux 7 ( for Intel64) SUSE Linux Enterprise Server Novell SUSE Linux Enterprise Server 11 (for Intel64) Novell SUSE Linux Enterprise Server 11 (for x86) VMware VMware vSphere 5.5 VMware vSphere 5.1 Update2
PCI Slot(s) PCIe slots in max. four IO units and max. four PCI Boxes are available. Max. four sets of PCIe 3 slots below selectable - 4 low profile PCIe 3 slots for IOU 1GbE - 1 low profile PCIe 3 slots and 2 PCIe 3.0 full height slots for IOU 10GbE
LAN Socket(s) LAN ports in max. four IO Units are available. Max. four sets of LAN ports below selectable = 1 x dual 1Gbps Ethernet (RJ45) ports for IOU 1GbE = 1 x dual 10Gbps Ethernet (RJ45) ports for IOU 10GbE
