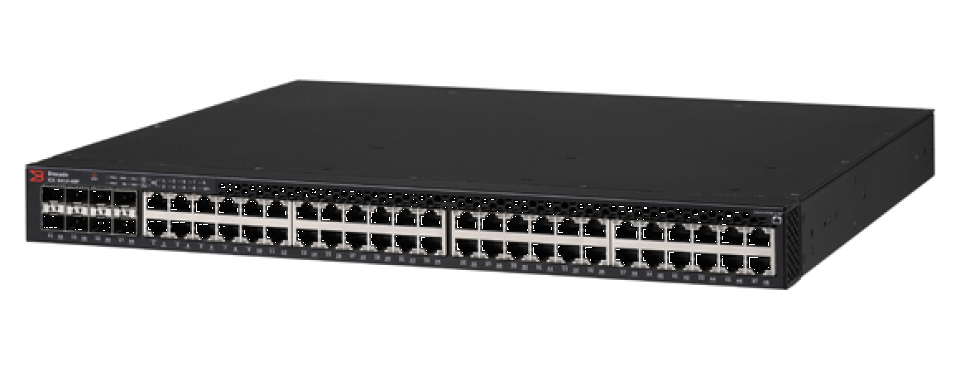

Brocade ICX 6610

Enterprise-Class Stackable Switching at an Entry-Level Price

[Brocade ICX 661]
Designed for data center deployments.
Availability: In stock

For details on how to purchase the Brocade ICX 6610, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

The Brocade ICX 6610 series switches are designed for data center deployments

Data centers mainly requiring 1 GbE connectivity at a small form factor. In addition, up to eight 10GbE SFP+ ports can be enabled via software license providing high-speed connectivity.

They deliver enterprise-class Ethernet functions with three different software packages (Base, Premium, Advance) allowing customers to choose the optimized feature set for their particular needs.

If requirements increase over time, up to eight Brocade ICX 6610 switches can be stacked together to form a single logical switch with up to 384 GbE and 64 10 GbE ports.

HyperEdgeâ„¢ Architecture

  • Enables stacking with Brocade ICX 6610 and 6450 switches and propagates premium software features across the entire stack.

Up to eight 10 GbE ports

  • Up to eight SFP+ ports can be converted in two groups of four ports from 1GbE to 10 GbE with software key activation

Available with three different software licenses

  • With different software license customers only pay for what they really need.
  • It is possible to start with base switching functions and enable a full layer 3 feature set if needed later on.

Four 40GbE standard QSFP stacking ports

  • Instead of using proprietary stacking cables standard QSFP cables and modules can be used for stacking.
  • Advanced stacking features allow hitless stack failover and hot switch replacement

Redundant PSU and FAN units

  • Data center class availability is enabled by redundant and hot pluggable PSU and FAN units
Part No. Brocade ICX 661
End of Life? No
Manufacturer Brocade
Serial Ports 1 x Serial Port
Connection Type 10/100/1000 ports: RJ-45
1 Gbps SFP ports: SX, LX, LHA, LHB, 1000Base-BX, CWDM
10 Gbps SFP+ ports: Direct-attached copper (Twinax), SR, LR
Stacking ports: 40 GbE QSFP for use with direct-attached 1 meter or 5 meter stacking cable
Out-of-ba
Bandwidth 1.28 Tbps
