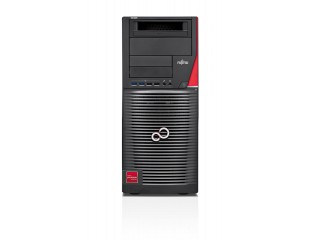

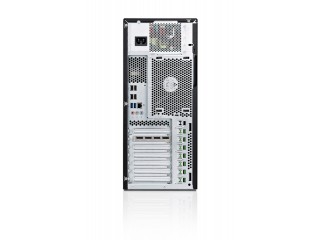

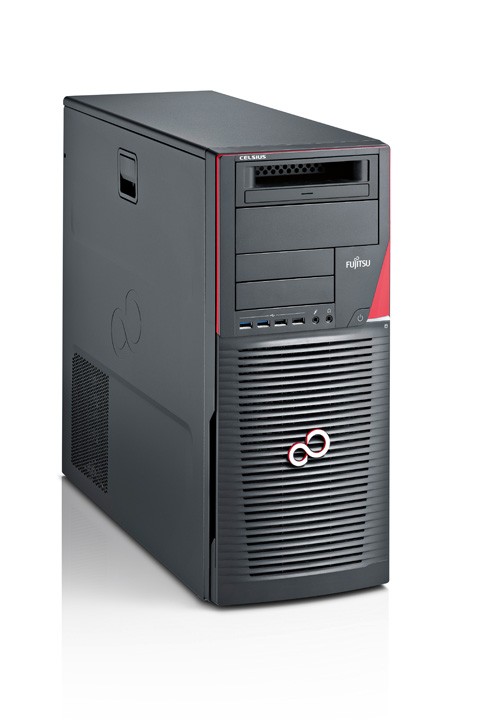

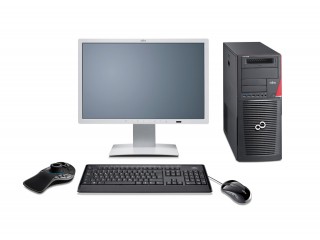

Fujitsu Celsius M740 Workstation

Bring Your Ideas To Life


More Image(s)

Optimized to combat today’s professional and technical challenges, It can be individually configured, helping you to enhance your productivity.
Availability: In stock

For details on how to purchase the Fujitsu Celsius M740 Workstation, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Performance you can count on

Spectrum of performance due to a wide range of professional grade features
  • Next generation Intel Xeon processors, high performing graphics subsystems, quad-channel memory technology and high-speed hard disk drives.

"IT made in germany"

From design to production - an "IT made in Germany" quality in which you can trust
  • Optimized thermal management and near-silent noise emission of 20dB(A)

Stringest quality control

System stability through-out the complete lifecycle
  • High product standards thanks to top-quality components and comprehensive testing in certified in-house laboratories for 24/7 operation

Certification of workstation applications

Stability, compatibility and performance for the main workstation applications
  • Comprehensive support for ISV applications and ease of integration into existing IT networks


Excellent expandability for future demands
  • Increased memory capacities of up to 256 GB DDR4 memory
Part No. CelsiusM740
Manufacturer Fujitsu
End of Life? No
Rack Units 5U
Height 43
Width 18.6
Depth 48.1
Weight [Kg] 18.00
Compatible CPU(s) Xeon® E5-2699v3 (18C, 2.30GHz, 45MB);
Xeon® E5-2697v3 (14C, 2.60GHz, 35MB);
Xeon® E5-2690v3 (12C, 2.60GHz, 30MB);
Xeon® E5-2687Wv3 (10C, 3.10GHz, 25MB);
Xeon® E5-2680v3 (12C, 2.50GHz, 30MB);
Xeon® E5-2670v3 (12C, 2.30GHz, 30MB);
Xeon® E5-2667v3 (8C, 3.20GHz, 20MB);
Xeon® E5-2660v3 (10C, 2.60GHz, 25MB);
Xeon® E5-2650v3 (10C, 2.30GHz, 25MB);
Xeon® E5-2643v3 (6C, 3.40GHz, 20MB);
Xeon® E5-2640v3 (8C, 2.60GHz, 20MB);
Xeon® E5-2637v3 (4C, 3.50GHz, 15MB);
Xeon® E5-2630v3 (8C, 2.40GHz, 20MB);
Xeon® E5-2623v3 (4C, 3.00GHz, 10MB);
Xeon® E5-2620v3 (6C, 2.40GHz, 15MB);
Xeon® E5-2609v3 (6C, 1.90GHz, 15MB);
Xeon® E5-2603v3 (6C, 1.60GHz, 15MB);
Xeon® E5-1680v3 (8C, 3.20GHz, 20MB);
Xeon® E5-1660v3 (8C, 3.00GHz, 20MB);
Xeon® E5-1650v3 (6C, 3.50GHz, 15MB);
Xeon® E5-1630v3 (4C, 3.70GHz, 10MB);
Xeon® E5-1620v3 (4C, 3.50GHz, 10MB);
Xeon® E5-1607v3 (4C, 3.10GHz, 10MB);
Xeon® E5-1603v3 (4C, 2.80GHz, 10MB);
Max CPU Clk Spd Up to 3.7 GHz
CPU Cache Up to 45 MB
Max # Thread(s) Up to 36
Max # Core(s) Up to 18
Memory Slot(s) 8 DIMM (DDR4) ECC
Memory Capacity 256 GB
Memory Expansion 4GB (1 module(s) 4GB) DDR4, registered, ECC, 2133 MHz, PC4-2133;
8GB (1 module(s) 8GB) DDR4, registered, ECC, 2133 MHz, PC4-2133;
16GB (1 module(s) 16GB) DDR4, registered, ECC, 2133 MHz, PC4-2133;
32GB (1 module(s) 32GB) DDR4, registered, ECC, 2133 MHz, PC4-2133

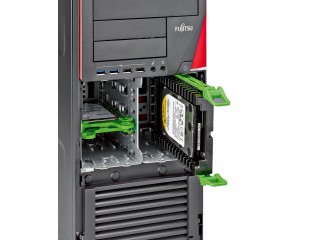

Drive Bays Up to 8x 2.5-inch HDDs (cold plug) and 1x 2.5-inch SSD or
Up to 4x 3.5-inch HDDs (cold plug) and 1x 2.5-inch SSD or
Up to 2x 2.5-inch and 2x 3.5-inch HDDs (cold plug) and 1x 2.5-inch SSD
RAID Controller RAID 0/1/5/10
RAID Options RAID 5/6 Ctrl. 12 Gbit/s 8 ports int. or
RAID 0/1 Ctrl. 12 Gbit/s 8 ports int. or
RAID 0/1 Ctrl. 6 Gbit/s 8 ports int.
USB Port(s) USB 2.0 total 9 // USB 3.0 total 4
PCI Slot(s) PCI-Express 3.0 x4 (mech. x8) 1 x (170 mm / 6.69 inch) Full height;
PCI-Express 3.0 x4 (mech. x16) 1 x (340 mm / ) Full height;
PCI-Express 3.0 x16 2 x (340 mm / 13.39 inch) Full height;
PCI-Express 2.0 x4 (mech. x16) 1 x (340 mm / 13.39 inch) Full height;
PCI-Express 2.0 x1 (mech. x8) 2 x (100 mm / 3.94 inch) Full height
LAN Socket(s) WLAN 802.11 ac (2x2) PCIe;
WLAN 802.11ac (2x2) and Bluetooth 4.1 PCIe x1 FH (dedicated regions only);
WLAN 802.11 a/g/n (2x2), (dedicated regions only, not for Indonesia)
Graphics / GPU Ultra-high-end 3D: NVIDIA® Quadro® M6000, 12 GB, 2,880 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort, stereo, SLI Ultra-high-end 3D: AMD FirePro™ W9100, 16 GB, 2816 stream processors, PCIe x16, 6x miniDP, 6x miniDP/DP Adapter Ultra-high-end 3D: NVI
Standard 3 years (depending on country)
Optional Bring-In / Onsite Service (for countries within region FTS CEMEA&I, for all other countries depending on local regulations, minimum: 3 years material warranty)
