Achieving first-class benchmark results, this reliable, high-end dual processor desktop workstation is individually configurable and optimized for extremely demanding and memory intensive multi threaded applications.
Availability: In stock
Details
Unleash the power
Acheive the optimum out of any demanding application- Intel Xeon processor E5-2600 v3 family up to 2 x 18 cores, support of up to 1024 GB of DDR4 memory, SAS RAID controller as well as a Fujitsu SSD PCIe card (up to 2x 512 GB)
Maximum expandability
Broad selection and configurability options- Broad choice of high-end professional graphic cards from AMD and Nvidia (up to three ultra-high-end or four mid-range graphic cards) and support for eight hard disk drives
Work around the clock
Certain components can be configured to support an extended lifetime usage- Selection of top-quality components and comprehensive testing in certified in-house laboratories
Made in Germany
Design, engineering, product management, support and production - located at the Augsburg factory in Germany- Optimized air flow and dedicated triple "Air Tunnel" flow results in reduced noise emissions even under full system load
Comprehensive ISV certifications
Full support for ISV applications and easy integration into existing IT environments- Maximum compatibility and performance with customer-preferred applications
Part No. | Celsiusr940 |
---|---|
Manufacturer | Fujitsu |
End of Life? | No |
Height | 43 |
Width | 18.6 |
Depth | 61.8 |
Weight [Kg] | 20.00 |
CPU Socket(s) | 2 |
Compatible CPU(s) | Intel® Xeon® processor E5-2699v3 (18 cores, 2.30 GHz, 45 MB) Intel® Xeon® processor E5-2697v3 (14 cores, 2.60 GHz, 35 MB) Intel® Xeon® processor E5-2690v3 (12 cores, 2.60 GHz, 30 MB) Intel® Xeon® processor E5-2687Wv3 (10 Cores, 3.10 GHz, 25 MB) Intel® Xeon® processor E5-2680v3 (12 cores, 2.50 GHz, 30 MB) Intel® Xeon® processor E5-2670v3 (12 cores, 2.30 GHz, 30 MB) Intel® Xeon® processor E5-2667v3 (8 Cores, 3.20 GHz, 20 MB) Intel® Xeon® processor E5-2660v3 (10 Cores, 2.60 GHz, 25 MB) Intel® Xeon® processor E5-2650v3 (10 Cores, 2.30 GHz, 25 MB) Intel® Xeon® processor E5-2643v3 (6 Cores, 3.40 GHz, 20 MB) Intel® Xeon® processor E5-2640v3 (8 Cores, 2.60 GHz, 20 MB) Intel® Xeon® processor E5-2637v3 (4 Cores, 3.50 GHz, 15 MB) Intel® Xeon® processor E5-2630v3 (8 Cores, 2.40 GHz, 20 MB) Intel® Xeon® processor E5-2623v3 (4 Cores, 3.00 GHz, 10 MB) Intel® Xeon® processor E5-2620v3 (6 Cores, 2.40 GHz, 15 MB) Intel® Xeon® processor E5-2609v3 (6 Cores, 1.90 GHz, 15 MB) Intel® Xeon® processor E5-2603v3 (6 Cores, 1.60 GHz, 15 MB) |
Memory Slot(s) | 16 (8 per processor) DIMM (DDR4) ECC |
Memory Capacity | 512 GB |
Memory Expansion | 4 GB (1 module(s) 4 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133 8 GB (1 module(s) 8 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133 16 GB (1 module(s) 16 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133 32 GB (1 module(s) 32 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133 |

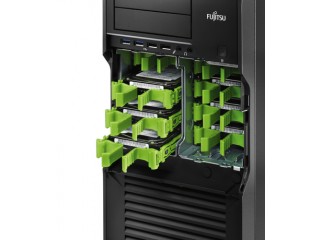

Drive Bays | Up to 8x 2.5-inch HDDs (cold plug) and 1x 2.5-inch SSD or Up to 4x 3.5-inch HDDs (cold plug) and 1x 2.5-inch SSD or Up to 2x 2.5-inch and 2x 3.5-inch HDDs (cold plug) and 1x 2.5-inch SSD |
RAID Options | RAID 5/6 Ctrl. 12 Gbit/s 8 ports int. RAID 0/1 Ctrl. 12 Gbit/s 8 ports int. RAID 0/1 Ctrl. 6 Gbit/s 8 ports int. |
USB Port(s) | USB 2.0 total 9 // USB 3.0 total 4 |
PCI Slot(s) | PCI-Express 3.0 x8 1 x (200 mm) Full height PCI-Express 3.0 x16 4 x (340 mm / 13.39 inch) Full height (2x PCIe 3.0x16 per processor) PCI-Express 2.0 x4 (mech. x16) 1 x (340 mm / 13.39 inch) Full height PCI-Express 2.0 x1 (mech. x8) 1 x (340 mm / 13.39 inch) Full height PCI-Express 3.0 x8 (internal) 1 x (170 mm / 6.69 inch) Full height (available with 2nd CPU) |
LAN Socket(s) | WLAN 802.11 ac (2x2) PCIe WLAN 802.11ac (2x2) and Bluetooth 4.1 PCIe x1 FH (dedicated regions only) WLAN 802.11 a/g/n (2x2), (dedicated regions only, not for Indonesia) |
LAN Controller(s) | 10/100/1,000 MBit/s Intel® I217LM and Intel® I210 |
Graphics / GPU | Ultra-high-end 3D: NVIDIA® Quadro® M6000, 12 GB, 2,880 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort, stereo, SLI Ultra-high-end 3D: AMD FirePro™ W9100, 16 GB, 2816 stream processors, PCIe x16, 6x miniDP, 6x miniDP/DP Adapter Ultra-high-end 3D: NVI |
