Cisco Nexus 4001I Switch Module for IBM BladeCenter

A blade switch solution for IBM BladeCenter H and HT chassis.


More Image(s)

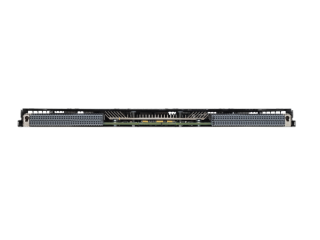

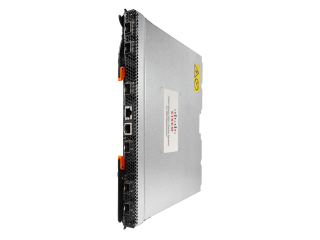

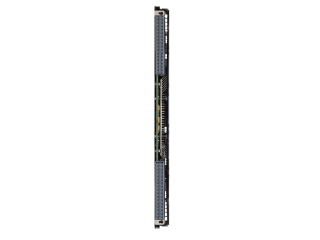

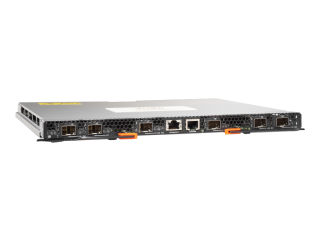

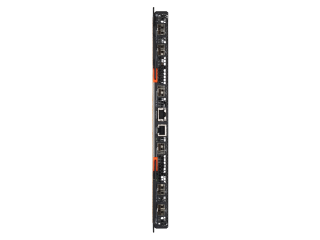

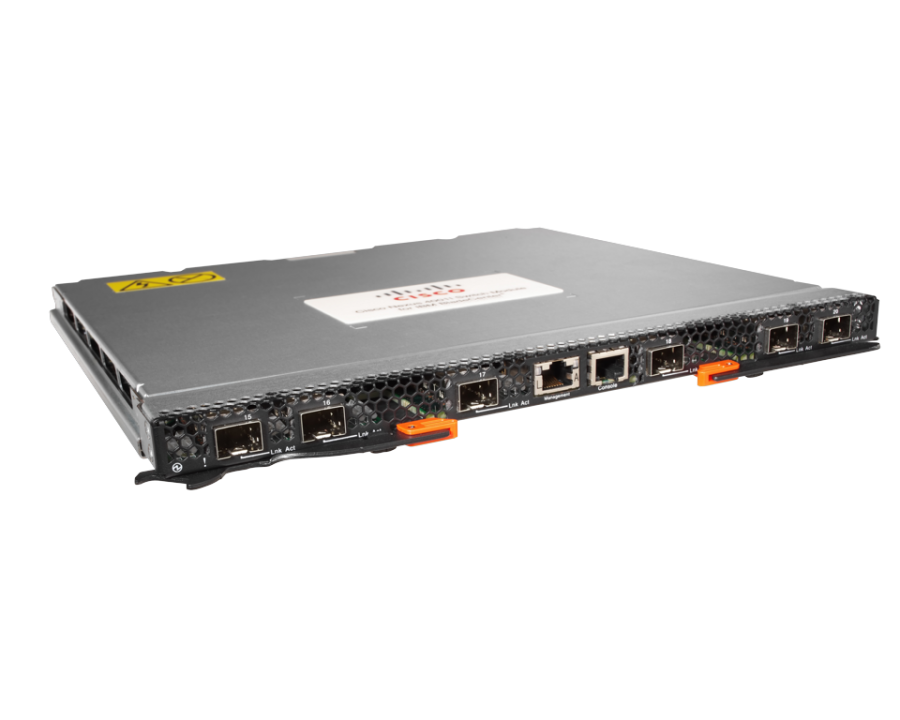

The Cisco Nexus™ 4001I Switch Module for IBM BladeCenter (Figure 1) is a blade switch solution for IBM BladeCenter H and HT chassis, providing the server I/O solution required for high-performance, scale-out, virtualized and nonvirtualized x86 computing architectures. It is a line-rate, extremely low-latency, nonblocking, Layer 2, 10 Gigabit Ethernet blade switch that is fully compliant with the INCITS Fibre Channel over Ethernet (FCoE) and IEEE 802.1 Data Center Bridging (DCB) standards.
Availability: In stock

For details on how to purchase the Cisco Nexus 4001I Switch Module for IBM BladeCenter, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


At the center of the Cisco Nexus 4001I is the unified switch application-specific integrated circuit (ASIC), a new, purpose-built, high-performance, line-rate switch ASIC that delivers extremely low and consistent latency across all packet sizes independent of the configured networking features. The unified switch ASIC supports standard Ethernet as well as Priority Flow Control (PFC) and Enhanced Transmission Selection, required for lossless Ethernet transmission.

LAN and SAN networking protocols are delivered through Cisco® NX-OS Software, the industry's first modular, fault-tolerant, highly available operating system designed specifically to support unified fabric data center networks. Using the combination of the unified switch ASIC and Cisco NX-OS, the Cisco Nexus 4001I extends the benefits of the Cisco Nexus Family of data center switches to blade servers: the fastest growing segment of the server market.

Main Benefits

The Cisco Nexus 4001I provides four major benefits:

  • Lower total cost of operation (TCO): Deployment of unified fabric with the Cisco Nexus 4001I at the blade server access enables a significant reduction in the number of switches, LAN and SAN network interface cards (NICs), ports, optic modules, and cables. This consolidation of server access network elements significantly reduces the overall capital and operation costs of the data center network through reduction in the number of network elements that need to be purchased, managed, powered, and cooled.
  • High performance: The Cisco Nexus 4001I is a line-rate, feature-rich, extremely low-latency switch capable of enabling server access migration from Gigabit Ethernet to 10 Gigabit Ethernet to lossless 10 Gigabit Ethernet, as well as supporting the demanding latency requirements of high-performance computing (HPC) clusters and high-frequency trading applications.
  • Enhanced server virtualization: Using unified fabric at the server access with Cisco Nexus 4001I provides the uniform interfaces, simplified cabling, and consistent server access design required to gain the advantages of automated virtual machine mobility. The Cisco Nexus 4001I used in conjunction with the Cisco Nexus 1000V Switch delivers an operationally consistent and transparent server access design for virtual machine deployments, substantially reducing the overhead needed to configure, troubleshoot, and repair the server access link between the virtual NIC (vNIC), virtual switch, and the blade switch.
  • Increased resilience: The Cisco Nexus 4001I extends Cisco NX-OS to the blade server access, providing a fault-tolerant network with single modular operating system across the data center.


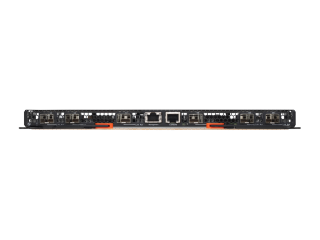

  • Fourteen fixed 10 Gigabit Ethernet server-facing downlinks (autosensing ports; can also operate in Gigabit Ethernet mode)
  • Six fixed 10 Gigabit Ethernet uplinks (autosensing ports; can also operate in Gigabit Ethernet mode)
  • Two management ports: one external 10/100/1000BASE-T port and one internal port for advanced management module (AMM) connectivity
  • One RS-232 serial console port

The Cisco Nexus 4001I inserts into the high-speed slot (HSS) of the IBM BladeCenter H or HT chassis. The Cisco BladeCenter H and HT chassis are designed to support up to four Cisco Nexus 4001I switches per chassis.

Transceiver and Cabling Options

The Cisco Nexus 4001I supports a wide variety of 10 Gigabit Ethernet connectivity options using Cisco 10GBASE Small Form-Factor Pluggable Plus (SFP+) modules. For in-rack or adjacent-rack cabling, the Cisco Nexus 4001I supports SFP+ direct-attach 10 Gigabit Ethernet copper, an innovative solution that integrates transceivers with Twinax cables into an energy-efficient and low-cost solution. For longer cable runs, multimode and single-mode optical SFP+ transceivers are supported. Table 1 lists the supported 10 Gigabit Ethernet transceiver options.

Manufacturer Cisco
Part No. N4K-4001I-XPX
Width 293.9
Height 20
Depth 260.93
Weight [Kg] 1.79
Rack Units 1 Blade Unit
Specification Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.
Compliant Standards • IEEE 802.1D: Spanning Tree Protocol
• IEEE 802.1p: CoS Prioritization
• IEEE 802.1Q: VLAN Tagging
• IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol
• IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol
• IEEE 802.3: Ethernet
• IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
• IEEE 802.3ae: 10 Gigabit Ethernet
• SFF 8431 SFP+ CX1 support
Bandwidth Forwarding rate of 300 million packets per second (mpps)
Channels 7 EtherChannels; 6 ports per EtherChannel
Switching Capacity 400-Gbps switching capacity
Ports 14 10 GbE downlinks, 6 10 GbE uplinks
Port-Port Latency 1.5 Ms
LAN Socket(s) Up to 512 configurable VLANs
