Dell EMC PowerEdge M1000e Chassis

The rock-solid foundation for Dell's blade server architecture

[M1000e]

More Image(s)

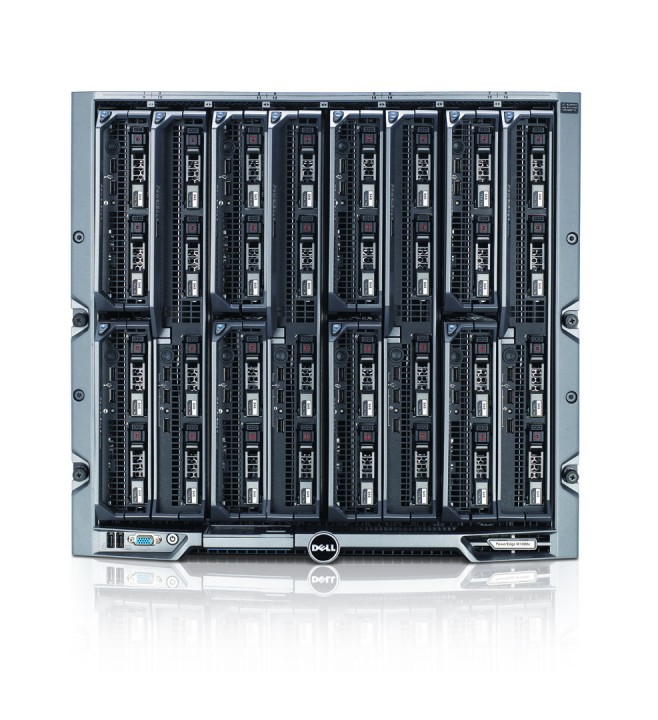

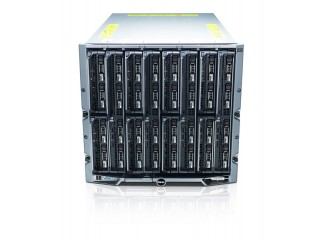

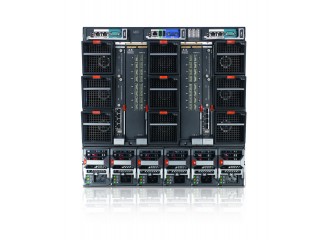

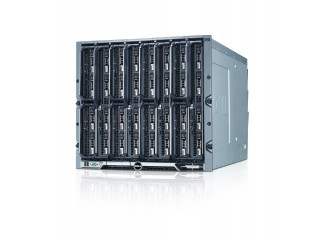

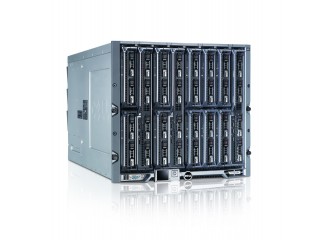

The Dell PowerEdge M1000e Modular Blade Enclosure is the rock-solid foundation for Dell's blade server architecture, providing an extremely reliable, flexible and efficient platform for building any IT infrastructure.


Availability: In stock

For details on how to purchase the Dell EMC PowerEdge M1000e Chassis, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

The Dell PowerEdge M1000e Modular Blade Enclosure is a breakthrough in enterprise server architecture. Built from the ground up to combat data centre sprawl and IT complexity, the M1000e delivers one of the most energy efficient, flexible, and manageable blade server products on the market.

Leading Energy Efficiency

The M1000e enclosure takes advantage of its world-class design by coupling optimised airflow with ultra-efficient power supplies and fans to effectively cool the chasis within a lower power envelope.

Effortless Scalability

Only Dell provides complete, scale-on-demand switch designs. With additional I/O slots and switch options, you have the flexibility you need to meet ever-increasing demands for I/O consumption. Plus, Dell's FlexIO modular switch technology letts you easily scale to provide additional uplink and stacking functionality - no need to waste your current investment with a "rip and replace" upgrade.

Easy-to-Use, Powerful Management Tools

The M1000e helps reduce the cost and complexity of managing computing resources so you can focus on growing your business or managing your organisation with features such as:

  • Centralised Chassis Management Controller (CMC) modules for redundant, secure access paths for IT administrators to manage multiple enclosures and blades from a single interface.
  • Dynamic and granular power management so you have the capability to set power thresholds to help ensure your blades operate within your specific power envelope.
  • Real-time reporting for enclosure and blade power consumption, as well as the ability to prioritise blade slots for power, providing you with optimal control over power resources.

FlexAddress Technology: The Simple, Low-Cost Way to Limit Downtime

Dell's patent-pending FlexAddress technology allows any M-Series blade enclosure to assign the World Wide Name (WWN) or Media Access Control (MAC) address of Fibre Channel, Ethernet and iSCSI controllers to an M1000e blade slot instead of directly to the blade. By removing the networking and storage identity from the server hardware, customers are now able to upgrade and replace components or the entire blade server without being forced to change the identity on the network or rezoning switches. Unlike other solutions, which often require separate management interfaces and propietary hardware, directly from the integrated Chassis Management Controller by simply selecting the chassis slots and fabrics which you want to enable. FlexAddress delivers persistent network and storage identities, equipping your data centre to handle predictable or even unplanned changes - add, upgrade, or remove servers without affecting your networks.

Dell Services

Dell Services can help reduce IT complexity, lower costs, and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team takes a holistic view of your needs and designs solutions for your environment and business objectives while leveraging proven delivery methods, local talent, and in-depth domain knowledge for the lowest TCO.

Chassis Type 10U rack enclosure
Blade Bays Up to sixteen half-height blade servers
Management Blades

1 standard or optional 2nd redundant Chassis Management Controller(s) (CMC) which provide:

  • Single secure interface for inventory, configuration, monitoring, and alerting for the chassis and all components
  • Real-Time Power/Thermal Monitoring and Management
  • Real-Time System AC Power Consumption with resettable
  • System-level power limiting and slot-based power prioritisation

Manages Dynamic Power Engagement functionality which can help to lower overall system power consumption by ensuring power supplies run at their optimal efficiency points

Manages fan speed control using Dell's enhanced efficiency technologies to ensure fans are delivering optimal cooling while minimising power consumption and airflow

Secure Web (SSL) and Command Line (Telnet/SSH) interfaces

Supports multiple levels of user roles and permissions, including integration into Microsoft Active Directory Services

2x 10/100/1000Mb Ethernet ports + 1 serial port

Provides single point of connection from management network to iDRAC on each of the blades and the management interfaces on the integrated I/O Modules

2nd Ethernet port supports daisy chaining of CMC for improved cable management

#

Optional Integrated Avocent keyboard, video and mouse (iKVM) switch

  • Enables, USB keyboard/mouse and video port on front control panel
  • 2 x USB, video, and Analog Console Interface (ACI) ports
  • ACI port allows connectivity and seamless tiering via cat5 cables to Dell or Avocent KVM switches with Analog Rack
  • Interface (ARI) ports

Dell OpenManage Systems Management

  • Altiris Deployment Solution for Dell Blade Servers - reduce deployment time from hours to seconds
  • Dell Management Console - manage multiple Dell servers from a single console
  • OpenManage Server Administration - monitoring agents and one-to-one management utilities
  • Integration with 3rd party management solutions through Dell's Certified Partner Program
  • Remote Management
Fan Configuration 9 hot-pluggable, redundant fan modules
Power Supply Configuration

3 non-redundant or 6 redundant 2360 watt hot-plug supplies:

  • Based on Dell Energy Smart Technologies, the M1000e power supplies deliver greater levels of efficiency (>91%), even at low levels of utilisation
  • Redundant power supplies support 3+3 (AC redundancy), 3+1 (power supply redundancy), or 3+0 (non-redundant) modes
  • System supports new Dynamic Power Supply Engagement functionality, which (if enabled) puts lightly loaded power supplies into standby mode, driving up the utilisation and thus the efficiency on the active supplies
  • Power supplies require 200+ volt AC input; Dell offers a wide range of Power Distribution options for the M1000e with 20A, 30A, 60A single-phase, or 30A three-phase options
Manufacturer Dell Technologies
Part No. M1000e
End of Life? No
Depth 754
Width 447
Height 440
Rack Units 10U
Weight [Kg] 178.70
