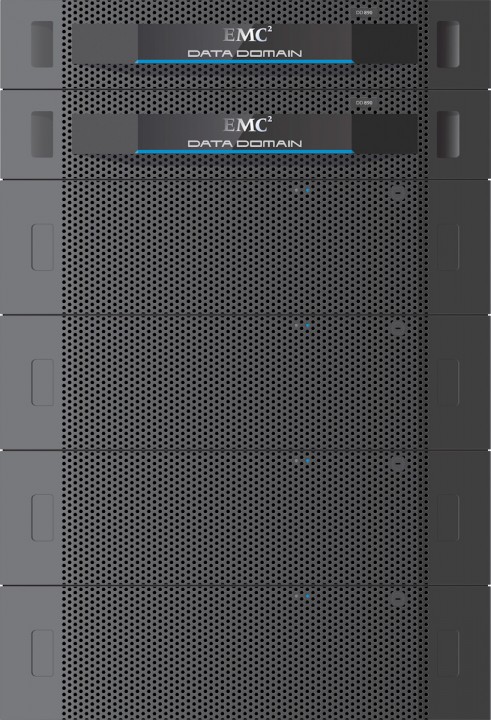

EMC DataDomain Global DeDuplication Array

GDA is a scalable system that offers up to 28.5 PB of logical storage with a typical enterprise data set and backup policy. Enterprises with over 200 TB of data can use GDA to store and protect 2 months of retention on disk in the same number of floor tiles that would normally provide only a couple of days disk staging.

EMC Data Domain Global Deduplication Array (GDA) is the industry’s highest performance inLine deduplication storage system for enterprise backup applications. GDA presents a single deduplication storage pool to the backup application across two EMC Data Domain DD890 controllers. Multiterabyte data sets are dynamically and transparently load balanced across the controllers, simplifying capacity management, performance management, and backup administration.

Global Deduplication Array seamlessly integrates into backup environments that use EMC NetWorker42, Symantec NetBackup, and Backup Exec using the EMC Data Domain Boost software option. DD Boost software provides users with the retention and recovery benefits of inline deduplication as well as managed replication for offsite disaster recovery protection. Alternatively, GDA can be connected to your backup servers as a virtual tape library (‘111) over Fibre Channel using EMC Data Domain Virtual Tape Library software. GDA is qualified with all leading enterprise backup software and easily integrates into existing infrastructures without change for either data center or distributed office data protection.

Scalable DedupLication Storage

• Fast, inline deduplication with up to 26.3 TB/hour of through put
• Backup over 17518 in less than eight hours
• Extended retention providing up to 28.5 PB of logical storage
• 10 to 30x data reduction average

Easy Integration for large Enterprise Data Centers

• UseoIVTtorFMCDataDornain Boost
• Support leading enterprise backup applications
• Minimize footprint and management complexity
• Execute up to 270 concurrent backup jobs
• Protect very Large data sets MuLtisite Disaster Recovery
• 99 percent bandwidth reduction
• Cost-efficient disaster recovery
• Flexible replication topologies
• Consolidate backup and DR
• Cross s4te deduplication and replication from up to 270 remote sites
• Encrypted replication

Ultra-Safe Storage for Reliable Recovery

• Continuous recovery verification, fault detection, and healing
• Dual disk parity RAID 6

Operational Simplicity

• Reduce backup complexity
• Simple system administration
