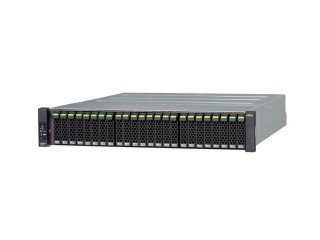

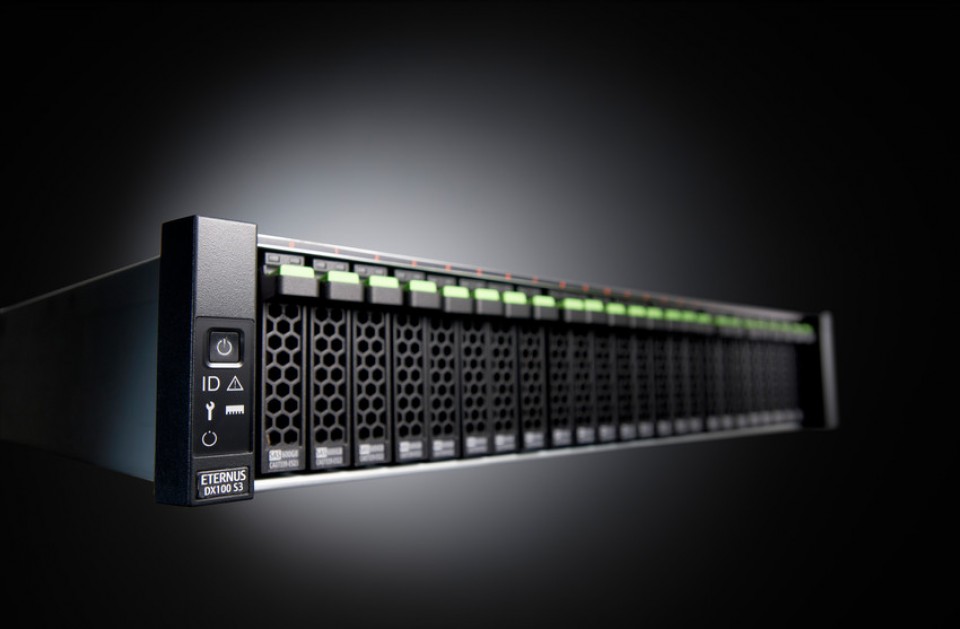

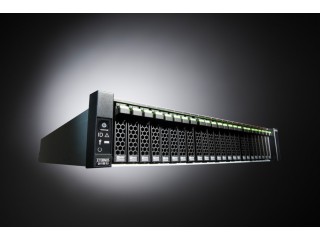

Fujitsu ETERNUS DX100 S3 Disk Storage System
The all-in-one storage system for SMBs or subsidiaries
[dx100s3]Details
The Fujitsu ETERNUS DX100 S3 Disk Storage System is the perfect solution when consolidating data for server virtualization, e-mail, databases and business applications as well as centralized file services. Simple, intuitive system management, highly flexible network connectivity and the option of field upgrades to higher system classes significantly reduce operational and migration costs. The ETERNUS DX family architecture lets customers benefit from software options, such as thin provisioning, automatic storage tiering and quality of service management even as early as the entry-level class. This all contributes to better business support.
ETERNUS DX - Business-centric Storage
Combining leading performance architecture with automated quality of service management the Fujitsu Storage ETERNUS DX series aligns storage resources with business priorities, thus enabling higher system utilization and delivering increased system consolidation capabilities and a faster ROI. Unified scalable entry-level and midrange systems, a seamless family concept enabling system upgrades and ETERNUS SF, the unified management suite across the product line, reduce operational and migration costs. ETERNUS SF provides enterprise-class functionalities in the entry and midrange class and allows flexible disaster recovery concepts for the different model sizes, thus decreasing investment costs.
Excellent price-performance in the entry-class
- Performance and capacity headroom enable data consolidation for server virtualization, e-mail, databases and business applications in one system
- High scalability within the system and upgrade options to bigger systems support high data increases at low costs of growth and ensure investment protection
Enterprise-class management functions in the entry class
- Richly featured ETERNUS SF Express management suite at no extra cost
- Intelligent snapshot functionality for backup already included
- Easy and efficient operation with a minimum of administration efforts
Truly unified architecture
- Unified SAN and NAS access drive system utilization improving ROI
- Unified management functions across the entire product line result in operational efficiency
- Unified connectivity supports a large range and many combinations of networking types
- Unified architecture allows flexible combinations of 2.5" and 3.5" disk types
Manufacturer | Fujitsu |
---|---|
Part No. | dx100s3 |
End of Life? | No |
Width | 482 |
Height | 88 |
Depth | 645 |
Weight [Kg] | 35.00 |
Rack Units | 2 RU (Controller) |
Drive Bays | 144 |
Capacity | 576 TB |
HDD Suitability | 2.5-inch, SAS, 15,000 rpm (300 GB); 2.5-inch, SAS, 10,000 rpm (1,200 GB / 900 GB / 600 GB / 300 GB); 2.5-inch, SAS (self-encrypting), 10,000 rpm (1,200 GB / 900 GB); 2.5-inch, Nearline SAS, 7,200 rpm (1 TB); 2.5-inch, SSD (800 GB / 400 GB); 3.5-inch, Nearline SAS, 7,200 rpm (4 TB / 3 TB / 2 TB); 3.5-inch, SSD (800 GB / 400 GB) |
Max. No. of Drive Enclosure(s) | 10 Max. |
Storage Capacity | 576 TB |
Max. LUN Capacity | 128 TB |
Max. No. of LUNs | 2048 |
No. of Snapshots | 8 (Built In) 1024 (Max) |
Power Consumption | 340W–1300W |
Cache | 8 GB (block) / 8 GB + 8 GB (block + file) |
Host Interface / Link Speeds | Fibre Channel (16 Gbit/s, 8 Gbit/s, 4 Gbit/s); FCoE (10 Gbit/s); iSCSI (10 Gbit/s, 1 Gbit/s); SAS (6 Gbit/s, 3 Gbit/s); Ethernet (10 Gbit/s, 1 GBbit/s) |
Max. No. of Host(s) | 1024 |
Supported OS | Microsoft Windows Server 2008, 2012, Windows XP, Vista, 7 |
LAN Socket(s) | Ethernet (1000 Base-T / 100 Base-TX / 10 Base-T) for Management |
Remote Management | Web-based graphical user interface, CLI (Command Line Interface), ETERNUS SF |
Standard | 3 years, onsite service. |
