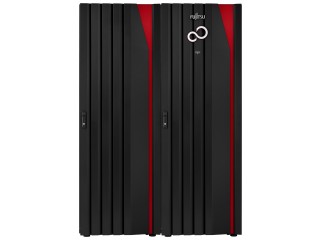

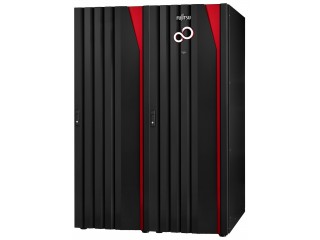

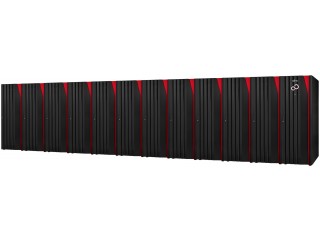

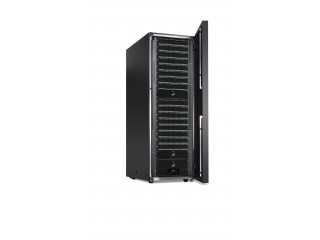

Fujitsu ETERNUS DX8900 S3

Enterprise Storage with leading scalability in capacity and performance

[DX8900 S3]

More Image(s)

The ETERNUS DX8900 S3 disk storage system is purpose-built for biggest enterprises and ideal for the data management of business-critical core applications and the hyper-consolidation of large-scale data centers.
Availability: In stock

For details on how to purchase the Fujitsu ETERNUS DX8900 S3, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

The ETERNUS DX8900 S3 disk storage system is purpose-built for biggest enterprises and ideal for the data management of business-critical core applications and the hyper-consolidation of large-scale data centers.

ETERNUS DX8900 S3 provides non-disruptive capacity upgrades with up to 4608 disk drives, just by adding disks or complete drive enclosures.

Performance of more than 4 million IOPS is provided by configurations based on 2 to 24 controllers and a maximum of 384 front-end ports for host connectivity. For simultaneous connection to different network types, FC, FCoE and iSCSI host interfaces can operate in mixed configurations.

Tiered storage optimization using a range of SAS, Nearline SAS and SSD drive options lowers the overall total cost of storage. The challenges of data exposure protection are addressed by self-encrypting drives (SED).

Flexible and automated management across different quality of service profiles, using different drive types for each application scenario, ensures efficient assignment of system resources matched to the performance priorities of different applications.

Highest availability and seamless business continuity is guaranteed by redundant interconnections to the storage array and internal redundant components and completed by transparent failover which ensures uninterrupted operation in case of an outage.

Flexible scalability in capacity and performance

  • Future-oriented scale-out architecture and upgrade options meet today's and tomorrow's business requirements
  • Low cost of growth ensures investment protection
  • Superior system utilization
  • Large scale storage consolidation
  • Leading performance by design

Zero downtime for business critical data

  • Predictable and reliable operation through end-to-end redundancy, comprehensive high-availability and disaster resilience functions
  • Multi-level disaster recovery with various snapshot concepts and remote replication between different models and generations
  • Highest business continuity by transparent failover and non-disruptive maintenance as well as upgrade capabilities

Automation to manage upredictable data growth

  • Automatically alinged storage performance with business priorities
  • Minimized manual tuning efforts
  • Optimized service level fulfillment
Manufacturer Fujitsu
Part No. DX8900 S3
End of Life? No
Memory Capacity 6144
Drive Bays 4608
Capacity 70779 TB
HDD Suitability 2.5-inch, SAS, 15,000 rpm (900 GB / 600 GB / 300 GB);
2.5-inch, SAS, 10,000 rpm (1.8 TB / 1.2 TB / 900 GB / 600 GB / 300 GB);
2.5-inch, SAS (self-encrypting), 10,000 rpm (1.2 TB / 900 GB);
2.5-inch, SSD (15.36TB / 7.68TB / 3.84 TB / 1.92 TB / 960 GB / 1.6 TB / 800 GB / 400 GB);
2.5-inch, SSD (self-encrypting) (1.92 TB / 1.6 TB / 800 GB);
2.5-inch, Nearline SAS, 7,200 rpm (2 TB / 1 TB);
3.5-inch, Nearline SAS, 7,200 rpm (10 TB / 8 TB / 6 TB / 4 TB / 2 TB);
3.5-inch, Nearline SAS (self-encrypting), 7,200 rpm (4 TB);
3.5-inch, SSD (3.84 TB / 1.92 TB / 960 GB / 1.6 TB / 800 GB / 400 GB);
3.5-inch, SSD (self-encrypting) (1.92 TB / 1.6 TB / 800 GB)
Max. No. of Drive Enclosure(s) Max. 192
Max. LUN Capacity 128 TB
Max. No. of LUNs 65535
No. of Snapshots 32768
Cache 38.4 TB
Host Interface / Link Speeds Fibre Channel (16 Gbit/s);
iSCSI (10 Gbit/s, 1 Gbit/s);
FCoE (10 Gbit/s)
No. of Host Interfaces 384 (FC), 192 (iSCSI/FCoE)
Max. No. of Host(s) 8192
Supported OS Microsoft Windows Server 2016;
Microsoft Windows Server 2012, 2012 R2;
Microsoft Windows Server 2008, 2008 R2;
Solaris11 (11/11 or later);
Solaris 10;
Red Hat Enterprise Linux 7;
Red Hat Enterprise Linux 6;
Red Hat Enterprise Linux 5;
VMware® vSphere 6.0, 6.5;
VMware® vSphere 5/ 5.1/ 5.5;
Microsoft Windows Server 2016 Hyper-V;
Microsoft Windows Server 2012 Hyper-V, 2012 R2 Hyper-V;
Microsoft Windows Server 2008 Hyper-V, 2008 R2 Hyper-V;
Hyper-V 2.0
Remote Management Web-based graphical user interface, CLI (Command Line Interface), ETERNUS SF
RAID Controller 0, 1, 1+0, 5, 5+0, 6
Standard 3 years onsite warranty
Optional X - Available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Fujitsu ETERNUS DX8900 S3 Disk Storage System - Enterprise Storage with leading scalability in capacity and performance
