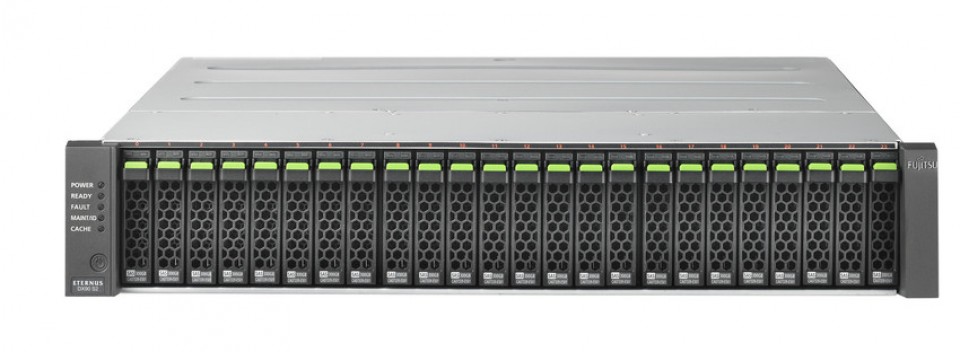

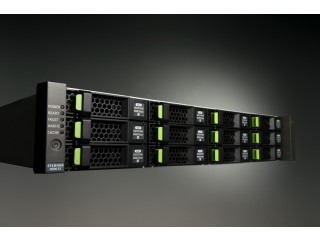

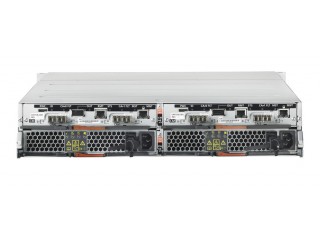

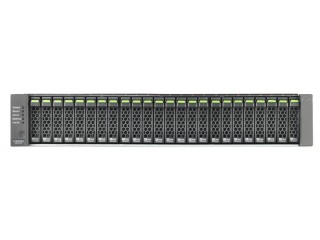

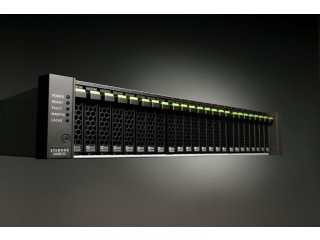

Fujitsu ETERNUS DX90 S2 Disk Storage System

The Flexible Data Safe for Dynamic Infrastructures.


More Image(s)

ETERNUS DX90 S2 with Intel® Xeon® processor is an affordable disk storage system for small and midsize environments. ETERNUS DX90 S2 scales flexibly up to 240 disk drives. Different 2.5 inch, 3.5 inch, SAS, Nearline SAS, SSD drive types are supported even in mixed configurations, to enable efficient implementation of a tiered storage environment. Non-disruptive capacity upgrades are possible just by adding disks or complete enclosures. Data-in-place upgrades lead seamlessly to the next higher ETERNUS DX400 S2 series.

Availability: In stock

For details on how to purchase the Fujitsu ETERNUS DX90 S2 Disk Storage System, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Customers can choose from FC, FCoE, iSCSI, or SAS, host interfaces which can be flexibly changed during the lifecycle. The new FCoE 10Gbit/s interface enables future-proof infrastructure convergence. For simultaneous connection to different network types ETERNUS DX90 S2 can operate interfaces in a mixed configuration. Remote copy of ETERNUS DX90 S2 to a second storage device (ETERNUS DX90 S2 / DX400 S2 series / DX8000) protects valuable data assets against site outages.

ETERNUS SF Express management software provided with ETERNUS DX90 S2 simplifies monitoring, management, and data copy tasks, for single or multiple ETERNUS DX disk storage systems, from a central console.

Eternus DX S2 Storage Systems

Fujitsu’s second generation of ETERNUS DX disk storage systems, ETERNUS DX S2, are The Flexible Data Safe for Dynamic Infrastructures. Enterprise-proven capabilities protect data assets across all types of IT infrastructure. Redundant components, RAID protection and build-in data protection provide the highest system reliability to ensure business continuity is maintained.

ETERNUS DX S2 models are comprehensive disk storage platforms with superior scalability to address the demands of intensive data growth and highest performance. Free choice of modular disk storage and state-of-the-art connectivity across the entire model range delivers maximum configuration flexibility allowing choice in performance and TCO. Data-in-place upgrade options are also available throughout the system’s lifecycle to ensure maximum investment protection.

The unified ETERNUS SF storage management software enables single point administration, easy data protection and efficient operation across the entire ETERNUS DX range. In virtualized IT environments in particular, ETERNUS SF perfectly integrates the powerful ETERNUS DX disk storage with minimal administration effort.

Manufacturer Fujitsu
Part No. ET092SCU
End of Life? Yes
Width 482
Height 88
Depth 670
Weight [Kg] 35.00
Rack Units 2 U per Enclosure (Drive / Controller)
Drive Bays 240x 2.5" or 120x 3.5"
Capacity 360.0 TB Max.
HDD Suitability 3.5" SAS disk drives - 600 GB/450 GB/300 GB (15krpm);
3.5" Nearline SAS disk drives - 3 TB/2 TB/1 TB (7.2krpm);
3.5" SSD (Solid State Drives) - 400 GB/200 GB/100 GB;
2.5" SAS disk drives - 900 GB/600 GB/450 GB/300 GB (10krpm);
2.5" SSD (Solid State Drives) - 400 GB/200 GB/100 GB
File Level Protocol SNMP (version1, 2C, 3), SMI-S 1.4
Cache 4 - 8 GB
Host Interface / Link Speeds Fibre Channel (8/4/2 Gbit/s); FCoE (10 Gbit/s); iSCSI (10 Gbit/s) or iSCSI (1 Gbit/s); SAS (6/3 Gbit/s)
Supported OS Microsoft® Windows Server®2008 Standard (32-bit) (64-bit) including R2;
Microsoft® Windows Server® 2008 Enterprise (32-bit) (64-bit) including R2;
Microsoft® Windows Server® 2008 Datacenter (32-bit) (64-bit) including R2
Supported Software Microsoft® Windows® 7 Home Premium;
Microsoft® Windows® 7 Professional;
Microsoft® Windows® 7 Ultimate;
Windows Vista® Home Basic;
Windows Vista® Home Premium;
Windows Vista® Business;
Windows Vista® Enterprise;
Windows Vista® Ultimate;
Windows® XP Home Edition;
Windows® XP Professional;
Microsoft® Windows Server®2008 Standard (32-bit) (64-bit);
Microsoft® Windows Server® 2008 Enterprise (32-bit) (64-bit);
Microsoft® Windows Server® 2008 Datacenter (32-bit) (64-bit)
LAN Socket(s) Ethernet (1000 Base-T / 100 Base-TX / 10 Base-T)
RAID Options 0, 1, 1+0, 5, 5+0, 6
