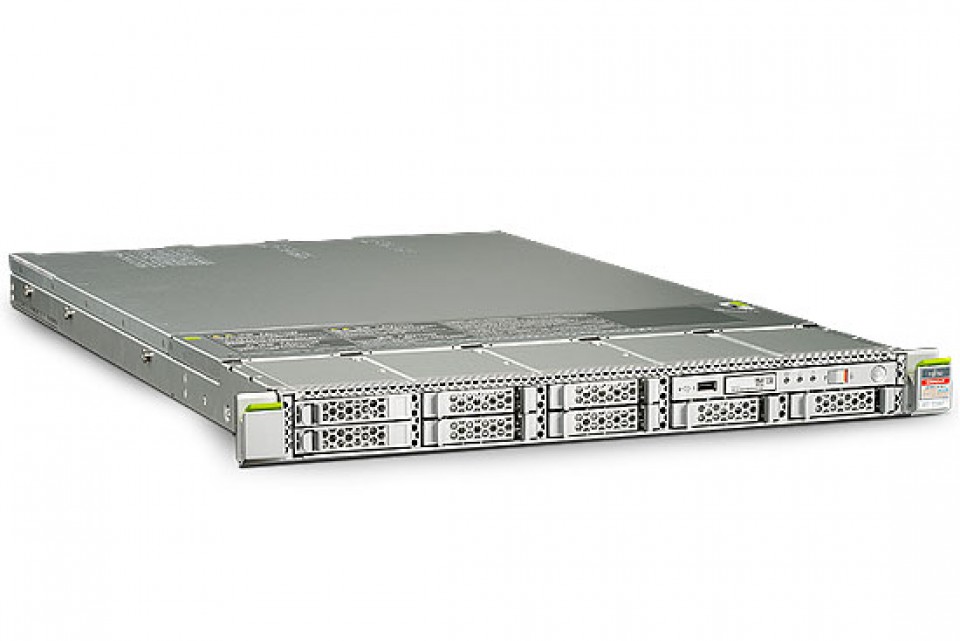

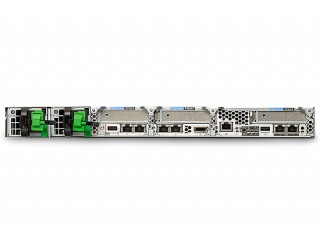

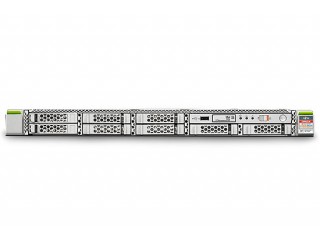

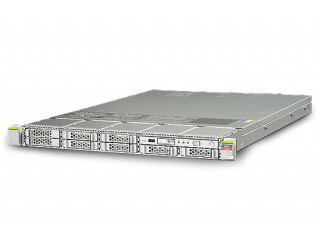

Fujitsu M10-1 Server

Performance and Mission-Critical Availability in a Compact Form Factor


More Image(s)

The Fujitsu M10-1 server is a space saving, entry-level server with high performance, high reliability, and no-cost virtualization ideal for data center integration and virtualization.
Availability: In stock

For details on how to purchase the Fujitsu M10-1 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Key Features

  • This compact entry-level server scales up to 16 cores.
  • It is ideal for data center integration and virtualization.
  • The new 2.8 GHz SPARC64 X processor, with supercomputer technology, provides superior performance for enterprise workloads such as OLTP, ERP, BIDW, SCM, and CRM.
  • Software-on-chip instructions on the SPARC64 X processor accelerate key database functions.
  • CPU Activation economically and rapidly meets capacity requirements.
  • Flexible resource configuration using Oracle VM Server for SPARC and Oracle Solaris Zones virtualization technologies.
  • Power-saving features are built in to the processor and the server.
  • The server features mainframe-class RAS features for 24/7 mission-critical applications.
  • The system is managed by the independent service processor’s eXtended System Control Facility (XSCF).
  • Firmware updates during system operation are supported.

The Fujitsu M10-1 server is a space-saving entry-level server with high performance and reliability that is ideal for data center integration and virtualization. It supports as many as 16 cores, large-capacity memory, and a large disk in a space-saving one-rack-unit (1U) chassis. It can handle low-end and midrange enterprise applications. Processor resources can be expanded incrementally with the CPU Activation feature, which supports adding processor resources one core at a time. Its SPARC64 X (“ten”) processor was developed to deliver dramatic high-speed performance by implementing instructions in hardware that accelerate key software-on-chip functions. The Fujitsu M10-1 server enables highly flexible system configuration with two no-cost virtualization technologies: Oracle VM Server for SPARC and the Oracle Solaris Zones feature of Oracle Solaris.

Keep Pace with Expanding Needs

The Fujitsu M10-1, server with the industry-leading Oracle Solaris operating system, was designed to help IT managers reduce TCO, rapidly deploy new business services, and consolidate existing distributed systems more cost-effectively and reliably than ever. IT managers can take advantage of enterprise-class reliability, availability, and scalability (RAS) features in a 1U box and can incrementally grow and configure their business processes exactly as needed—meaning no wasted resources, just improved utilization that will meet their IT needs now and into the future.

Consolidate and Lower IT Costs

The compact and flexible Fujitsu M10-1 server delivers greatly improved business efficiency. IT managers can consolidate many entry-level servers onto one Fujitsu M10-1 server and reduce space and power consumption. In addition to providing eco-efficiencies and mainframe-class reliability features, the Fujitsu M10-1 server is easy to manage and includes two no-cost virtualization technologies. Combined with Oracle and partner service offerings, it enables customers to shorten their time to market and capture new revenue streams while dramatically improving throughput, energy efficiency, and service-level predictability at reduced costs.

Part No. 7105498
Manufacturer Fujitsu
Preceeded By Oracle Fujitsu M3000
Rack Units 1 RU
Height 42.5
Width 431.0
Depth 721.0
Weight [Kg] 18.00


  • UL60950-1, 2nd edition + A1
  • CSA C22.2 No. 60950-1-07 + A1
  • EN60950-1:2006 + A1:2010 +A2:2011
  • IEC60950-1:2005, 2nd edition + A1:2009 (evaluated to all CB countries)
  • CFR21 Part 1040
  • IEC60825-1
  • IEC60825-2
  • CB Scheme with all country deviations
  • CNS14336
  • GB4943.1-2011
  • S-Mark
  • GOST-R certification mark


  • EN55022:2010
  • VCCI (2012)
  • FCC Part-15 (2012)
  • CNS13438:2006 (CISPR 22:2005 +A1:2005)
  • KCC
  • GOST-R certification mark
  • S-Mark
  • EN61000-3-2:2006 + A1:2009 + A2:2009
  • EN61000-3-3:2008
  • JIS C 61000-3-2 (2011)
  • ICES-003 Class A
  • AS/NZS CISPR 22 (2009)
  • GB9254-2008
  • GB17625.1-2003
  • CISPR 22:2008


  • EN55024:2010
  • IEC61000-4-2
  • IEC61000-4-3
  • IEC61000-4-4
  • IEC61000-4-5
  • IEC61000-4-6
  • IEC61000-4-8
  • IEC61000-4-11


  • EN 300 386 V1.4.1 (2008)
CPU Socket(s) 1
Compatible CPU(s) SPARC64 X: 16-core, dual-threaded SPARC V9 architecture, error-correcting code (ECC)–protected
Max CPU Clk Spd 2.8 GHz
CPU Cache L1: 64 K data cache and 64 K Instruction cache
L2: 22 MB
Max # Thread(s) 32
Max # Core(s) 16
Memory Slot(s) 16
Memory Capacity Up to 512 GB with 32 GB DIMM
Drive Bays As many as eight 600 GB internal 2.5-in. SAS HDDs or 200 GB SAS SSDs
Capacity 4.8 TB
HDD Suitability SAS HDD or SSD
Supported OS
  • Oracle Solaris 10
  • Oracle Solaris 11
USB Port(s) 2-port USB
PCI Slot(s) Three PCI Express 3.0 short, low-profile slots (eight lanes);
As many as 23 PCI Express slots with optional PCI expansion unit
LAN Socket(s) 4-port GbE
