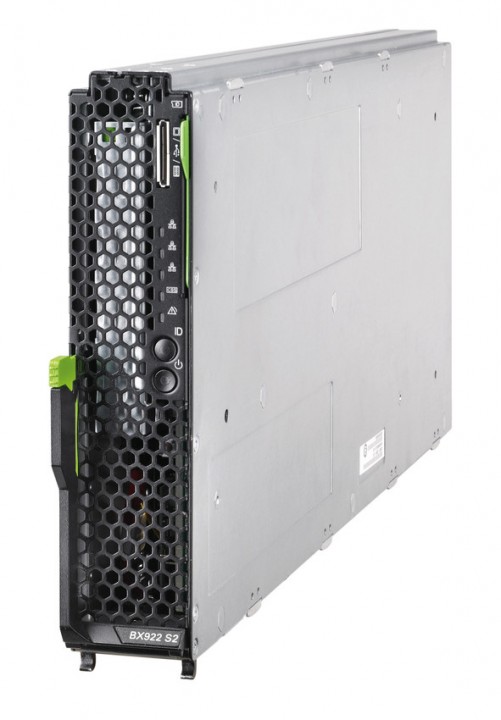

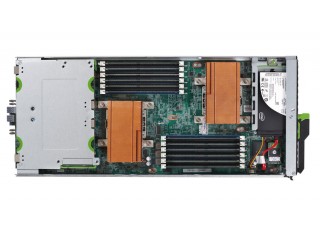

Fujitsu PRIMERGY BX922 S2 Dual-Socket Server Blade

Future-oriented Server Blade with all the prerequisites for virtualization environments


More Image(s)

The PRIMERGY BX922 S2 Server Blade uses up to two CPUs in the Intel® Xeon® processor 5000 sequence with up to 6 cores, including the first 32nm processors. Chipset and CPU offer comprehensive, hardware-based virtualisation support which is supplemented by the additional functions on the new onboard Gigabit Ethernet Controller Intel® 82576. The main memory configuration with up to 12 DIMM modules rounds off the picture - the road is open for consolidation strategies which are aligned with virtualisation with hypervisor solutions from VMware, Microsoft, RedHat, Suse or Citrix.

Availability: In stock

For details on how to purchase the Fujitsu PRIMERGY BX922 S2 Dual-Socket Server Blade, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


The design of the PRIMERGY BX922 S2 is very flexible regarding the boot options as - in addition to the increasing use of SAN or NAS - local booting via Solid State Disks and - especially for VMware ESXi - via a USB connected flash module is available. The efficient administration of the entire system via ServerView is supported by the integrated Remote Management Controller (iRMC S2); the hardware monitoring and setting options can thus be optimally visualized in order to use all options at the highest energy-efficiency levels.

Part No. S26361-K1247-V200
Manufacturer Fujitsu
Rack Units 1 Half-Height Blade
Height 210
Width 45
Depth 500
Weight [Kg] 5.75
CPU Socket(s) 1 or 2
Compatible CPU(s) Intel® Xeon® processor E5500 series / Intel® Xeon® processor E5600 series / Intel® Xeon® processor L5600 series / Intel® Xeon® processor X5600 series
Max CPU Clk Spd Up to 3.60 GHz
CPU Cache 4, 8 or 12 MB TLC
Max # Thread(s) 2, 4, 8 or 12 per CPU
Max # Core(s) 2, 4 or 6 per CPU
Memory Slot(s) 12
Memory Capacity 192 GB
Drive Bays 2 x 2.5-inch non hot-plug SATA HDD / 2.5-inch non hot-plug SATA SSD
Capacity 640 GB
HDD Suitability SSD SATA, 3Gb/s, 64GB, SLC, non hot plug, 2.5", enterprise
SSD SATA, 3Gb/s, 32GB, SLC, non hot plug, 2.5", enterprise
HDD SATA, 3Gb/s, 320GB, 5.4krpm, non hot plug, 2.5", eco
HDD SATA, 3Gb/s, 160GB, 5.4krpm, non hot plug, 2.5", eco
SATA Controller ICH10R
RAID Controller RAID 0/1 for internal drives
RAID Options 0, 1
Supported OS Microsoft® Microsoft® Hyper-V™ Server 2008 R2;
Microsoft® Windows Server® 2008 R2 Datacenter;
Microsoft® Windows Server® 2008 R2 Enterprise;
Microsoft® Windows Server® 2008 R2 Standard;
Microsoft® Windows® Small Business Server 2011 Premium Add-On;
Microsoft® Windows® Small Business Server Standard 2011;
Microsoft® Windows® Server 2008 Enterprise;
Microsoft® Windows® Server 2008 Standard;
Microsoft® Windows Server® 2003 Enterprise Edition;
Microsoft® Windows Server® 2003 Standard Edition;
VMware vSphere™ 5.0 Embedded, 5.0, 4.1, 4.1 Embedded, 4.1 Installable, 4.0, 4.0 Embedded, 4.0 Installable;
Novell® SUSE Linux Enterprise Server 11, 10, 10 with XEN;
Red Hat® Enterprise Linux 6, 5, 5 with XEN;
Citrix® XenServer®
USB Port(s) 4 x USB at the front via special cable
PCI Slot(s) 2 x BX900 Mezzanine Card PCI-Express 2.0 x8
Serial Ports 1 x RS232 (9-pin) at the front via special cable
LAN Socket(s) 4 x Gbit Ethernet via Midplane to Ethernet Connection Blade
Service LAN traffic can be switched to shared onboard Gbit LAN port
LAN Controller(s) 2 x Intel® 82576, 4 x 10/100/1000 Mbit/s Ethernet, Intel® VT-c (includes I/OAT, VMDq, VMDc = PCI-SIG SR-IOV)
Bandwidth 1 GbE
Standard 3 years
Optional 7x24, Onsite Response Time: 4h - For locations outside of EMEA please contact us.

Performance due to processor technology

  • Two Dual-Core, Quad-Core or Six-Core CPUs with Intel® Xeon® processor 5500 and 5600 series with Turbo Boost technology, Demand Based Switching, QuickPath Interconnect (QPI) and internal Memory Management Unit. The Intel® QuickPath architecture memory controllers provide the BX922 S2 with a highspeed bandwidth of up to 25 Gigabytes/second (GB/s) between the individual processors, the processors and the memory, as well as between the processors and the I/O hub.

Top virtualization support

  • Two integrated dual-channel Intel® 82576 Gb Ethernet controllers are standard. The integrated Intel® virtualization technology for connectivity contains - in addition to I/O acceleration technology and the Virtual Machine Device Queues - Single Root IO virtualization SR-IOV as well.
  • Two PCI Express 2.0 Mezzanine slots with a combination of quad-channel 1 Gb Ethernet, dual-channel 10Gb Ethernet, dualchannel 8 Gb Fibre Channel, dual-channel 10 Gb CNA (FCoE), and dual-channel 40 Gb Infiniband (QDR) offer excellent connection features via a high-performance midplane. The high server blade I/O capacity allows optimal use of various I/O protocols, ensuring smooth operations for demanding applications.

Flexible boot options

  • Various server boot options, e.g. from the network, from Hard Disk or Solid State Drives or from a USB Flash module (for VMware ESXi) make the server ideal for every application. It is an excellent platform for both virtualized and physical environments.

Worry-free administration

  • Management via the integrated Remote Management Controller (iRMC S2) enables access to each server and extensive control, even at remote locations. The integrated Pre-failure Detection and Analysis function provides reliable operations in all circumstances.
