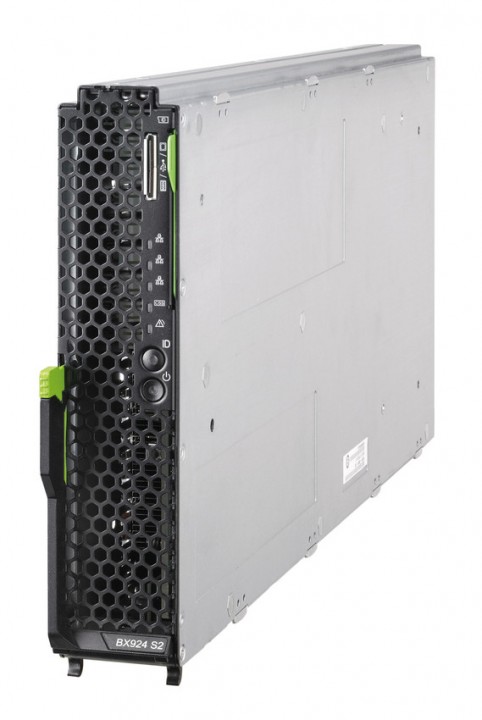

Fujitsu PRIMERGY BX924 S2 Dual Socket Server Blade
Server blade with virtualization fitness at all levels, be it compute power or I/O throughput
[S26361-K1341-V200]
More Image(s)
The PRIMERGY BX924 S2 server blade is operated by two CPUs of the Intel® Xeon® processor 5500 and 5600 series, each with up to 6 cores. Chipset and CPU provide comprehensive, hardware based virtualization support, being supplemented by additional functions of the dual port 10 Gigabit Ethernet controller Intel® 82599, integrated on motherboard.
Details
Up to 18 DIMM modules in the system allow for a scalability that was never before possible, playing into the hands of consolidation demands in the datacenter. A large amount of applications may be controlled by Hypervisor based solutions from VMware, Microsoft, RedHat, Suse or Citrix.
Although servers are being booted more and more via network, be it with iSCSI protocols and Ethernet, or SAN topologies and Fibre Channel, this system is enabled for local boot, too. This may optionally be realized by use of solid state drives that combine outstanding performance and high reliability.
For VMware ESXi the boot procedure may also be done using a USB connected Flash Module. The efficient administration of the entire system via ServerView is supported by the integrated Remote Management Controller (iRMC S2); the hardware monitoring and setting options can thus be optimally visualized in order to use all options at the highest energy-efficiency levels.
| Part No. | S26361-K1341-V200 |
|---|---|
| Manufacturer | Fujitsu |
| Rack Units | 1 Half-Height Blade |
| Height | 210 |
| Width | 45 |
| Depth | 500 |
| Weight [Kg] | 5.75 |
| CPU Socket(s) | 2 (Intel® 5500 Chipset) |
| Compatible CPU(s) | Intel® Xeon® processor E5500 series / Intel® Xeon® processor E5600 series / Intel® Xeon® processor L5600 series / Intel® Xeon® processor X5600 series |
| Max CPU Clk Spd | Up to 3.60 GHz |
| CPU Cache | 4, 8, or 12 MB Level 3 |
| Max # Thread(s) | 2, 4, 8 or 12 per CPU |
| Max # Core(s) | 2, 4 or 6 per CPU |
| Memory Slot(s) | 18 |
| Memory Capacity | 384 GB |
| Drive Bays | 2 x 2.5-inch non hot-plug SATA SSD |
| Capacity | 128 GB |
| HDD Suitability | SSD SATA, 3Gb/s, 64GB, non hot plug, 2.5", ent; SSD SATA, 3Gb/s, 32GB, non hot plug, 2.5", ent |
| SATA Controller | ICH10R |
| RAID Controller | RAID 0/1 for internal drives |
| RAID Options | 0, 1 |
| Supported OS | Microsoft® Microsoft® Hyper-V™ Server 2008 R2; Microsoft® Windows Server® 2008 R2 Datacenter; Microsoft® Windows Server® 2008 R2 Enterprise; Microsoft® Windows Server® 2008 R2 Standard; Microsoft® Windows® Small Business Server 2011 Premium Add-On; Microsoft® Windows® Small Business Server Standard 2011; Microsoft® Windows® Server 2008 Enterprise; Microsoft® Windows® Server 2008 Standard; Microsoft® Windows Server® 2003 Enterprise Edition; Microsoft® Windows Server® 2003 Standard Edition; VMware vSphere™ 5.0 Embedded, 5.0, 4.1, 4.1 Embedded, 4.1 Installable, 4.0, 4.0 Embedded, 4.0 Installable; Novell® SUSE Linux Enterprise Server 11, 10, 10 with XEN; Red Hat® Enterprise Linux 6, 5, 5 with XEN; Citrix® XenServer® |
| USB Port(s) | 4 x USB at the front via special cable |
| PCI Slot(s) | 2x PCI-Express 2.0 x8 (BX900 Mezzanine Card) |
| Serial Ports | 1 x RS232 (9-pin) at the front via special cable |
| LAN Socket(s) | 2 x 10 Gbit Ethernet via Midplane to Ethernet Connection Blade |
| LAN Controller(s) | 1 x Intel® 82599, 2 x 10 Gbit/s Ethernet, Intel® VT-c (includes I/OAT, VMDq, VMDc = PCI-SIG SR-IOV) |
| Bandwidth | 10 GbE |
| Standard | 3 years |
| Optional | 7x24, Onsite Response Time: 4h - For locations outside of EMEA please contact us. |
Others Products of Interest
Boosting application power
- Single-wide, half-high Server Blade, predestined for use as high performing application server.
- The Power Blade for Virtual Machines provides 18 slots for memory and abandons the use of magnetic disk drives.
Core technology for high performance
- Next generation Intel® platform architecture realized: Intel® QuickPath for Westmere’s integrated memory controllers (highspeed connections between microprocessors and external memory, and between microprocessors and the I/O hub).
Power consumption under control
- Next generation Intel® microarchitecture with Quad- and Six-Core CPUs of the Intel® Xeon® processor 5600 series (Westmere), based on the 32-nanometer silicon technology; includes different versions from LV up to high performance models; enabled to execute four instructions per clock cycle, simultaneous multi-threading (SMT) with 2 threads per core, up to 12 MB fully inclusive, fully shared L3 cache.
- Extended Page Table (EPT) included.
Hassle-free manageability
- Management with integrated Remote Management Controller
I/O in line with demand
- IO components: dual-channel 10 Gb Ethernet on board, 2 slots for optional mezzanine cards (quad-channel 1 Gb Ethernet, dualchannel 10 Gb Ethernet, dual-channel 8 Gb Fibre Channel, dualchannel 10 Gb CNA (FCoE), dual-channel 40 Gb Infiniband)
