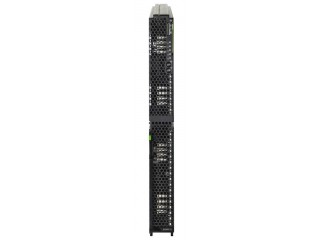

Fujitsu PRIMERGY BX960 S1 Quad Socket Server Blade
Dynamics paired with high scaling
[S26361-K1293-V200]
More Image(s)

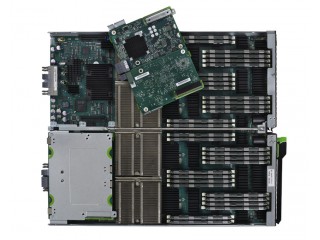

The PRIMERGY BX960 S1 server blade enables the use of the next generation Intel® Xeon® processors with up to 8 cores à two threads. In conjunction with the QuickPath architecture and the on-chip memory controllers, these processors enable a greatly increased Server Blade performance in contrast to the predecessor generations. Four of these processors can be used in the BX960 S1 Server Blade, together with up to 32 DDR3 RDIMM main memory modules and two Dual-Channel Intel 82599 based 10 Gigabit Ethernet controllers onboard. A USB flash module useable for VMware ESXi, up to two SSD data media and four Mezzanine I/O cards complete this full-height server blade (single width).
Details
The perfect alignment of processor performance, main memory capacity and I/O bandwidth makes the PRIMERGY BX960 S1 ideal, on the one hand as a consolidation platform with virtualization solutions using any market-relevant hypervisor and, on the other hand, as a server which efficiently and reliably meets the high-level requirements for database management systems for medium and large-sized databases. The integrated Remote Management Controller (iRMC S2) - in conjunction with the actual server management software optionally incl. the resource manager RCVE - offers that level of security and easy operation which is essential for operating your business critical data center applications.
Scalable performance
- Four CPUs in the Intel® Xeon® processor 7500 series with 4, 6 or 8 cores à 2 threads, 24 MB Third Level Cache, Turbo Boost Technology, Demand Based Switching and internal Memory Management Unit. The local memory controllers in the Intel® QuickPath architecture enable the BX960 S1 a high-speed bandwidth of up to 25.6 GT/s between the individual processors, the main memory and the processors as well as I/O hub and processors.
Easy to manage, secure in its operation
- The administration via the integrated Remote Management Controller (iRMC S2) enables access to individual servers and extensive control, even at remote locations as a result of the standard enclosed iRMC Advanced Pack. The integrated Pre-failure Detection and Analysis function provides reliable operations in all circumstances. Increased reliability via the Machine Check Architecture (MCA) which is used for the first time in Intel® Xeon® processors and which optimizes operation in business-critical environments in cooperation with the operating systems.
Variable system start options.
- Various server boot options, e.g. from local Solid State Disks, from a USB Flash module for VMware ESXi or via the network make the server ideal for every application. It is thus an excellent platform for both virtualized and physical environments.
High perfomance levels on the data highway
- Two onboard integrated dual-channel Intel® 82599 10 Gb Ethernet controllers with VMDq and SR-IOV support are standard. Four PCI Express 2.0 Mezzanine slots permit a combination of quadchannel 1 Gb, dual-channel 10 Gb Ethernet, dual-channel 8 Gb Fibre Channel, and dual-channel 10 Gb CNA (FCoE) with excellent connection features via the high-performance midplane of the blade server chassis. The high I/O capacity of the server blade allows optimal use of different I/O protocols, ensuring smooth operations for demanding applications.
| Part No. | S26361-K1293-V200 |
|---|---|
| Manufacturer | Fujitsu |
| Rack Units | 1 Blade Unit |
| Height | 420 |
| Width | 45 |
| Depth | 500 |
| Weight [Kg] | 12.50 |
| CPU Socket(s) | 2 or 4 [Intel® 7500 / 7500 Scalable Memory Buffer] |
| Compatible CPU(s) | Intel® Xeon® E7520 (4C/8T, 1.86 GHz); Intel® Xeon® E7530 (6C/12T, 1.86 GHz); Intel® Xeon® E7540 (6C/12T, 2.00 GHz); Intel® Xeon® L7545 (6C/12T, 1.86 GHz); Intel® Xeon® L7555 (8C/16T, 1.86 GHz); Intel® Xeon® X7542 (6C/6T, 2.66 GHz); Intel® Xeon® X7550 (8C/16T, 2.00 GHz); Intel® Xeon® X7560 (8C/16T, 2.26 GHz); |
| Max CPU Clk Spd | Up to 2.66 GHz |
| CPU Cache | Up to 24 MB Level 3 |
| Max # Thread(s) | Up to 16 per CPU |
| Max # Core(s) | 4, 6 or 8 per CPU |
| Memory Slot(s) | 32 (4 Channels per CPU, with 2 slots per Channel) |
| Memory Capacity | 512 GB |
| Drive Bays | 2 x 2.5-inch non hot-plug SATA SSD |
| Capacity | 128 GB |
| HDD Suitability | SSD SATA, 3 Gb/s, 64 GB, SLC, non hot plug, 2.5-inch, enterprise
SSD SATA, 3 Gb/s, 32 GB, SLC, non hot plug, 2.5-inch, enterprise |
| SATA Controller | ICH10R |
| Supported OS | Microsoft® Microsoft® Hyper-V™ Server 2008 R2; Microsoft® Windows Server® 2008 R2 Datacente; r Microsoft® Windows Server® 2008 R2 Enterprise; Microsoft® Windows Server® 2008 R2 Standard; Microsoft® Windows® Server 2008 Enterprise; Microsoft® Windows® Server 2008 Standard; VMware vSphere™ 5.0 Embedded; VMware vSphere™ 5.0; VMware vSphere™ 4.1; VMware vSphere™ 4.1 Embedded; VMware vSphere™ 4.1 Installable; VMware vSphere™ 4.0; VMware vSphere™ 4.0 Embedded; VMware vSphere™ 4.0 Installable; Novell® SUSE Linux Enterprise Server 11; Novell® SUSE Linux Enterprise Server 10; Novell® SUSE Linux Enterprise Server 10 with XEN; Red Hat® Enterprise Linux 6; Red Hat® Enterprise Linux 5; Red Hat® Enterprise Linux 5 with XEN; Citrix® XenServer® |
| USB Port(s) | 4 x USB at the front via special cable |
| PCI Slot(s) | 4 x BX900 Mezzanine Card |
| Serial Ports | 1 x RS232 (9-pin) at the front via special cable |
| LAN Socket(s) | 2 x Intel® 82599, 2 x 10 Gbit/s Ethernet, Intel® VT-c (includes I/OAT, VMDq, VMDc = PCI-SIG SR-IOV) |
| LAN Controller(s) | Intel® 82599 |
| Bandwidth | 10 GbE |
| Standard | 3 years |
| Optional | 7x24, Onsite Response Time: 4h - For locations outside of EMEA please contact us. |
