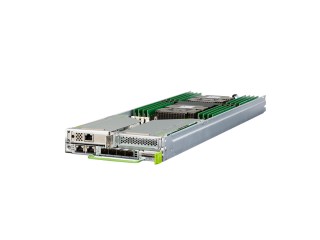

FUJITSU PRIMERGY CX2560 M4 Dual Socket Server Node

All-round server node for PRIMERGY CX400 M4

[S26361-K1617-V100]

More Image(s)

The FUJITSU Server PRIMERGY CX2560 M4 is designed to be a workhorse for data centers looking for new levels of efficiency and density in an outstanding compact form factor.
Availability: In stock

For details on how to purchase the FUJITSU PRIMERGY CX2560 M4 Dual Socket Server Node, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

delivering efficiency through shared power, cooling and management

The CX2560 M4 is well-suited for mainstream enterprise workloads, web serving, dedicated hosting, infrastructure virtualization as well as analytics thanks to the high performance of the new Intel® Xeon® Processor Scalable Family with up to 28 cores and the latest DDR4 technology supporting up to 2,048 GB of main memory.

The server node is prepared for individual future demands by offering various modular options. In addition to the basic onboard LAN, the node provides the option of using the DynamicLoM technology as well as two additional PCI Express® (PCIe) expansion slots.

The CX2560 M4 nodes are housed in the PRIMERGY CX400 M4, a 2U modular chassis that delivers the density and efficiency of bladelike servers with the simplicity and cost benefits of rack-based systems. The CX400 M4 delivers efficiency through shared power, cooling and management.

Maximize Efficiency

  • Four PRIMERGY CX2560 M4 server nodes, each with latest Intel® Xeon® Processor Scalable Family, can be smartly packaged into a condensed 2U rack enclosure.
  • Half-width, two-socket server node for PRIMERGY CX400 M4 chassis enabling highest computing density.
  • Intel® Xeon® Processor Scalable Family with up to 28 cores relying on Intel® UltraPath Interconnect for an increased data rate between the CPUs.
  • Up to 2,048 GB DDR4 memory with 2,666 MHz (16 DIMM slots).
  • Well suited for enterprise workloads, web serving, dedicated hosting, infrastructure virtualization as well as analytics.
  • Ready for the future and data growth scenarios with the performance of two processors – marking the standard of tomorrow with an increase in computing power.
  • Increased multi-tenancy and VM density for cloud application performance and parallelizable workloads.
  • High bandwidth connections for networking and memory performance.

Tailor-made IT infrastructure

  • Server nodes share central cooling, hot-plug and redundant power supply units as well as storage drives within the 2U PRIMERGY CX400 M4 chassis.
  • Flexible storage capacity: Up to 6x SAS/SATA drives, thereof 2x PCIe SSDs.
  • Basic onboard LAN, DynamicLoM technology and additional 2x PCIe Gen3 x16 slots for extended requirements.
  • Decreased energy consumption and lower investments.
  • Each single server can be serviced without affecting the other nodes in the chassis. Redundancy for shared components provides maximum reliability.
  • Wide range of connectivity options guarantees the highest flexibility to integrate the server into existing infrastructures – now and in future without overhauling the existing infrastructure.



Simplify Complexity

  • Fujitsu ServerView Suite including tools for installation and deployment, permanent status monitoring and control.
  • BIOS, firmware and selected software are updated free of charge.
  • iRMC S5 comes with new interactive web UI and conforms to Redfish providing unified API support for heterogeneous environment.
  • Enable faster IT service by automating and simplifying infrastructure operations across compute, storage and networking with ServerView Infrastructure Software Manager.
  • The comprehensive tools of the Fujitsu ServerView Suite ease the administrator’s life.
  • Providing increased security and server administrator productivity, iRMC S5 simplifies server management.
Part No. S26361-K1617-V100
Manufacturer Fujitsu
End of Life? No
CPU Socket(s) 2 x Intel® Xeon® Processor Scalable Family
Compatible CPU(s) Bronze Processor
3104 (6C, 1.70 GHz, TLC: 8.25 MB, T: 1.70 GHz, 9.6 GT/s, 2,133 MHz, 85 W);
3106 (8C, 1.70 GHz, TLC: 11 MB, T: 1.70 GHz, 9.6 GT/s, 2,133 MHz, 85 W)

Silver Processor
4108 (8C, 1.80 GHz, TLC: 11 MB, T: 2.10 GHz, 9.6 GT/s, M: 2,400 MHz, 85 W);
4110 (8C, 2.10 GHz, TLC: 11 MB, T: 2.40 GHz, 9.6 GT/s, M: 2,400 MHz, 85 W);
4112 (4C, 2.60 GHz, TLC: 8.25 MB, T: 2.90 GHz, 9.6 GT/s, M: 2,400 MHz, 85 W);
4114 (10C, 2.20 GHz, TLC: 13.75 MB, T: 2.50 GHz, 9.6 GT/s, M: 2,400 MHz, 85 W);
4116 (12C, 2.10 GHz, TLC: 16.5 MB, T: 2.40 GHz, 9.6 GT/s, M: 2,400 MHz, 85 W)

Gold Processor
5115 (10C, 2.40 GHz, TLC: 13.75 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,400 MHz, 85 W);
5118 (12C, 2.30 GHz, TLC: 16.5 MB, T: 2.70 GHz, 10.4 GT/s, M: 2,400 MHz, 105 W);
5120 (14C, 2.20 GHz, TLC: 19.25 MB, T: 2.60 GHz, 10.4 GT/s, M: 2,400 MHz, 105 W);
5122 (4C, 3.60 GHz, TLC: 16.5 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 105 W);
6126 (12C, 2.60 GHz, TLC: 19.25 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 125 W);
6128 (6C, 3.40 GHz, TLC: 19.25 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 115 W);
6130 (16C, 2.10 GHz, TLC: 22 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 125 W);
6132 (14C, 2.60 GHz, TLC: 19.25 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W);
6134M (8C, 3.20 GHz, TLC: 24.75 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 130 W);
6134 (8C, 3.20 GHz, TLC: 24.75 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 130 W);
6136 (12C, 3.00 GHz, TLC: 24.75 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W);
6138 (20C, 2.00 GHz, TLC: 27.5 MB, T: 2.70 GHz, 10.4 GT/s, M: 2,667 MHz, 125 W);
6140M (18C, 2.30 GHz, TLC: 24.75 MB, T: 3.00 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W);
6140 (18C, 2.30 GHz, TLC: 24.75 MB, T: 3.00 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W);
6142M (16C, 2.60 GHz, TLC: 22 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W);
6142 (16C, 2.60 GHz, TLC: 22 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W);
6148 (20C, 2.40 GHz, TLC: 27.5 MB, T: 3.10 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W);
6152 (22C, 2.10 GHz, TLC: 30.25 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W)

Intel® Xeon® Platinum Processor
8153 (16C, 2.00 GHz, TLC: 22 MB, T: 2.30 GHz, 10.4 GT/s, M: 2,667 MHz, 125 W);
8160M (24C, 2.10 GHz, TLC: 33 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W);
8160 (24C, 2.10 GHz, TLC: 33 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W);
8164 (26C, 2.00 GHz, TLC: 35.75 MB, T: 2.70 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W)
Max CPU Clk Spd Up to 3.7 GHz (Turbo, cores disabled)
CPU Cache Up to 35.75 MB TLC per Socket
Max # Thread(s) Up to 52 per Socket
Max # Core(s) Up to 26 per Socket
Memory Slot(s) 16 (8 DIMMs per CPU, 6 channels with 2 slots per channel)
Memory Capacity 8 GB - 2048 GB
Memory Expansion Memory Mirroring with identical modules in both channel pairs of a bank (4 modules per bank), Rank sparing or Performance Mode with identical modules in all four channels (4 modules per bank).
Drive Bays up to 6x 2.5” SATA device can be installed in CX400 M4 and 2x M.2 device can be installed in CX2560 M4 node
Supported OS Microsoft® Hyper-V Server 2016;
Microsoft® Windows Server® 2016 Datacenter;
Microsoft® Windows Server® 2016 Standard;
Microsoft® Windows Server® 2016 Essentials;
Microsoft® Windows Storage Server 2016 Standard;
Microsoft® Hyper-V Server 2012 R2;
Microsoft® Windows Server® 2012 R2 Datacenter;
Microsoft® Windows Server® 2012 R2 Standard;
Microsoft® Windows Server® 2012 R2 Essentials;
Microsoft® Windows Storage Server 2012 R2 Standard;
VMware vSphere™ 6.5;
VMware vSphere™ 6.0;
SUSE® Linux Enterprise Server 12;
Red Hat® Enterprise Linux 7;
Red Hat® Enterprise Linux 6
USB Port(s) 2 x USB 3.0 (rear) with high density connector
PCI Slot(s) 3 x 2x for low profile and 1x for OCP Type1
LAN Socket(s) 2 / 1x Gbit/s Ethernet + 1x service LAN Onboard
LAN Controller(s) Optional DynamicLoM OCP adaptors:
4 x 1 Gbit/s Ethernet (RJ45)
2 x 10 Gbit/s Ethernet (RJ45)
2 x 10 Gbit/s SFP+
4 x 10 Gbit/s SFP+
Dynamic LOM can be installed in OCP slot as option
Graphics / GPU 1 x VGA (1x rear) with high density connector
Standard 3 years Onsite warranty
Optional 24x7, Onsite Response Time: 4h - For locations outside of EMEIA please contact us
