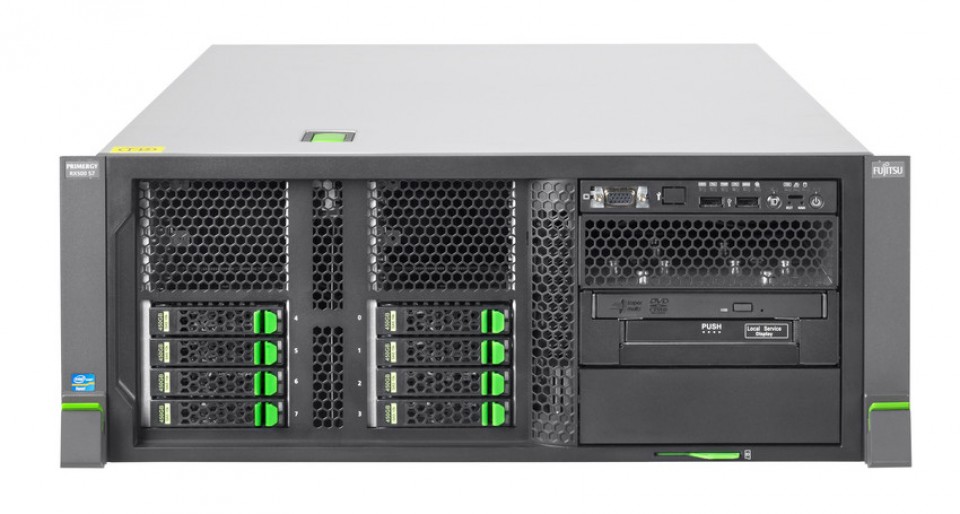

Fujitsu PRIMERGY RX500 S7 Quad Socket Rack Mount Server
Economic Scaling to 4 socket Performance
[rx500s7]The Fujitsu PRIMERGY RX500 S7 not only provides the next generation Intel® Xeon® processor E5-4600 product family with integration of the PCI Express bus and next generation Intel QPI interconnect to boost performance as well as energy efficiency. Moreover, the RX500 S7 enables new economic scale-up from 2 to 4 socket server computing by leveraging the price performance efficiency of 2 socket servers into the 4 socket performance class.
Starting with a 2 processor configuration, this 4u rack server can easily scale-up to 4 processors and double its memory up to 1536GB RAM inside the same 4U rack chassis without changing the server and rack infrastructure. Its energy conscious design and usage of low voltage memory pays dividends in superior performance per Watt and higher expandability than with 2 socket server standards.
Details
Part No. | rx500s7 |
---|---|
Manufacturer | Fujitsu |
Rack Units | 4 U |
Height | 176 |
Width | 482.6 |
Depth | 767.4 |
Weight [Kg] | 35.00 |
CPU Socket(s) | 2 or 4 x Intel® Xeon® processor E5-4600 |
Compatible CPU(s) | Intel® Xeon® E5-4603 (4C/8T, 2.00 GHz, TLC: 10 MB, 6.4 GT/s, 1066 MHz, 95 W) Intel® Xeon® E5-4607 (6C/12T, 2.20 GHz, TLC: 12 MB, 6.4 GT/s, 1066 MHz, 95 W) Intel® Xeon® E5-4610 (6C/12T, 2.40 GHz, TLC: 15 MB, 7.2 GT/s , 1333 MHz, 95 W) Intel® Xeon® E5-4617 (6C/6T, 2.90 GHz, TLC: 15 MB, 7.2 GT/s , 1600 MHz, 130 W) Intel® Xeon® E5-4620 (8C/16T, 2.20 GHz, TLC: 16 MB, 7.2 GT/s , 1333 MHz, 95 W) Intel® Xeon® E5-4640 (8C/16T, 2.40 GHz, TLC: 20 MB, 8.0 GT/s , 1600 MHz, 95 W) Intel® Xeon® E5-4650 (8C/16T, 2.70 GHz, TLC: 20 MB, 8.0 GT/s , 1600 MHz, 130 W) Intel® Xeon® E5-4650L (8C/16T, 2.60 GHz, TLC: 20 MB, 8.0 GT/s , 1600 MHz, 115 W) |
Max CPU Clk Spd | Up to 2.9 Ghz |
CPU Cache | Up to 20 MB per CPU (TLC) |
Max # Thread(s) | Up to 16 per CPU (64 per Machine) |
Max # Core(s) | Up to 8 per CPU (32 per Machine) |
Memory Slot(s) | 48 (12 DIMMs per CPU, 4 channels with 3 slots per channel) |
Memory Capacity | 8 GB - 1536 GB |
Memory Expansion | Max. 8 memory modules/CPU with quad-rank RDIMM; max. 12 memory modules/CPU with single or dual-rank
RDIMM or single, dual-rank or quad-rank Load-Reduced (LR) DIMM. Memory Mirroring with identical modules in both channel pairs of a bank (4 modules per bank), Rank sparing or Performance Mode with identical modules in all four channels (4 modules per bank). |
Drive Bays | 8x 2.5” SAS/SATA HDD/SSD |
Capacity | Up to 7.2 TB |
HDD Suitability | SSD SATA, 6 Gb/s, 400 GB, MLC, hot-plug, 2.5-inch, enterprise SSD SATA, 6 Gb/s, 200 GB, MLC, hot-plug, 2.5-inch, enterprise SSD SATA, 6 Gb/s, 100 GB, MLC, hot-plug, 2.5-inch, enterprise SSD SAS, 6 Gb/s, 400 GB, SLC, hot-plug, 2.5-inch, enterprise SSD SAS, 6 Gb/s, 200 GB, SLC, hot-plug, 2.5-inch, enterprise SSD SAS, 6 Gb/s, 100 GB, SLC, hot-plug, 2.5-inch, enterprise HDD SAS, 6 Gb/s, 900 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise HDD SAS, 6 Gb/s, 600 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise HDD SAS, 6 Gb/s, 450 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise HDD SAS, 6 Gb/s, 300 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise HDD SAS, 6 Gb/s, 300 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise HDD SAS, 6 Gb/s, 146 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise |
SATA Controller | Intel® C600, 1 x SATA channel for ODD |
RAID Controller | 4 port for internal 3G SATA HDDs with RAID 0/1/10 (Intel® C600) |
RAID Options | RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU (based on LSI SAS2208) |
Supported OS | Microsoft® Hyper-V Server 2012 Microsoft® Windows Server® 2012 Datacenter Microsoft® Windows Server® 2012 Standard Microsoft® Hyper-V™ Server 2008 R2 Microsoft® Windows Server® 2008 R2 Datacenter Microsoft® Windows Server® 2008 R2 Enterprise Microsoft® Windows Server® 2008 R2 Standard Microsoft® Windows HPC Server® 2008 R2 Suite Microsoft® Windows® Server 2008 Datacenter Microsoft® Windows® Server 2008 Enterprise Microsoft® Windows® Server 2008 Standard VMware vSphere™ 5.0 Embedded VMware vSphere™ 5.0 Novell® SUSE Linux Enterprise Server 11 Novell® SUSE Linux Enterprise Server 10 Novell® SUSE Linux Enterprise Server 10 with XEN Red Hat® Enterprise Linux 6 Red Hat® Enterprise Linux 5 Red Hat® Enterprise Linux 5 with XEN Citrix® XenServer® |
USB Port(s) | 7 x USB 2.0 (2x front, 2x rear, 1x internal for backup devices, 1x USB stick and USSD) |
PCI Slot(s) | 9 x Full height (here of 1 is reserved for Modular RAID controller) PCI-Express 3.0 x8 2 x Full height PCI-Express 3.0 x16 |
Serial Ports | 1 x serial RS-232-C, usable for iRMC or system or shared |
LAN Socket(s) | 2 1 x dedicated management LAN port for iRMC S3 (10/100/1000 Mbit/s) Front management LAN port as option Service LAN traffic can be switched to shared onboard Gbit LAN port or optional Modular LAN 2x10Gbit controller |
