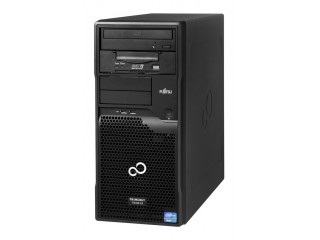

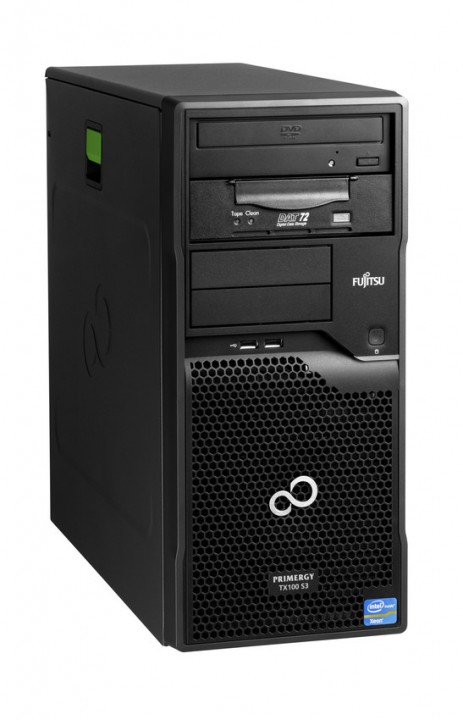

Fujitsu PRIMERGY TX100 S3 Tower Server
Ideal for SME's looking for a 1st server with Xeon® support.
[tx100s3]
The PRIMERGY TX100 S3 is ideal for SMEs, looking for a first server with Intel® Xeon® support. With a maximum of 32GB of RAM, and excellent processor performance, it offers more than enough performance for all classic server tasks, such as file, print, web or office applications. The dual onboard gigabit LAN, makes it easier to do business 24x7. Moreover, the TX100 S3 is incredibly silent making it an excellent choice for any office environment. With its optional zero Watt functionality and a choice of two highly efficient power supply units, the TX100 S3 minimizes costs and the environmental impact.
Availability: In stock
Details
- An excellent first server for SMEs looking for Intel® Xeon® support and up to 32GB of RAM. Great price-performance ratio - ideal for all classic server tasks like file, print, web or office applications.
- Choose between a power supply unit (PSU) with 85% efficiency or with 94% energy efficiency and 0-Watt functionality.
- Benefit from Fujitsu’s pioneering experience in Green IT - save money and minimize the environmental impact.
- Low noise levels for effective air flow design ensures a silent system for an ergonomic working environment.
- Dual onboard gigabit LAN, ECC memory and optional SATA RAID 5/6 with BBU, to keep business processes going - 24x7.
- Halogen-free printed circuit board for environmentally friendly waste disposal.
PRIMERGY TX tower servers are ideal for use in SMEs or branch offices. They increase operational efficiency by providing rock solid, record-breaking, energy efficient performance. That performance is built on 20-years of pioneering work in Green IT. As a customer, you benefit from a reduction in your organization’s environmental impact and lower running costs. The reliability is proven by testing the machines through 5000 boot cycles – far more than other vendors do. PRIMERGY TX servers are also easy to manage via the PRIMERGY ServerView Suite, reducing IT admin workload and costs. Plus, tower to rack conversion kits are available for most TX systems, ensuring investment protection.
Part No. | tx100s3 |
---|---|
Manufacturer | Fujitsu |
Height | 395 |
Width | 419 |
Depth | 175 |
Weight [Kg] | 14.00 |
CPU Socket(s) | 1 Intel® Core™ or Xeon® |
Compatible CPU(s) | Intel® Core™ i3-2100 (2C/4T, 3.10 GHz, TLC: 3 MB); Intel® Core™ i3-2120 (2C/4T, 3.30 GHz, TLC: 3 MB); Intel® Pentium® G620 (2C/2T, 2.60 GHz, TLC: 3 MB); Intel® Xeon® E3-1220 (4C/4T, 3.10 GHz, TLC: 8 MB); Intel® Xeon® E3-1230 (4C/8T, 3.20 GHz, TLC: 8 MB); Intel® Xeon® E3-1240 (4C/8T, 3.30 GHz, TLC: 8 MB) |
Max CPU Clk Spd | Up to 3.30 GHz |
CPU Cache | 3 or 8 MB per CPU |
Max # Thread(s) | 2, 4 or 8 per CPU |
Max # Core(s) | 2 or 4 per CPU |
Memory Slot(s) | 4 |
Memory Capacity | 32 GB |
Drive Bays | 4x 3.5” easy change SATA |
Capacity | Up to 8.0 TB |
HDD Suitability | HDD SATA, 3 Gb/s, 2000 GB, 7200 rpm, non hot plug, 3.5", business critical; HDD SATA, 3 Gb/s, 1000 GB, 7200 rpm, non hot plug, 3.5", business critical; HDD SATA, 3 Gb/s, 500 GB, 7200 rpm, non hot plug, 3.5", business critical; HDD SATA, 3 Gb/s, 250 GB, 7200 rpm, non hot plug, 3.5", economic; |
SATA Controller | Intel® C200 |
RAID Controller | 4 port SATA with RAID 0/1/ 10 for HDDs |
RAID Options | 0, 1, 10 |
Supported OS | Microsoft® Hyper-V™ Server 2008 R2 Microsoft® Windows Server® 2008 R2 Datacenter Microsoft® Windows Server® 2008 R2 Enterprise Microsoft® Windows Server® 2008 R2 Standard Microsoft® Windows Server® 2008 R2 Foundation Microsoft® Windows® Web Server 2008 R2 Microsoft® Windows® Small Business Server Essentials 2011 Microsoft® Windows® Small Business Server 2011 Premium Add-On Microsoft® Windows® Small Business Server Standard 2011 Microsoft® Windows® Server 2008 Enterprise Microsoft® Windows® Server 2008 Standard Novell® SUSE Linux Enterprise Server 11 Novell® SUSE Linux Enterprise Server 10 Red Hat® Enterprise Linux 6 Red Hat® Enterprise Linux 5 |
USB Port(s) | 9 (2x front, 6x rear, 1x internal for backup device) |
PCI Slot(s) | 1 x PCI-Express 2.0 x1 (mech. x4) 1 x PCI-Express 2.0 1 x PCI-Express 2.0 x8 (mech. x16) 1 x PCI-Express 2.0 x8 |
Serial Ports | 1 x RS232 |
LAN Socket(s) | 2 x 10/100/1000 Mbit/s Ethernet, PXE-Boot by LAN via PXE-Server, Teaming supported |
LAN Controller(s) | Intel® 82574L + Intel® 82579LM onboard |
Bandwidth | 1 GbE |
Graphics / GPU | 1 x VGA (ATI ES1000 (64MB) on board) |
Standard | 1 year, On-site Service - depending on country. |
Optional | 7x24, Onsite Response Time: 4h. |
