FUJITSU PRIMERGY TX1310 M3 Tower Server
An ideal server for your essential workloads
[S26361-K1591-V201]Details
a versatile and affordable mono-socket platform designed for Small and Medium Enterprise (SME) needs
The server features a completely new compact chassis, up to four 3.5-inch drives (40TB max.), plus data backup and networking capability to ensure that it can handle a range of essential workload and deployment requirements.
It also offers data safety during processing via ECC memory. The PRIMERGY TX1310M3 allows organizations to upgrade from standard personal computers to an affordable server class system which can operate round the clock, and help them securely consolidate their data.
Moreover, the PRIMERGY TX1310 M3 is incredibly silent making it a great choice for offices and showrooms.
The servers’ screw-less chassis and new hard disk quick-release capability also make it ideal from the ease of use and serviceability perspective.
Server class features across the entire feature set
- Enhance your storage with up to 4x 3.5-inch non-hot plug SATA storage drives (up to 40TB) and support for RDX backup devices.
- Onboard Gigabit LAN as standard.
- 4x PCIe Gen3 slots for scalability.
- Error-correcting code (ECC) memory.
- Enhanced cooling for 24x7 operation.
- Upgrade from a PC to a server with high quality drives, large storage capacity plus professional data backup.
- Transfer data with seamless, cost-effective connectivity. Additional optional networking cards are available for enhanced business specific needs.
- Protect your investment with a design having headroom for growth.
- Safety for your valuable enterprise data while it is being processed.
- Keeps your business running non stop.
Enhanced ease of use and serviceability
- Fujitsu's innovative Cool-safe ® Advanced Thermal Design technology and optimized air flow for low noise emissions.
- Innovative new compact chassis design for enhanced serviceability.
- Silent Operation and expanded range of operation (5 °C to 40 °C).

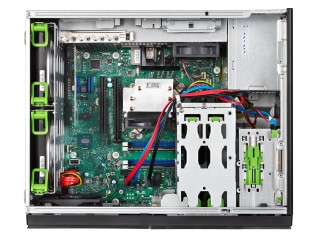

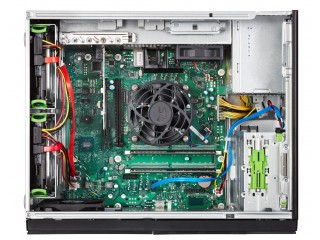

- Screw-less chassis with easy, fast and comfortable access to the interior of the server, PCIe slots and brand new cold-plug drive designs with cable less access to the hard disks.
Right sized performance
- Affordable processor choices tailored to your business needs.
- Range of Intel® Xeon ® E3-1200 v6 product family, Core™ i3, Pentium® and Celeron® processors and up to 64 GB DDR4 ECC memory (4 DIMMs).
- Ideal as a cost effective choice for many essential SME server tasks, such as file, print, web, office applications or even Industry-specific applications.
- Provides ample performance for many small and medium sized businesses.
Part No. | S26361-K1591-V201 |
---|---|
Manufacturer | Fujitsu |
End of Life? | No |
Preceeded By | TX1310 M1 |
Height | 374 |
Width | 180 |
Depth | 313 |
Weight [Kg] | 12.00 |
CPU Socket(s) | 1 x Intel® Xeon® processor E3-1200 v6 product family / Intel® Celeron® processor / Intel® Core™ i3 processor / Intel® |
Compatible CPU(s) | Celeron® processor G3930 (2C/2T, 2.90 GHz, TLC: 2 MB, T: No, 2,133 MHz, 51 W); Core™ i3-7100 processor (2C/4T, 3.90 GHz, TLC: 3 MB, T: No, 2,400 MHz, 51 W); Pentium® processor G4560 (2C/4T, 3.50 GHz, TLC: 3 MB, T: No, 2,400 MHz, 54 W); Xeon® processor E3-1205v6 (4C/4T, 3.00 GHz, TLC: 8 MB, T: 3.30 GHz, 2,400 MHz, 65 W); Xeon® processor E3-1225v6 (4C/4T, 3.30 GHz, TLC: 8 MB, T: 3.50 GHz, 2,400 MHz, 73 W); Xeon® processor E3-1245v6 (4C/8T, 3.70 GHz, TLC: 8 MB, T: 3.90 GHz, 2,400 MHz, 73 W) |
Max CPU Clk Spd | Up to 3.9 GHz (Turbo, cores disabled) |
CPU Cache | Up to 8 MB per CPU |
Max # Thread(s) | Up to 8 Threads per CPU |
Max # Core(s) | Up to 4 per CPU |
Memory Slot(s) | 4 or 2 |
Memory Capacity | 4 GB - 64 GB |
Drive Bays | 4 x 3.5-inch cold-plug SATA; 2 x 3.5-inch easy change SATA |
HDD Suitability | SATA only |
SATA Controller | Intel® C236 |
RAID Controller | 4 port SATA with RAID 0/1/10 for HDDs |
Supported OS | Microsoft® Hyper-V Server 2016; Microsoft® Windows Server® 2016 Datacenter; Microsoft® Windows Server® 2016 Standard; Microsoft® Windows Server® 2016 Essentials; Microsoft® Windows Storage Server 2016 Standard; Microsoft® Hyper-V Server 2012 R2; Microsoft® Windows Server® 2012 R2 Datacenter; Microsoft® Windows Server® 2012 R2 Standard; Microsoft® Windows Server® 2012 R2 Essentials; Microsoft® Windows Server® 2012 R2 Foundation; Microsoft® Windows Storage Server 2012 R2 Standard; Microsoft® Hyper-V Server 2012; Microsoft® Windows Server® 2012 Datacenter; Microsoft® Windows Server® 2012 Standard; Microsoft® Windows Server® 2012 Essentials; Microsoft® Windows Server® 2012 Foundation; SUSE® Linux Enterprise Server 12; Red Hat® Enterprise Linux 7 |
USB Port(s) | 8 (2x front, 4x rear, 1x internal Type A, 1x internal for backup device) (USB 3.0);3 (1x internal for UFM device, Standard: 2x rear, Basic: no rear USB2.0) (USB 2.0) |
PCI Slot(s) | 1 x Full height, up to 240 mm length |
Serial Ports | 1 x RS232 optional |
LAN Socket(s) | 1 x Gbit/s Ethernet |
LAN Controller(s) | Intel® i219 onboard;10/100/1000 Mbit/s Ethernet;PXE-Boot by LAN via PXE-Server, Teaming supported |
Graphics / GPU | VGA Extension Card |
Graphics Cards | NVIDIA® NVS™ 315, PCIe x16, 2x DVI/VGA |
Standard | 1 year Onsite Warranty |
Optional | X - Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
