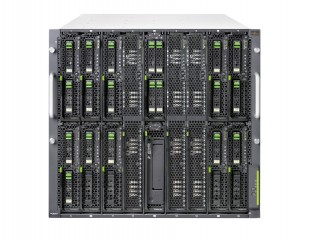

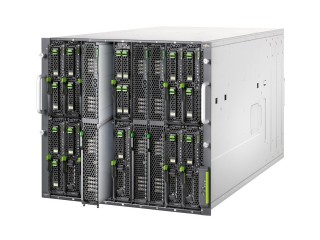

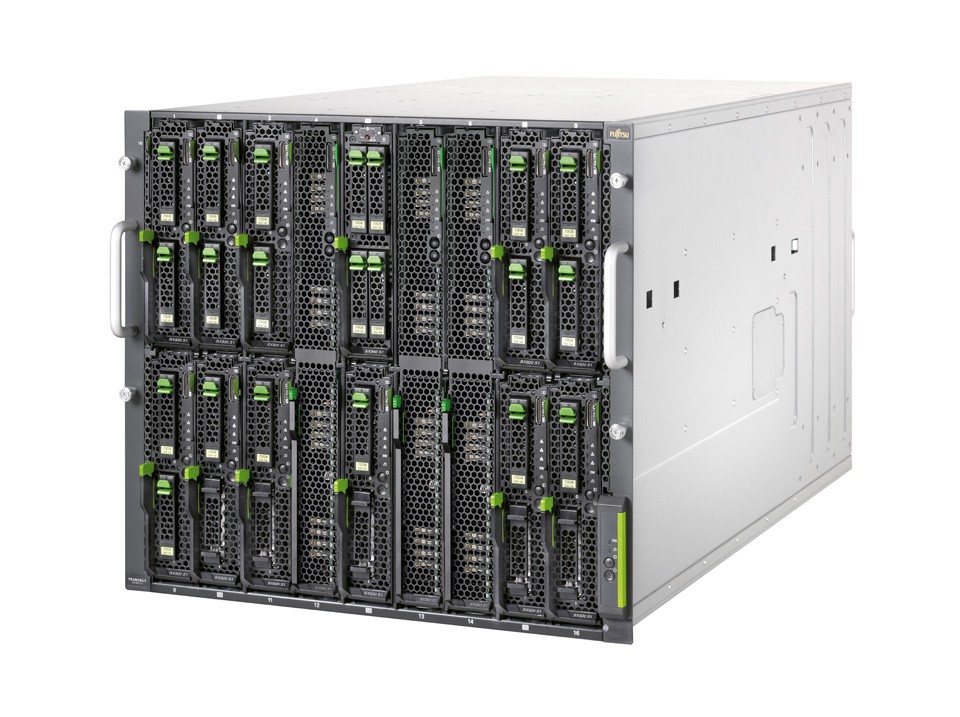

Fujitsu PRIMERGY BX900 S2 Blade Server Chassis

Elasticity for dynamic adaption to changing requirements


More Image(s)

The Fujitsu Server PRIMERGY BX900 S2 is the accelerated dynamic server infrastructure in a single cube. This blade server can be dynamically adapted to various IT requirements and provides significant economic advantages for a large and growing number of applications.

Availability: In stock

For details on how to purchase the Fujitsu PRIMERGY BX900 S2 Blade Server Chassis, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Chassis Type 10 U chassis for 19-inch rack
Blade Bays 18 half height or 9 full height bays for server or storage blades
Rear Bays 8 x for Connection Blades (2 Connection Blades per fabric)
6 x for PSU modules
Midplane High speed midplane with 4 redundant fabrics
Management Blades 1x hot-plug Management Blade as standard, redundant Management Blade as option
Fan Configuration Up to 3 additional hot plug, redundant fan modules
Power Supply Configuration Up to 6x hot-plug power supply module, 3x as minimum (4th to 6th power supply module neccessary for redundancy, and depending on system configuration)
Compatible Front Blades PRIMERGY BX2560 M1; PRIMERGY BX2580 M1; PRIMERGY BX920 S4; PRIMERGY SX960 S1; PRIMERGY SX980 S2
Compatible Rear Blades Eth FEX 10Gb 16/8;
Eth Pass Thru 10Gb 18/18;
Eth Switch/IBP/EHM 10/40Gb 18/8 + 2;
Eth Switch/IBP/EHM 1Gb 18/6;
Eth Switch/IBP/EHM 1Gb 36/12;
Eth Switch/IBP/EHM 1Gb 36/8+2;
FC Pass Thru 8Gb 18/18;
FC Switch 16Gb Brocade 14 Port;
FC Switch 16Gb Brocade 26 Port;
FC Switch 16Gb Brocade 26 Port Enterprise;
FC Switch 8Gb Brocade 14 Port;
FC Switch 8Gb Brocade 26 Port;
FC Switch 8Gb Brocade 26 Port Enterprise;
IB Switch 56Gb 18/18;
SAS Switch 6Gb 18/6
LAN Socket(s) 2 x 1Gbit/s Ethernet;
Dedicated Service LAN port for MMB (1Gb Ethernet)
Serial Ports 1 x RS-232-C
USB Port(s) 2 x (at rear side of the system)
Manufacturer Fujitsu
Part No. bx900s2
Depth 778
Width 482.6
Height 438
Rack Units 10 RU
FUJITSU Server PRIMERGY BX900 S2 Blade System
