FUJITSU PRIMERGY RX4770 M4 Quad Socket Rack Server
Power for the backend of digitalization
[S26361-K1587-V200]
More Image(s)
Details

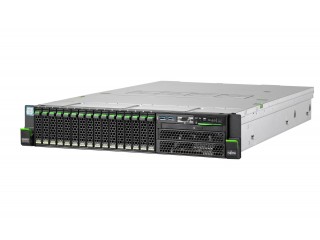

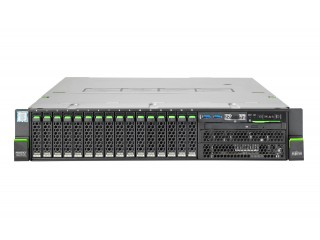

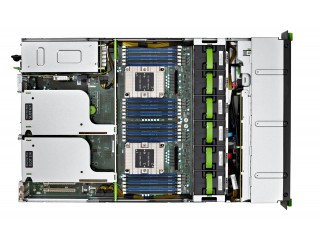

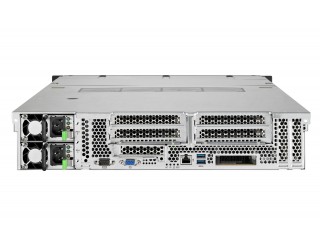

FUJITSU Server PRIMERGY RX4770 M4
The FUJITSU Server PRIMERGY RX4770 M4 is an industry-standard x86 server system with four sockets, providing superior levels of performance, scalability and efficiency. This combination turns the server into an ideal platform for running databases and transactional applications, business intelligence (BI) workloads, back-end and in-memory databases as well as other computeintensive applications. In addition, it substantially simplifies carrying out DC server optimization such as server virtualization or consolidation. Featuring the latest Intel® Xeon® Scalable Family processors with each up to 28 cores pushes this server to a whole new level of compute performance to deliver more efficient business results.
Thanks to the highly performant and superfast DDR4 memory technology with up to 6TB memory capacity along with excellent support for NVME Flash drives, the system can handle complex, data-intensive workloads such as in-memory databases like SAP HANA® and real-time business analytics even easier than the previous generation. The PRIMERGY RX4770 M4 supports 12 Gbit/s SAS/SATA controllers with optional FBU. It can either come as a 16x 2.5-inch hot-plug storage drives holding base unit or in a base unit holding a total of 12x storage drives even for directly connected PCIe SSDs.
An onboard dual-channel 10 Gbit/s Ethernet controller, together with 8 PCI-Express Gen3 slots, help to increase bandwidth for even faster timeto-business insights. With built-in redundancy and hot-pluggable components as well as advanced business-critical RAS features such as Resilient System- and Memory Technologies, the X4770 M4 provides higher availability and uptime. Virtualization and consolidation of IT resources offer many benefits but can often lead to increased expenses for server administration. Therefore the PRIMERGY RX4770 M4 delivers state-of-theart management capabilities with the latest generation integrated Remote Management Controller (iRMC S5) offering a variety of userfriendly functions to ensure a faster and more costeffective infrastructure management, no matter whether the server is located in the server-room next door or in another part of the world.
| Part No. | S26361-K1587-V200 |
|---|---|
| Manufacturer | Fujitsu |
| End of Life? | No |
| Preceeded By | RX4770 M3 |
| Rack Units | 2 |
| Height | 86.9 |
| Width | 482.6 |
| Depth | 724.8 |
| Weight [Kg] | 30.30 |
| Specification | CB; RoHS (Substance limitations in accordance with global RoHS regulations); WEEE (Waste electrical and electronical equipment) |
| CPU Socket(s) | 2 or 4 Intel® Xeon® processor |
| Compatible CPU(s) | Intel® Xeon® Gold Processor 5115 (10C, 2.40 GHz, TLC: 13.75 MB, T: 2.80 GHz, 10.4 GT/s, 2,400MHz, 85 W); 5118 (12C, 2.30 GHz, TLC: 16.5 MB, T: 2.70 GHz, 10.4 GT/s, 2,400MHz, 105 W); 5120 (14C, 2.20 GHz, TLC: 19.25 MB, T: 2.60 GHz, 10.4 GT/s, 2,400MHz, 105 W); 5122 (4C, 3.60 GHz, TLC: 16.5 MB, T: 3.70 GHz, 10.4 GT/s, 2,667MHz, 105 W); 6126 (12C, 2.60 GHz, TLC: 19.25 MB, T: 3.30 GHz, 10.4 GT/s, 2,667MHz, 125 W); 6128 (6C, 3.40 GHz, TLC: 19.25 MB, T: 3.70 GHz, 10.4 GT/s, 2,667MHz, 115 W); 6130 (16C, 2.10 GHz, TLC: 22 MB, T: 2.80 GHz, 10.4 GT/s, 2,667MHz, 125 W); 6132 (14C, 2.60 GHz, TLC: 22 MB, T: 2.80 GHz, 10.4 GT/s, 2,667MHz, 125 W); 6134M (8C, 3.20 GHz, TLC: 24.75 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 130 W); 6134 (8C, 3.20 GHz, TLC: 24.75 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 130 W); 6136 (12C, 3.00 GHz, TLC: 24.75 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 6138 (20C, 2.00 GHz, TLC: 27.5 MB, T: 2.70 GHz, 10.4 GT/s, M: 2,667 MHz, 125 W); 6140M (18C, 2.30 GHz, TLC: 24.75 MB, T: 3.00 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W); 6140 (18C, 2.30 GHz, TLC: 24.75 MB, T: 3.00 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W); 6142M (16C, 2.60 GHz, TLC: 22 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 6142 (16C, 2.60 GHz, TLC: 22 MB, T: 3.30 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 6144 (8C, 3.50 GHz, TLC: 24.75 MB, T: 4.10 GHz, 10.4 GT/s, M: 2,666 MHz, 150 W); 6146 (12C, 3.20 GHz, TLC: 24.75 MB, T: 3.90 GHz, 10.4 GT/s, M: 2,666 MHz, 165 W); 6148 (20C, 2.40 GHz, TLC: 27.5 MB, T: 3.10 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 6150 (18C, 2.70 GHz, TLC: 24.75 MB, T: 3.40 GHz, 10.4 GT/s, M: 2,667 MHz, 165 W); 6152 (22C, 2.10 GHz, TLC: 30.25 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 140 W); 6154 (18C, 3.00 GHz, TLC: 24.75 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 200 W) Intel® Xeon® Platinum Processor 8153 (16C, 2.00 GHz, TLC: 22 MB, T: 2.30 GHz, 10.4 GT/s, M: 2,667 MHz, 125 W); 8156 (4C, 3.60 GHz, TLC: 16.5 MB, T: 3.70 GHz, 10.4 GT/s, M: 2,667 MHz, 105 W); 8158 (12C, 3.00 GHz, TLC: 24.75 MB, T: 3.60 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 8160M (24C, 2.10 GHz, TLC: 33 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 8160 (24C, 2.10 GHz, TLC: 33 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 8164 (26C, 2.00 GHz, TLC: 35.75 MB, T: 2.70 GHz, 10.4 GT/s, M: 2,667 MHz, 150 W); 8168 (24C, 2.70 GHz, TLC: 33 MB, T: 3.40 GHz, 10.4 GT/s, M: 2,667 MHz, 205 W); 8170M (26C, 2.10 GHz, TLC: 35.75 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 165 W); 8170 (26C, 2.10 GHz, TLC: 35.75 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 165 W); 8176M (28C, 2.10 GHz, TLC: 38.5 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 165 W); 8176 (28C, 2.10 GHz, TLC: 38.5 MB, T: 2.80 GHz, 10.4 GT/s, M: 2,667 MHz, 165 W); 8180M (28C, 2.50 GHz, TLC: 38.5 MB, T: 3.20 GHz, 10.4 GT/s, M: 2,667 MHz, 205 W); 8180 (28C, 2.50 GHz, TLC: 38.5 MB, T: 3.20 GHz, 10.4 GT/s, M: 2,667 MHz, 205 W) |
| Max CPU Clk Spd | Up to 4.1 GHz |
| CPU Cache | Up to 38.5 MB TLC |
| Max # Core(s) | 4/6/8/10/12/14/16/18/20/22/24/26/28-Core |
| Memory Slot(s) | 48 |
| Memory Capacity | 16GB - 6TB |
| Memory Expansion | Advanced ECC; Memory Scrubbing; SDDC; DDDC (Double Device Data Correction); Memory Mirroring support; Rank sparing memory support |
| Drive Bays | up to 8 x 2.5-inch, 16 x 2.5-inch baseunit |
| HDD Suitability | SAS/SATA/PCIe |
| SATA Controller | Intel® C624, 1 x SATA channel for ODD |
| RAID Options | Fujitsu PRAID EP540i LP, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, NVMe-PCIe 8 Gbit/s (coming Q1/2018) 8 Gbit/s 16 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3516 Fujitsu PRAID EP420i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP420i for SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP400i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID CP400i, RAID Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 1E, 10, 5, 50, No FBU support |
| Supported OS | Microsoft® Hyper-V Server 2016; Microsoft® Windows Server® 2016 Datacenter; Microsoft® Windows Server® 2016 Standard; Microsoft® Hyper-V Server 2012 R2; Microsoft® Windows Server® 2012 R2 Datacenter; Microsoft® Windows Server® 2012 R2 Standard; VMware vSphere™ 6.5; VMware vSphere™ 6.0; SUSE® Linux Enterprise Server 12; SUSE® Linux Enterprise Server 11; Red Hat® Enterprise Linux 7; Red Hat® Enterprise Linux 6; Oracle® Linux 7; Oracle® Linux 6 |
| USB Port(s) | 5 x USB 3.0 (2x front, 2x rear, 1x internal) |
| PCI Slot(s) | 8 x whereas 4x full height and 4x low profile with up to 167mm length |
| Serial Ports | 1 x RS-232-C |
| LAN Socket(s) | Intel® C624 4x 1 Gbit/s Ethernet (RJ45) 2 x 10 Gbit/s Ethernet (RJ45) 2x 10 Gbit/s SFP+ 4x 10 Gbit/s SFP+ All supported features are described in relevant system configurator. Wake-on-LAN supported on onboard Port 1 and 2. PXE-Boot via LAN from PXE server, iSCSI / FCoE boot (also diskless). Extra LAN controller(PCIe Cards) are listed below. (i210 LAN card via project release possible) |
| Graphics / GPU | 2 x VGA (1 x front, 1 x rear) |
| Standard | 3 years Onsite warranty |
| Optional | Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time 24x7, 4h Onsite Response Time |
