Details

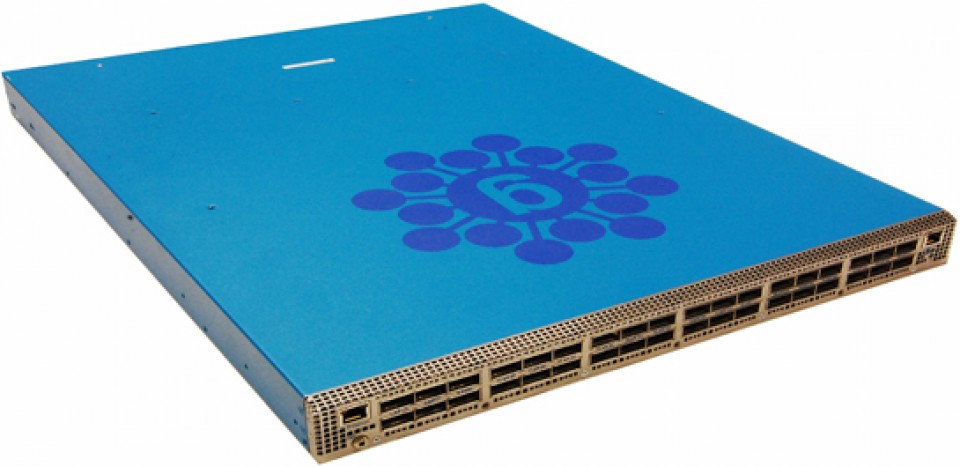

36 x 40 GbE QSFP ports in 1RU with latency sub 285ns
High Port Count
36 QSFP ports, 1RU top-of-rack Ethernet switch provides 40 GbE server/storage connections at minimal cost.
Ultra-low Latency
Sub 285ns port-to-port with extremely low jitter making it ideal for latency sensitive applications.
High Throughput
2.9 Tb/s non-blocking throughput and a forwarding capacity exceeding 2.15 Bpps. Ideal for bandwidth hungry, data-intensive applications in High Performance Data Centers.
Scalability to Thousands of Ports
Unique top-of-rack switch fabric device with 40 GbE support, arbitrarily wide link aggregation and MAC addressing up to 52 million entries. Used in conjunction with the GS4008, it provides a unique and rich fabric building block for a fully connected fabric of 1440 10 GbE ports with 414ns port-to-port latency.
Layer2+
Service differentiation, lossless transmission, highly efficient multicast and unicast increases overall application efficiency.
Ease of Operation
Reliability and serviceability are ensured with self-healing network and hot-swappable, redundant PSUs and fans. Single point management enables multiple switches to be managed as a unified fabric.
Standardization
QSFP fiber or copper cables, open-sourced from third-party vendors or directly from Gnodal. Support of QSFP to 4-port SFP+ converter cable enables further flexibility.
| Manufacturer | Gnodal |
|---|---|
| Part No. | GX-11201-02 |
| Width | 440 |
| Height | 44 |
| Depth | 590 |
| Weight [Kg] | 13.00 |
| Rack Units | 1 RU |
| Compliant Standards | CSA C22.2 No 60590-1/A1:2009; EN 60950-1, A1:2009+2010; IEC 60950-1, A1:2009; CB Report Including all National Deviations |
| Bandwidth | 36-port network: 2.9 Tbps non-blocking |
| Bridging | 802.1D-2004. MAC Bridges; 802.1Q-2005 Virtual Bridged LANs; 802.1AX-2008 Link Aggregation; 802.1AB-2005 Connectivity discovery; 802.1X-2004 Port-Based Authentication |
| Ports | 36 QSFP Ports |
| Port-Port Latency | 36-port 40 GbE, sub 285ns (RFC 1242 for Store and Forward) |
| IEEE Compliance | 802.3-2008 Jumbo frames up to 9k |
| Multicast | IGMP Snooping v1, v2; MLD Snooping v1 |
| Management | 1 GbE Management port (out of band); Serial Port; Single-point, multi-chassis management; Industry standard CLI Console; Multi-session Telnet, SSH with pre-defined commands; Firmware & configuration upgrade through TFTP & SFTP; TCP/IP stack IPv4; Port mir |
| SNMP | SNMP v1, v2, v3 (IPv4) Including RFC 1155, 1157, 1212, 1213, 1215, 2089, 2578, 3411, 3412, 3413, 3414, 3415, 3416, 3417, 3584 |
| Redundancy | Redundant, hot-swappable PSUs; Redundant, hot-swappable fans; Environmental self-monitoringIEEE |
| RoHS | 2011/65/EU Restriction of Certain Hazardous Substances Directive |
| Power Consumption | Maximum Power: 600W; Typical Power with Passive Copper: 450W; Typical Power with 36 x 40 GBASE-SR4: 525W |
GX-11201-12 Gnodal GS0036 1RU ToR switch, 36 QSFP 40 GbE ports. Dual hot-swap PSU, Reverse Airflow. Includes rack-mount kit and power cords.
