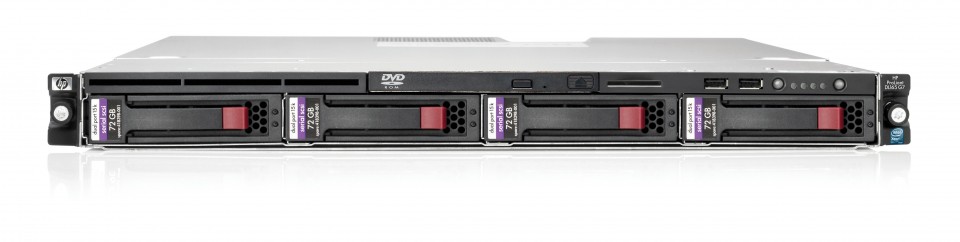

HP ProLiant DL120 G7 Rack Mount Server

ideal for single-application IT infrastructure, web and edge-of-network applications.

[628691-421; 644706-425; 628692-421; 628690-421; 470065-598]
The HP ProLiant DL120 G7 Server is an entry-level rack-optimized server providing you with all the confidence of an HP ProLiant server. The single processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications. The HP ProLiant DL120 provides two PCI-Express slots with optional upgrades, including HP HBAs and Smart Array Controllers, which provide support for SAS hard disk drives. The DL120 G7 supports HP iLO 3 Remote Management which provides cost-effective remote management from anywhere, anytime. Plus, you get the cost-effective solution of a single-processor platform with the performance advantages of quad-core technology.
Availability: In stock

For details on how to purchase the HP ProLiant DL120 G7 Rack Mount Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Low Cost Rack

• Offers lowest price point for a 1P 1U configuration in the rack server family.
• Supports a range of options ensuring it can be configured for various application demands and budget constraints.
• Affordable performance for scale-out applications and for single dedicated applications.

Lower Total Cost of Ownership

• Essential, integrated enterprise level remote management - iLO3 at an affordable price brings down the cost of server deployment, health monitoring and server power and temperature control.
• Offers the control to respond quickly to server issues remotely wherever they occur using health monitoring agents.
• Easy-access, rack-optimized 1U chassis for fast deployment and efficient maintenance.

Service and Support

• Upholds HP's reputation of dependability, by conducting some of the most rigorous and thorough testing in the industry.
• Full range of service and support for every budget including startup, installation, extended warranty, network planning, software updates and others.
• Access to HP helpdesks and service professionals for around the clock support.
Part No. 628691-421; 644706-425; 628692-421; 628690-421; 470065-598
Manufacturer HP
End of Life? Yes
Rack Units 1
Height 44.45 mm
Width 448.1 mm
Depth 700.0 mm
Weight [Kg] 11.80
CPU Socket(s) 1
Compatible CPU(s) Quad-Core Processors
Intel® Xeon® E3-1280 (3.50GHz)
Intel® Xeon® E3-1270 (3.40GHz)
Intel® Xeon® E3-1240 (3.30GHz)
Intel® Xeon® E3-1230 (3.20GHz)
Intel® Xeon® E3-1220 (3.10GHz)
Dual-Core Processors
Intel® Xeon® E3-1220L (2.2GHz)
Intel® Core™ i3-2130 (3.40GHz)
Intel® Core™ i3-2120 (3.30GHz)
Intel® Core™ i3-2100 (3.10GHz)
Intel® Pentium® G860 (3.0GHz)
Intel® Pentium® G850 (2.90GHz)
Intel® Pentium® G840 (2.80GHz)
Intel® Pentium® G630 (2.70GHz)
Intel® Pentium® G620 (2.60GHz)
Intel® Celeron® G530 (2.40GHz)
Max CPU Clk Spd Up to 3.5 GHz
CPU Cache Integrated 1x8MB Level3 Intel® Smart Cache
Integrated 1x3MB Level3 Intel® Smart Cache
Max # Core(s) Up to 4 Core(s)
Memory Slot(s) 4
Memory Capacity 16 GB [DDR3 1333 EEC]
Drive Bays Up to 4 pluggable SATA/SAS 3.5" drives supported.
1x250GB pluggable SATA 3.5" drive ships standard.
Capacity 8.0 TB
HDD Suitability Hot Plug SAS 8.0TB (4 x 2TB) 3.5" SAS
Hot Plug SATA 8.0TB (4 x 2TB) 3.5" SATA
RAID Controller HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
RAID Options Optional: HP Smart Array P212/256MB Controller (RAID 0/1/1+0/5/5+0)
Supported OS Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES)
USB Port(s) 2 Front, 1 Internal, 4 Rear
PCI Slot(s) 1x (Standard) PCIe G2 x16 Full length, full height slot.
2x (Standard) PCIe G2 x8 Half height, low profile slot.
Serial Ports 1x Serial Port
LAN Socket(s) HP NC112i 1-Port Ethernet Server Adapter (x2)
LAN Controller(s) NC112i
Standard This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for one year from date of purchase.
Optional 3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HP Global Solution Center.
