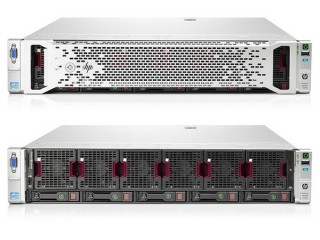

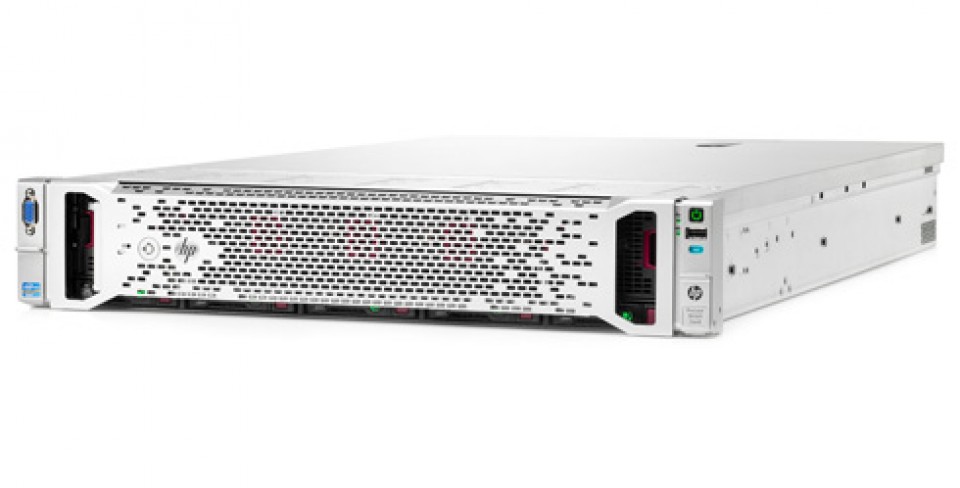

HP ProLiant DL560 Gen8 Server
4 socket, 2 U power house - powered by Intel E5-4600 processors.
[686786-421]
The HP ProLiant DL560 Gen8 is a brand new server in the ProLiant portfolio that redefines density-optimized 4-socket rack server technology without compromising on performance, scalability, and expandability. Supporting the new high-density and cost effective Intel® Xeon® E5-4600 processors, the DL560 Gen8 is ideal for virtualization, database, business processing, and general 4P data-intensive applications where optimization of data center space and price/performance is paramount.
Availability: In stock
Details
Part No. | 686786-421 |
---|---|
Manufacturer | HP |
End of Life? | No |
Rack Units | 2 RU |
Height | 87.4 |
Width | 445.5 |
Depth | 749.4 |
Weight [Kg] | 27.66 |
Specification | CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 |
CPU Socket(s) | Up to 4 Intel Xeon E5-4600 |
Compatible CPU(s) | Eight-Core Processors Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W) Processor Intel® Xeon® E5-4650L (2.6GHz/8-core/20MB/115W) Processor Intel® Xeon® E5-4640 (2.4GHz/8-core/20MB/95W) Processor Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W) Processor Six-Core Processors Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W) Processor Intel® Xeon® E5-4610 (2.4GHz/6-core/15MB/95W) Processor Intel® Xeon® E5-4607 (2.2GHz/6-core/12MB/95W) Processor Four-Core Processors Intel® Xeon® E5-4603 (2.0GHz/4-core/10MB/95W) Processor |
Max CPU Clk Spd | Up to 2.9 Ghz (8C) |
CPU Cache | 20MB (1x20MB) Level3 NOTE: E5-4650, E5-4650L, E5-4640 processors 16MB (1x16MB) Level3 NOTE: E5-4620 processor 15MB (1x15MB) Level3 NOTE: E5-4617, E5-4610 processors 12MB (1x12MB) Level3 NOTE: E5-4607 processor 10MB (1x10MB) Level3 NOTE: E5-4603 processor NOTE: All processor models above list the L3 Cache associated with that particular processor. |
Max # Thread(s) | Up to 64 (4x 16 per E5-4650) |
Max # Core(s) | Up to 32 per System |
Memory Slot(s) | 48 DDR3 LRDIMM, or RDIMM |
Memory Capacity | Up to 1.5 TB (48x 32GB RDIMM@1600MHz) |
Drive Bays | 5x SFF Drive Bays Total |
Capacity | Up to 5.0 TB (5x 1TB) |
HDD Suitability | SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652589-B21 HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652583-B21 HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652572-B21 HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652564-B21 HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652611-B21 HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652605-B21 SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652749-B21 HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652745-B21 6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 690829-B21 HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 690827-B21 HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 690825-B21 6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive 653082-B21 HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive 653078-B21 3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives HP 400GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive 653120-B21 HP 200GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive 653118-B21 HP 100GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive 653112-B21 |
RAID Controller | Entry Model HP Smart Array P420i/ZM (RAID 0/1/1+0) Base Model HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0) Performance Model HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0) |
RAID Options | RAID 0/1/1+0/5/5+0 |
Supported OS | Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer |
PCI Slot(s) | Standard 1x PCIe 3.0 x16 FL/FH 1x PCIe 3.0 x8 HL/FH 1x PCIe 2.0 x4 HL/FH Optional - 3 Slot Riser 1x PCIe 3.0 x16 FL/FH 1x PCIe 3.0 x8 HL/FH 1x PCIe 3.0 x8 HL/FH Optional - 2 Slot Riser 2x PCIe 3.0 x16 FL/FH & HL/FH |
Serial Ports | 1 |
LAN Controller(s) | 1Gb 331FLR Ethernet Adapter 4 Ports per controller or; 10Gb 530FLR-SFP+ Ethernet Adapter 2 Ports per controller; Depending on model |
Graphics / GPU | Integrated Matrox G200 video standard |
Resolution (Native) | 1280 x 1024 (32 bpp) or 1920 x 1200 (16 bpp) |
Standard | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. |
Optional | Enhancements to warranty services are available through HP Care Pack services or customized service agreements. |
