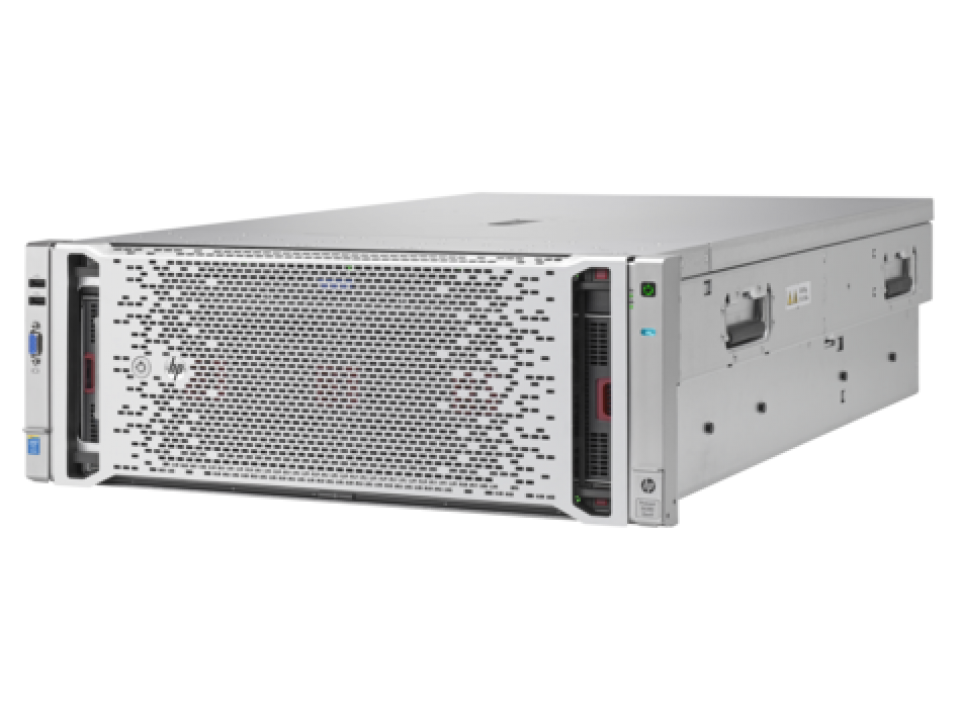

HP ProLiant DL580 Gen 9 Rack Mount Server

Commanding Four Socket Performance and Scalability

[dl580gen9]

More Image(s)

The HP ProLiant DL580 Gen9 Server provides up to 39% processor performance and 20% more cores with Intel Xeon E7-4800/8800 v3 processors than the previous generation.
Availability: In stock

For details on how to purchase the HP ProLiant DL580 Gen 9 Rack Mount Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

Part No. dl580gen9
Manufacturer HP
End of Life? No
Preceeded By DL580 Gen 8
Rack Units 4
Height 175
Width 444
Depth 736
Weight [Kg] 32.00
CPU Socket(s) 1–4 Intel Xeon E7 v3 on C602J Chipset
Compatible CPU(s) Eighteen-Core Processors
Intel® Xeon® E7-8890v3 (2.5GHz/18C/45MB/165W);
Intel® Xeon® E7-8880v3 (2.3GHz/18C/45MB/150W);
Intel® Xeon® E7-8870v3 (2.1GHz/18C/45MB/140W);
Intel® Xeon® E7-8880Lv3 (2.0GHz/18C/45MB/115W);
NOTE: This is a power optimized processor

Sixteen-Core Processors
Intel® Xeon® E7-8860v3 (2.2GHz/16C/40MB/140W);
Intel® Xeon® E7-8867v3 (2.5GHz/16C/45MB/165W);
NOTE: This is a frequency optimized processor suited high performance computing applications

Fourteen-Core Processors
Intel® Xeon® E7-4850v3 (2.2GHz/14C/35MB/115W);

Twelve-Core Processors
Intel® Xeon® E7-4830v3 (2.1GHz/12C/30MB/115W);

Ten-Core Processors
Intel® Xeon® E7-8891v3 (2.8GHz/10C/45MB/165W);
NOTE: This is a lower core, higher frequency processor for software licensing cost optimization
Intel® Xeon® E7-4820v3 (1.9GHz/10C/25MB/115W);

Eight-Core Processors
Intel® Xeon® E7-4809v3 (2.0GHz/8C/20MB/115W);

Four-Core Processors
Intel® Xeon® E7-8893v3 (3.2GHz/4C/45MB/140W);
Max CPU Clk Spd Up to 3.2 GHz
CPU Cache 45MB (1 x 45MB) Level 3 cache (E7-8890 v3, E7-8880Lv3, E7-8880v3, E7-8870v3, E7-8891v3, E7-8893v3, E7-8867v3);
40MB (1 x 40MB) Level 3 cache (E7-8860v3);
35MB (1 x 35MB) Level 3 cache (E7-4850v3);
30MB (1 x 30MB) Level 3 cache (E7-4830v3);
25MB (1 x 25MB) Level 3 cache (E7-4820v3);
20MB (1 x 20MB) Level 3 cache (E7-4809v3)
Max # Thread(s) Up to 36 per Socket
Max # Core(s) Up to 18 per Socket
Memory Slot(s) 96 DIMM slots
Memory Capacity 6TB (96 x 64GB)
Memory Expansion HP SmartMemory DDR4 Registered (RDIMM) and Load Reduced (LRDIMM)
Drive Bays Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid state drives or Express Bays (NVMe drives)
Capacity Up to 16TB (10 x 1.6TB)
HDD Suitability Hot Plug SFF SAS;
Hot Plug SFF SAS SSD;
Hot Plug SFF SATA SSD
RAID Controller HP Smart Array P830i/2G or P830i/4G FBWC Controller
Supported OS Microsoft Windows Server;
Red Hat Enterprise Linux (RHEL);
SUSE Linux Enterprise Server (SLES);
VMware
USB Port(s) 8 total: 2 front; 4 rear; 2 internal
PCI Slot(s) 9x PCIe 3.0 FH/FL
Serial Ports 1
LAN Socket(s)
HP Ethernet 1Gb 4-port 331FLR FIO Adapter 684208-B21
HP Ethernet 1Gb 4-port 366FLR FIO Adapter 684217-B21
HP FlexFabric 10Gb 2-port 533FLR-T FIO Adapter 700760-B21
HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter 700752-B21
HP FlexFabric 10Gb 2-port 556FLR-SFP+ FIO Adapter 732456-B21
HP Ethernet 10Gb 2-port 546FLR-SFP+ FIO Adapter 779800-B21
HP Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter 684218-B21
HP Ethernet 10Gb 2-port 561FLR-T FIO Adapter 700700-B21
Graphics / GPU Integrated Matrox G200 video standard
Resolution (Native) 1280 x 1024 (32 bpp); 1920 x 1200 (16 bpp)
Standard Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
