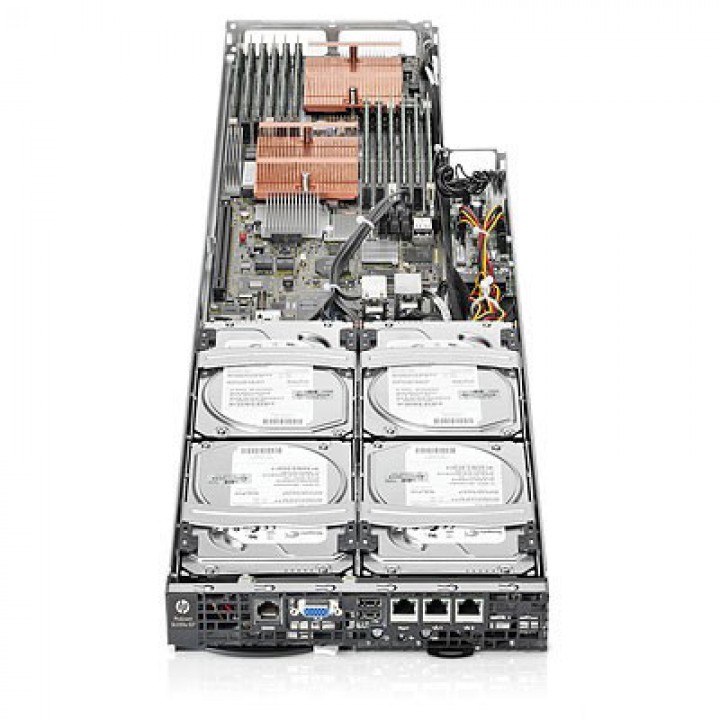

HP ProLiant SL335s G7 Blade Server

The first AMD half-width server node for the HP ProLiant SL6500 Scalable System

The HP ProLiant SL335s G7 Server is part of the latest family, the HP ProLiant SL6500 Scalable System, of HP server solutions optimized for scale-out customers to greatly reduce costs and maximize power efficiency by sharing power supplies and fans, while providing an infrastructure that is easy to access and service. Customers can deploy up to eight independent HP ProLiant SL335s G7 Servers into the 4U HP ProLiant SL6500 Chassis. The server supports up to two AMD® Opteron® processors with 12 DDR3 DIMM sockets (128 GB) and 4 large form factor (LFF) or 8 small form factor (SFF) hard drives. With the SL335s G7 Server you can redefine your data center with the high efficiency multi-node chassis which offers shared power and cooling, with front I/O cabling that is easier for servicing. The HP ProLiant SL335s G7 Server is ideal for environments needing high density compute at a low cost.
Availability: In stock

For details on how to purchase the HP ProLiant SL335s G7 Blade Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Scale without Limits

• Support for 12 DIMM slots, up to two AMD Opteron 4100 series processors and four (4) 3.5-inch (LFF) or eight (8) 2.5-inch (SFF) hard disk drives.
• Front I/O cabling designed for easy serviceability.
• Comes standard with two 1 Gb Ethernet Network Interface Cards.

Redefine Data Center Efficiency

• High efficiency, multi-node chassis with shared power supply and fan.
• Chassis uses shared cooling for higher efficiency with optional hot-plug redundancy.
• Right-sized HP ProLiant power supplies from 750 Watts at 94% efficiency to 1200 Watts at 94% efficiency.

Deploy with Confidence

• Easy Setup CD for rapid deployments.
• Highly flexible, modular configurations, with front cabling.
• Powerful integrated remote management.
Part No. 614046-B21
Manufacturer HP
End of Life? Yes
Rack Units 1 U (Half Width Tray)
Height 44.2
Width 224
Depth 895.5
Weight [Kg] 12.00
CPU Socket(s) Up to 2 (AMD® SP5100 Chipset)
Compatible CPU(s) Six-Core Processors
AMD Opteron™ 4184 (2.80GHz);
AMD Opteron™ 4176HE (2.40GHz);
AMD Opteron™ 4162EE (1.70GHz);
Quad-Core Processor
AMD Opteron™ 4130 (2.60GHz);
Max CPU Clk Spd Up to 2.80 Ghz
CPU Cache 6MB Shared Level 3
Max # Core(s) 4 or 6 per CPU
Memory Slot(s) 12
Memory Capacity 192 GB [DDR3 RDIMM or UDIMM]
Drive Bays Internal Quick-Release
Capacity Up to 12.0 TB (With Quick Release Drive Carrier)
HDD Suitability Non-Hot Plug SATA 3.5";
Non-Hot Plug SAS 3.5";
Non-Hot Plug SATA 2.5";
Non-Hot Plug SAS 2.5";
Non-Hot Plug SATA SSD 2.5";
RAID Controller HP Embedded Smart Array B110i SATA RAID Controller
RAID Options 0, 1, 10
Supported OS Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
USB Port(s) 2 (two front)
PCI Slot(s) 1x PCIe G2 x16 LP
Serial Ports 1x Serial RJ-45
LAN Socket(s) HP NC362i Integrated Dual Port Gigabit Server Adapter
LAN Controller(s) NC362i
Graphics / GPU ATI RN50/ES1000 w/ 64MB memory
Standard 1-year parts, 1-year labor, 1-year onsite (3/3/3 APJ)
Optional This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty.
614046-B21; 614045-B21
