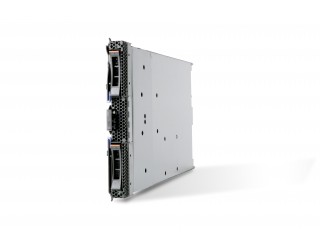

IBM BladeCenter HS22 Server
Versatile, easy-to-use blade optimised for performance, power and cooling
[ibmhs22]Details
- Improve service with superb Reliability, Availability and Serviceability (RAS) features and innovative management
- Reduce cost through increased performance, utilisation and efficiency
- Manage growth and reduce risk on a BladeCenter platform with proven stability
Built for performance
The HS22 provides outstanding performance with support for the latest Intel® Xeon® processors, high-speed input/output (I/O) and support for high memory capacity and fast memory throughput. The HS22 can run applications up to twice as fast compared to previous generation blades. In fact, you can run many applications faster than even some competitor four-socket blades.
Designed for versatility
The IBM BladeCenter HS22 offers flexible options to support a broad range of workloads, including virtualisation and enterprise applications. Along with intuitive Unified Extensible Firmware Interface (UEFI) based tools, the HS22 can be customised and deployed quickly while best-in-class reliability features help keep you up and running. Mix and match the HS22 with the industry's most diverse set of chassis and blades and that go beyond x86.
Part No. | ibmhs22 |
---|---|
Manufacturer | IBM |
Weight [Kg] | 10.00 |
CPU Socket(s) | Choice of two Intel Xeon 5600 series processors |
Max CPU Clk Spd | up to 3.60GHz |
Memory Slot(s) | 2 Twelve Double Data Rate 3 (DDR-3)Very LowProfile (VLP) Dual Inline Memory Module (DIMM)slots |
Memory Capacity | up to 192GB of total memory capacity andmemory speeds up to 1333MHz |
Drive Bays | Two hot-swap bays supporting Serial Attached SCSI (SAS) ha4i disk drives (HDDs) or solid-state drives (SSDs) |
Capacity | Up to 1.2 TeraByte (TB) total internal storage |
HDD Suitability | Support for hot-swap SAS hard disk drives (HDDs) or SSDs |
RAID Options | RAID-U, -1 and -1E (optional RAID-5 with battery- backed cache) |
Supported OS | Microsoft Windows’, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise, VMware, Oracle Solaris |
PCI Slot(s) | One ClOy slot (standard PCIe daughter card) and one CFFh slot (high-speed POle daughter card) for a total of eight ports of I/O to each blade, including four ports of high-speed I/O |
LAN Socket(s) | Virtual Fabric Adapter (10 Gigabit Ethernet (GbE)) ships integrated in some models Broadcom 5709S onboard Network Interface Card (NIC) with dual GbE ports with TCP/IP Off load Engine (TOE) |
LAN Controller(s) | Broadcom 5709S |
Bandwidth | 10 GbE |
Standard | Three-year customer replaceable unit (CRU) and on-site and off-site limited warranty |
