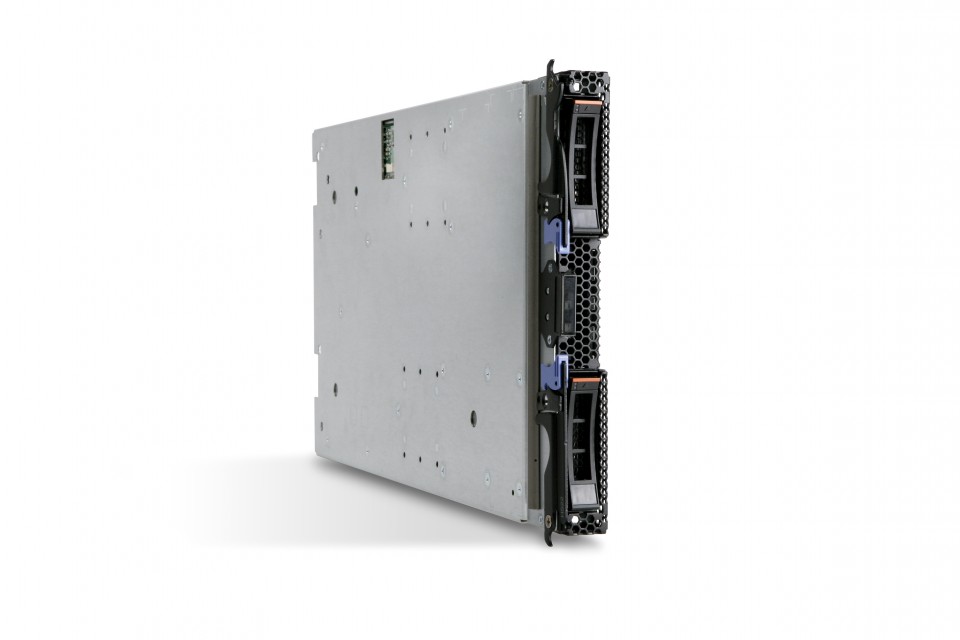

IBM BladeCenter HS23 Server

Next-generation two-socket system optimized for performance and scalable networking

[ibmhs23]
Do more in the data center you own with IBM® BladeCenter® HS23. This efficient server helps you manage big data and is ideal for a wide variety of workloads including virtualization and cloud infrastructure solutions. New integrated 10 GbE Virtual Fabric provides high network-ing bandwidth. Sixteen DIMM slots, supporting up to 256 GB of DDR3 memory, deliver more and larger virtual machines per blade compared to previous generations. Simplify infrastructure deployment and complexity for faster time-to-value with IBM FastSetup.
Availability: In stock

For details on how to purchase the IBM BladeCenter HS23 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

Outstanding perfrmance

The HS23 offers outstanding performance, with support for the new 8-core Intel Xeon processor E5-2600 product family that processes up to 16 simultaneous threads. It has fast memory throughput and integrated RAID-0, -1.

Flexible, scalable networking

The HS23 provides integrated 10 GbE Virtual Fabric, delivering increased high-speed performance and 110 flexibi1it running multiple protocols (FCoFJiSCSI), and freeing your CFFh slot to do more. Connect to any networking by choosing from a variety of adapters to suit your data center needs.

Investment protection

Protect your investment by integrating the HS2 3 into your existing infrastructure. The HS23 is backward compatible with your existing BladeCenter chassis. It supports multiple technologies enabling zero rip-and-replace, and allows you to do more now or later as your business grows.

Part No. ibmhs23
Manufacturer IBM
Weight [Kg] 9.00
CPU Socket(s) 1 or 2 Intel® Xeon® E5-2600
CPU Cache 20 MB per CPU
Max # Thread(s) 16 per CPU
Max # Core(s) Up to 8 per CPU
Memory Slot(s) 16 DIMM sockets - VLP Registered ECC DDR3, at 1333 or 1600 MHz
Memory Capacity 256 GB
Drive Bays 2 hot-swappable HDDs (SATA/SAS) or SSDs
Capacity 2 TB
RAID Options RAID-0, -1
Supported OS Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise, VMware
PCI Slot(s) 1 CIOv slot (standard PCIe daughter cards) and 1 CFFh slot (high-speed PCIe daughter card)
LAN Socket(s) Integrated Virtual Fabric for BladeCenter, Emulex BE3 Dual 10 Gb/i Gb
Bandwidth 10 GbE
Standard 3-year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available
