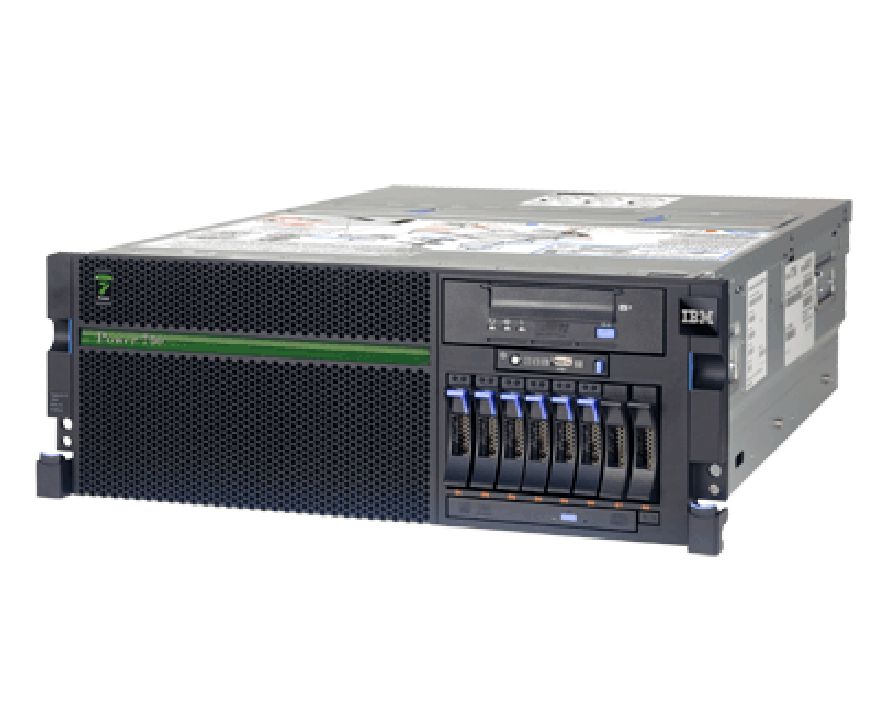

IBM Power 740 Express Rack Mount Server

High performance, reliable, expandable midsizedatabase and consolidation server


More Image(s)

The Power 740 Express is a one- or two-socket server that sup-ports up to 16 POWER7 cores in a flexible 4U rack-optimized form factor. The Power 740 offers large memory capacity, out-standing performance of the POWER7 processor, PowerVM and workload-optimizing capabilities to enable companies to get the most out of their systems by increasing utilization and performance while helping to reduce infrastructure and energy costs. The new Power 740 Express Model 8205-E6C adds increased memory capacity and additional high bandwidth Generation 2 PCI-Express slots to provide even greater performance capabilities.
Availability: In stock

For details on how to purchase the IBM Power 740 Express Rack Mount Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Power is the performance that deliversbusiness advantage

The leadership performance of the POWER7 processor makesit possible for applications to run faster with fewer processors,resulting in lower per core software licensing costs. In addition,a single system can now run more applications and reduce thenumber of required servers, lowering infrastructure costs.

Power is effortlessly balancing workload performance

POWER7 Intelligent Threads technology enables workload optimization by automatically switching between one, two and four execution threads per processor in order to optimize appli-cation throughput. In addition, Active Memoryâ„¢ Expansion is a new POWER7 technology that enables the effective maximum memory capacity to be much larger than the true physical memory without the complexity and cost of installing additional memory devices. These workload-optimising capabilities can improve application performance and ROI from the server.

Power is the ability to dynamicallyallocate resources

Take advantage of the scalability and capacity of the Power 740 Express by leveraging our industrial-strength PowerVM technology to fully utilize the system. PowerVM allows any individual LPAR to access the maximum amount of memory and CPU cores that are available on the server. PowerVM offers this capability to dynamically adjust system resources to partitions based on workload demands, enabling adynamic infrastructure that dramatically reduces server sprawl via massive consolidation of applications and servers. In addition, optional components, in PowerVM Editions, are designed to provide advanced virtualization technologies, resulting inefficiencies in resource utilization and cost savings.

Part No. 8205-E6B
Manufacturer IBM
Rack Units 4 U
Height 173
Width 440
Depth 610
Weight [Kg] 39.50
CPU Socket(s) 1 or 2
Compatible CPU(s) 4-core or 8-core 3.3 GHz or
4-core or 8-core 3.7 GHz or
6-core or 12-core 3.7 GRz or
8-core or 16-core 3.55 GHz
Max CPU Clk Spd Up to 3.7 GHz
CPU Cache Level 2 (L2) cache 256 KB per core;
Level 3 (L3) cache 4 MB per core
Max # Core(s) 4, 6, 8, 12 or 16 cores per CPU
Memory Slot(s) DDR3-RDIMM
Memory Capacity 512 GB
Drive Bays 8x 2.5" SFF Drive Bays
Capacity Up to 4.8 TB
HDD Suitability SAS or SSD
RAID Options One controller for SAS DASD/SSD and DVD- RAM Optional protected 175 MB cache with RAID 5, 6
Supported OS

Linux for POWER®

PCI Slot(s) Four PCI Express 8x plus optional four PCI Express Generation2 Low Profile
LAN Socket(s) Four virtual Ethernet 10/100/1000 Mbps ports (or) Two virtual 10 Gigabit Ethernet ports
Standard 3 year Limited Warranty, on site for selected components; CRU (customer-replaceable unit) for all other units(varies by country), Next Business Day 9x5 (excluding holidays)
Optional Warranty service upgrades and maintenance are available.
