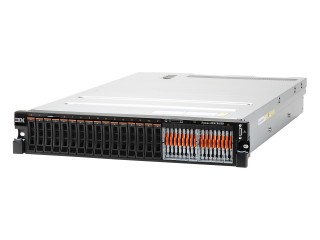

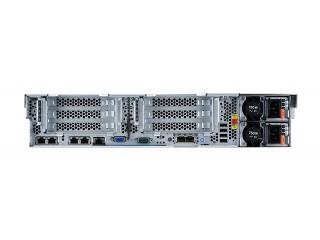

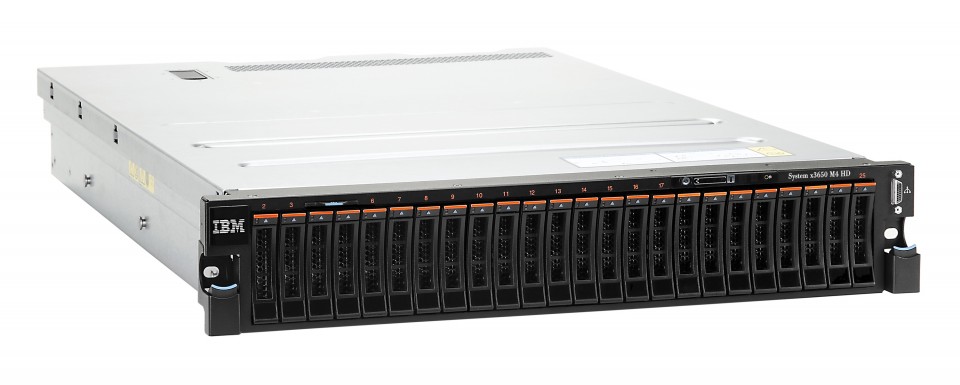

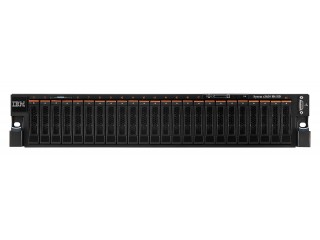

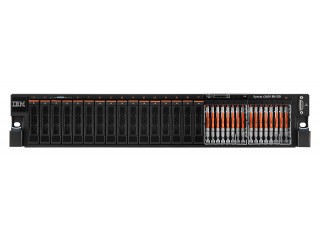

IBM System x3650 M4 HD Server

Two-socket 2U rack server with blend of performance and reliability for business-critical workloads


More Image(s)

The IBM® System x3650 M4 HD is a 2-socket 2U rack-optimized server. It supports up to 32 internal drives and features an innovative design that delivers an optimal balance of performance, uptime, and dense storage. It offers excellent reliability, availability, and serviceability (RAS) for an improved business environment. The IBM System x3650 M4 HD is designed for easy deployment, integration, service, and management.
Availability: In stock

For details on how to purchase the IBM System x3650 M4 HD Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


The x3650 M4 HD offers a flexible design that supports up to 26 2.5-inch drives (24 in the front, two accessible from the rear), or 16 2.5-inch drives and 16 1.8-inch solid-state drive bays. Combined with Intel E5-2600 v2 processors, up to 768 GB of memory, 12 Gbps SAS controllers, and up to 6 PCIe 3.0 slots, you have a system that can handle big data applications. Comprehensive systems management tools with the next-generation Integrated Management Module II (IMM2) make the server easy to deploy, integrate, service, and manage.

The x3650 M4 HD is an outstanding 2U two-socket business-critical server, offering improved performance and pay-as-you grow flexibility along with new features that improve server management capability. This powerful system is designed for your most important business applications and cloud deployments.

Combining balanced performance and flexibility, the x3650 M4 HD is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely. Ease of use and comprehensive systems management tools make it easy to deploy. Outstanding RAS and high-efficiency design improve your business environment and help save operational costs.

The x3650 M4 HD offers numerous features to boost performance, improve scalability, and reduce costs:

  • Featuring the Intel Xeon processor E5-2600 v2 product family, which improves productivity by offering superior system performance with up to 12 core per processors, core speeds up to 3.5 GHz, L3 cache up to 30 MB, and QPI interconnect links of up to 8 GTps.
  • Two processors, up to 24 cores, and 48 threads maximize the concurrent execution of multi-threaded applications.
  • Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
  • Intel Hyper-Threading Technology boosts performance for multi-threaded applications by enabling simultaneous multi-threading within each processor core, up to two threads per core.
  • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads.
  • Intel Advanced Vector Extensions (AVX) improve floating-point performance for compute-intensive technical and scientific applications.
  • Supports up to 24 Load Reduced DIMMs (LRDIMMs) of 1866 MHz DDR3 ECC memory, which provide speed, high availability, and a memory capacity of up to 768 GB (running at 1066 MHz).
  • The use of solid-state drives (SSDs) instead of, or along with, traditional hard disk drives (HDDs) can improve I/O performance. An SSD can support up to 100 times more I/O operations per second (IOPS) than a typical HDD.
  • Up to 26x 2.5-inch bays or a combination of up to 16x 2.5-inch bays and 16x 1.8-inch SSD bays provide a flexible and scalable platform to meet your increasing demands.
  • The server has four integrated Gigabit Ethernet ports and two optional 10 Gb Ethernet (or InfiniBand) ports with mezzanine cards that do not use PICe slots.
  • The server offers PCI Express 3.0 I/O expansion capabilities that improve the theoretical maximum bandwidth by 60% (8 GTps per link) compared to the previous generation of PCI Express 2.0.
  • With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E5 family. This integration helps to reduce I/O latency dramatically and increase overall system performance.
  • Support for up to two NVIDIA Quadro graphics processing units (GPUs) to maximize computing power.
Part No. x3650m4hd
Manufacturer IBM
End of Life? No
Rack Units 2 RU
Height 86
Width 445
Depth 746
Weight [Kg] 30.00
CPU Socket(s) Up to two Intel Xeon processor E5-2600 v2 product family CPUs. Two QPI links up to 8.0 GTps each. Up to 1866 MHz memory speed.
Max # Core(s) Twelve cores up to 2.7 GHz and 30 MB L3 cache;
Ten cores up to 3.0 GHz and 25 MB L3 cache;
Eight cores up to 3.3 GHz and 25 MB L3 cache;
Six cores up to 3.5 GHz and 25 MB L3 cache;
Four cores up to 3.5 GHz and 15 MB L3 cache
Memory Slot(s) Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs, UDIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1866 MHz.
Memory Capacity With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors.
With UDIMMs: Up to 128 GB with 16x 8 GB UDIMMs and two processors.
With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors.
Drive Bays Up to 26x 2.5-inch hot-swap bays supporting HDDs or SSDs (24 bays front accessible and 2 bays rear accessible); or 16x 2.5-inch HDDs/SSDs (front) plus 16x 1.8-inch SSDs (front accessible).
Capacity Up to 26 TB with 26x 1 TB NL SAS HDDs. Up to 16 TB HDD storage with 16x 1 TB NL SAS HDDs + 8 TB SSD storage with 16x 512 GB SSDs (24 TB total). An intermix of SAS/SATA is supported.
RAID Options RAID 0, 1, and 10 with integrated ServeRAID M5210e. Optional upgrades to RAID 5 and 50 are available with zero-cache, 1 GB cache without battery, or 1 GB or 2 GB flash-backed cache. Optional upgrade to RAID 6 or 60.
Supported OS Microsoft Windows Server 2012, 2008 R2 and 2008, Red Hat Enterprise Linux 6, SUSE Linux Enterprise Server 11, and VMware vSphere 5.1
USB Port(s) Up to 6 USB 2.0
PCI Slot(s) Up to six slots depending on the riser cards that are installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x8; full-height, full-length
  • Slot 2: PCIe 3.0 x8; full-height, half-length
  • Slot 3: PCIe 3.0 x8; full-height, half-length
  • Slot 4: Optional, requires second processor and second riser card
  • Slot 5: Optional, requires second processor and second riser card
  • Slot 6: Optional, requires second processor and second riser card
Optional riser cards available through CTO with PCIe x8 or PCIe x16 or PCI-X slots. Slots 1 and 2 can be replaced with two 2.5-inch hot-swap drive bays through CTO.
LAN Socket(s) Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45): Two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on an optional 10 Gb Ethernet mezzanine card (does not use a PCIe slot).
Graphics / GPU Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Standard Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Optional Optional service upgrades are available through IBM ServicePac® offerings: Four-hour or two-hour response time, eight-hour fix time, one-year or two-year warranty extension, remote technical support for IBM hardware and some IBM and third-party applications.
IBM System x3650 M4 HD
