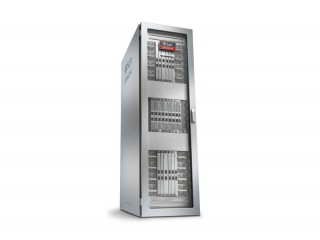

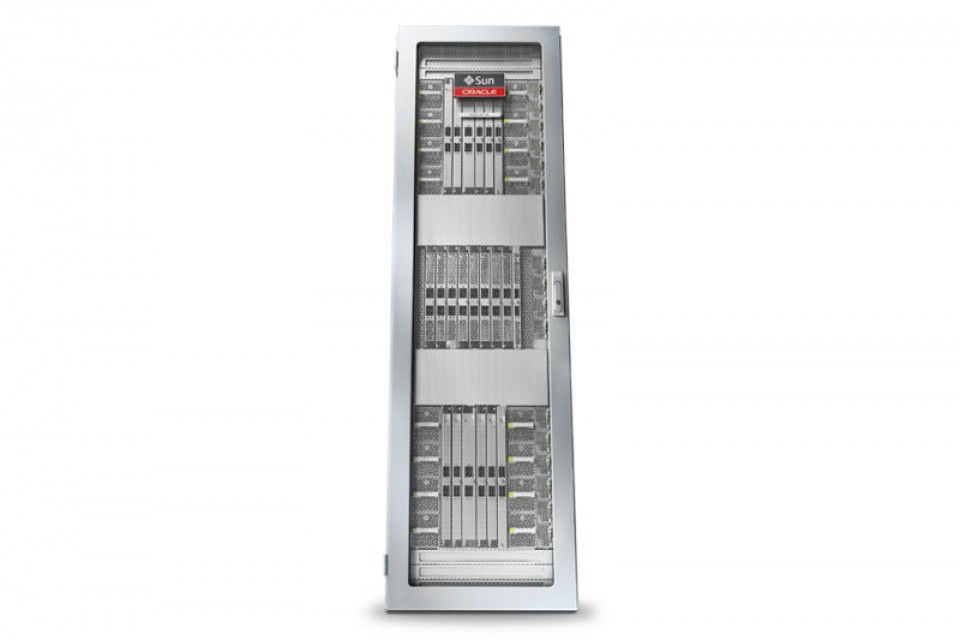

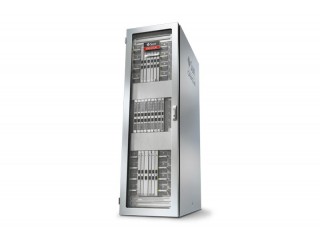

Oracle SPARC M7-16 Server

Massively Scalable, Secure, In-Memory Computing with the Highest Uptime and Capacity


More Image(s)

With a large memory footprint and high availability for running Oracle Database and enterprise applications in memory, this 16-socket server delivers extreme performance and real-time analytics. Unique, built-in security technology helps protect data against intrusions by malware and security breaches.
Availability: In stock

For details on how to purchase the Oracle SPARC M7-16 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. m7-16
Manufacturer Sun Oracle
End of Life? No
Rack Units 10
Height 438
Width 483
Depth 813
Weight [Kg] 184.00
CPU Socket(s) Four to sixteen processors per system
Compatible CPU(s) 4.13 GHz SPARC M7 processor;
Thirty-two on-chip encryption instruction accelerators with direct nonprivileged support for 15 industry-standard cryptographic algorithms: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 (one per core).
Eight accelerators per processor, each supporting four concurrent query operations with decompression;
Thirty-two floating-point units per processor (one per core);
Max CPU Clk Spd 4.13 GHz
CPU Cache Level 1: 16 KB instruction and 16 KB data per core;
Level 2: 256 KB L2 I$ per four cores, 256 KB L2 D$ per core pair;
Level 3: 64 MB L3$ on chip
Max # Thread(s) Two hundred fifty-six threads per processor (eight threads per core)
Max # Core(s) Thirty-two cores per processor
Memory Slot(s) 16 per CPU
Memory Capacity 8TB
Memory Expansion Sixteen dual inline memory modules (DIMM) slots per processor supporting half and fully populated memory configurations using either 16 or 32 GB DDR4 DIMMs
Supported OS Oracle Solaris 11.3 or later; ZFS; VM Server
PCI Slot(s) Up to 48 low-profile PCIe 3.0 ( x16) slots, each accessed via a hot-plug carrier
Standard The SPARC M7-16 server come with a one-year warranty.
Optional With Oracle Premier Support, you’ll get the services you need to maximize the return on your investment in Oracle's SPARC server. Complete system support includes 24/7 hardware service, expert technical support, proactive tools, and updates to Oracle Solaris, Oracle VM, and integrated software (such as firmware) — all for a single price.
