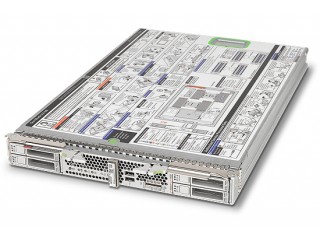

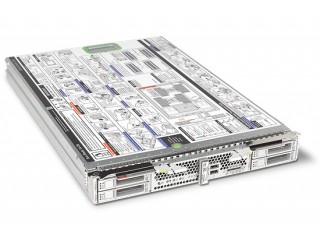

Oracle Sun Blade X4-2B Server Module

Best Blade for Building Virtualized Enterprise Cloud Infrastructure


More Image(s)

Oracle’s Sun Blade X4-2B server module is the perfect integration of compute, memory, and storage in a single full-height blade form factor for running both virtual and physical workloads. It is the industry’s unique and scalable enterprise-class two-socket x86 blade server with 24 DIMMs supporting the fastest CPU.
Availability: In stock

For details on how to purchase the Oracle Sun Blade X4-2B Server Module, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. X4-2B
Manufacturer Sun Oracle
End of Life? No
Preceeded By Sun Blade X3-2B Server Module
Rack Units 1 Blade Module
Height 327.2
Width 44.5
Depth 511.7
Weight [Kg] 9.10
Specification Safety Marks: UL;
Regulatory Marks: CE, FCC, C-tick, VCCI, BSMI, KCC, ICES-003 (A) NMB-3, WEEE Symbol, China RoHS Symbol
CPU Socket(s) 2 processors from Intel Xeon processor E5-2600 v2 product family
Compatible CPU(s) Intel Xeon E5-2600 v2 [E5-2697 E5-2690 E5-2650 E5-2630 E5-2609]
Max CPU Clk Spd Up to 3.0 GHz
CPU Cache Up to 30 MB per CPU
Max # Thread(s) Up to 24 per CPU
Max # Core(s) 4, 6, 8, 10, or 12 per CPU
Memory Slot(s) 24 DDR3 LRDIMM Slots
Memory Capacity Up to 768 GB
Memory Expansion Low voltage RDIMM options: 8 GB at 1,600 MHz and 16 GB at 1,600 MHz;
Low voltage load-reduced DIMM option: 32 GB at 1,600 MHz
Drive Bays Four 2.5-inch front hot-swappable disk bays
Capacity Up to 4.8 TB
HDD Suitability 300, 600, or 1.2 TB 10k SAS Drives
RAID Options 0, 1, 5, 6, 10, 50, and 60 with 512 MB of DDR2 onboard memory and a battery-backed write cache (BBWC) for 48-hour backup via SAS-2 RAID expansion module (REM)
Supported OS
  • Oracle Solaris (preinstalled option)
  • Oracle Linux (preinstalled option)
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • Microsoft Windows Server
USB Port(s) Six 2.0 USB ports (two front, two internal, two from dongle cable)
PCI Slot(s) Two (X8) PCIe 2.0 lanes, one to each PCIe ExpressModule (EM) slot;
Two (X8) PCIe 2.0 or two XAUI lanes, one to each NEM slot
LAN Socket(s) Two 10/100/1000 Base-T Ethernet interfaces, using an Intel Ethernet Controller I350, one to each Network Express Module (NEM) slot;
One dedicated 10/100 Base-T Ethernet port for the management network for communicating with Chassis Monitoring Module (CMM)
Graphics / GPU VGA 2D graphics controller embedded
Resolution (Native) Supports resolutions up to 1,280 x 1,024 x 16 bits @60 Hz (1,024 x 768 when viewed remotely via the Oracle ILOM remote keyboard, video, mouse, and storage [RKVMS])
Standard The Sun Blade X4-2B server module offers a one-year warranty.
