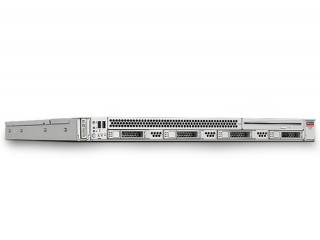

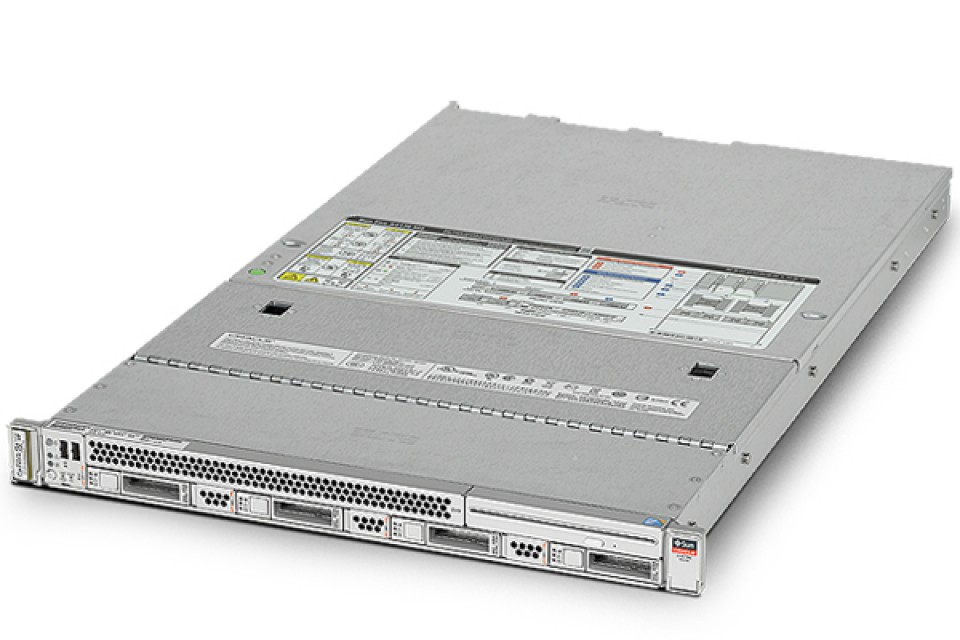

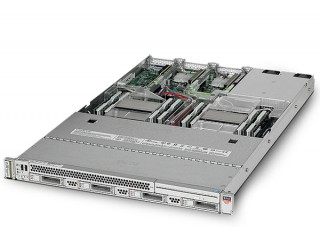

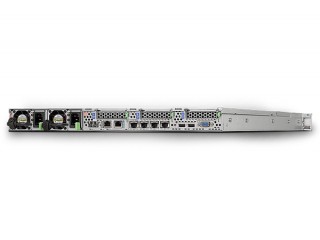

Oracle Sun Fire X4170 M3 Rack Mount Server

The 2 socket, 1 U powerhouse, now with Sandy Bridge


More Image(s)

Oracle’s Sun Fire X4170 M3 server is the most versatile two-socket server for enterprise data centers and is ideal for running Oracle software including middleware and business applications. This enterprise-class, two-socket x86 server offers the optimal balance of compute power, memory capacity, and I/O capability in a compact and energy-efficient 1U enclosure.
Availability: In stock

For details on how to purchase the Oracle Sun Fire X4170 M3 Rack Mount Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


  • Runs a broad range of data center applications and achieves best TCO and performance when combined with Oracle software and services.
  • Highest application performance and power savings with LV DIMMs running at true 1600 MHz.
  • Most scalable and flexible I/O choices with four 10 GbE ports onboard and four PCIe 3.0 expansion slots.
  • Integrated and cloud-ready life cycle management tools: Oracle Integrated Lights Out Manager, Oracle System Assistant, Oracle Hardware Management Pack, and Oracle Enterprise Manager Ops Centre.
Part No. x4170m3
Manufacturer Sun Oracle
Rack Units 1 U
Height 42.6 mm
Width 436.5 mm
Depth 736.6 mm
Weight [Kg] 18.10
CPU Socket(s) 2 Intel® Xeon® E5-2600, with QuickPath Interconnect
Compatible CPU(s) 2.4 GHz 80w 4-Core;
2.5 GHz 95w 6-Core;
2.2 GHz 95w 8-Core;
2.9 GHz 135w 8-Core;
Max CPU Clk Spd Up to 2.9 GHz
CPU Cache L1 - 32 KB;
L2 - 256 KB;
L3 - 20 MB
Max # Core(s) 4, 6 or 8 per Socket/CPU
Memory Slot(s) 16x DDR3 Low Voltage RDIMM
Memory Capacity 512 GB
Drive Bays 4x 2.5" SAS-2 HDDs or SATA SSDs; or
8x 2.5" SAS-2 HDDs or SATA SSDs; or
4x 3.5" SAS-2 HDDs
HBA Required
Supported OS Oracle Solaris10 8/11, Oracle Solaris 11, Oracle Linux 5.7 and 6.1, Oracle VM 3.0.2, Red Hat Enterprise Linux* 5.7 and 6.1, SUSE Linux Enterprise Server 11 SP1, Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2008 R2 SP1, VMware ESXi 5
USB Port(s) 2 front, 2 rear, 2 internal
PCI Slot(s) 4 total: 1 x16 external, 3 x8 (2 external, 1 internal)
LAN Socket(s) 4x 10 GbE Ports on board.
Bandwidth 10 GbE
