Oracle Sun Fire X4470 M2 Server

Best Virtualization Server for Business Applications

[417297]

More Image(s)

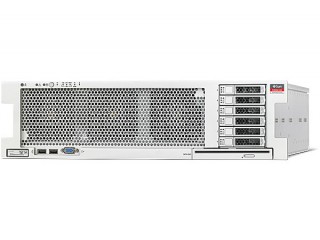

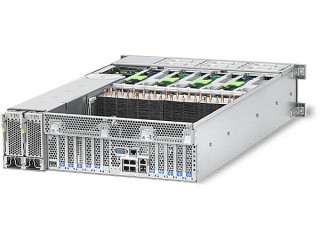

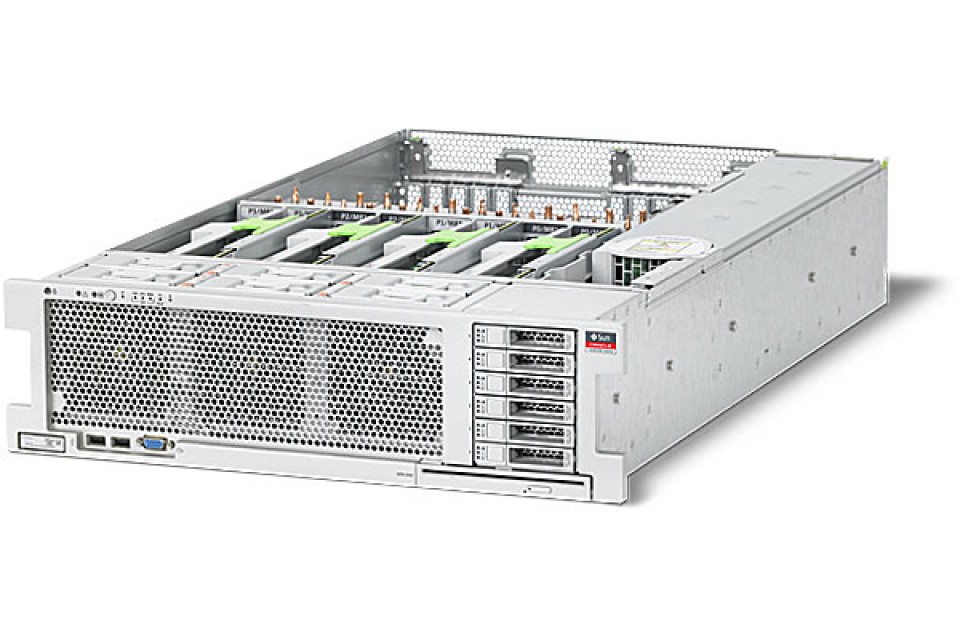

Oracle's Sun Fire X4470 M2 server is an enterprise-class, four-socket x86-based server that delivers expandability, density, and power efficiency in only 3RU. It's an ideal consolidation platform for mixed workloads.
Availability: In stock

For details on how to purchase the Oracle Sun Fire X4470 M2 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

  • Minimize real estate costs with the leading compact system design.
  • Boost application performance and reduce power consumption with Oracle’s Sun FlashFire technology.
  • Take advantage of consistent system manageability through Oracle ILOM, which is included in every system.

The Sun Fire X4470 M2 server, powered by up to four Intel Xeon processor E7-4800 product family CPUs and with up to 1 TB of memory and up to 3.6 TB of internal storage, it is the best platform for enterprise consolidation and virtualization for business applications. It is the industry’s leading compact and expandable enterprise-class 4-socket x86 server with a best-in-class performance, power efficiency, density, and a highly expandable design. It delivers outstanding virtualization capacity to increase server utilization and reduce the data center footprint through a 3 RU enclosure.

Following the previous generation server, the Sun Fire X4470 M2 continues to offer two flash integration options for application and database acceleration: Sun Flash Acceleration F20 PCIe cards and Solid State Drives (SSDs). These flash options deliver the I/O performance of up to 400 Hard Disk Drives (HDDs) turbo charging applications while eliminating bottlenecks and reducing power consumption. When compared with the previous generation system, the Sun Fire X4470 M2 Server doubles the memory to 1 TB and doubles the storage capacity to 3.6 TB, enhancing the system’s virtualization capabilities. In addition, an increase of 25% in processor cores and threads produces better performance at the same maximum CPU Thermal Design Power (TDP), making this server the densest and fastest performing in its class.

System management is simplified with Oracle Integrated Lights Out Manager (ILOM), which comes standard in every Sun Fire X4470 M2 server. Oracle ILOM centralizes system management locally or remotely to ease system configuration, software provisioning and updates providing a consistent interface across the entire x86 product line.

Part No. 417297
Manufacturer Sun Oracle
Rack Units 3 U
Height 129.9
Width 436.5
Depth 732.0
Weight [Kg] 38.50
CPU Socket(s) 2 or 4
Compatible CPU(s) Intel Xeon processor E7-4800 product family CPUs
Memory Slot(s) Up to 64 DIMMs (16 DIMMs per processor)
Memory Capacity Maximum memory capacity of 1 TB
Memory Expansion Two memory riser cards required per processor.
4GB, 8GB or 16GB DDR3 ECC Registered DIMMs
Drive Bays Six 2.5” SAS-2/SATA-2 front-accessible, hot-swappable disk bays
Capacity Up to 3.6 TB
HDD Suitability All bays can be populated with SAS-2 HDDs or SATA-2 SSDs;
Up to four optional Sun Flash Accelerator F20 PCIe cards
RAID Options Optional RAID levels : 0, 1, 1E, 10, 5, 5EE, 6 with optional Battery Backed Write Cache (BBWC) via optional HBA PCIe card
Supported OS

Oracle Solaris
Oracle Linux
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Microsoft Windows Server

USB Port(s) Five USB 2.0 ports (two front, two rear, one internal)
PCI Slot(s) Ten PCI Express (PCIe) slots: two (2) x16-lane slots; four (4) x8-lane slots; two (2) x4-lane slots or eight (8) x8-lane slots and two (2) x4-lane slots
Serial Ports One TIA/EIA-232-F asynchronous RJ-45 serial port
LAN Socket(s) Four 10/100/1000Base-T on-board Ethernet ports;
One dedicated 10/100Base-T Ethernet management port
Graphics / GPU VGA 2D graphics controller embedded
Resolution (Native) resolutions up to 1600x1200x16bits@60Hz (1024x678 when viewed remotely via Oracle ILOM RKVMS)
Standard The Sun Fire X4470 M2 server comes with a one-year warranty.
