ORION HF210 G2 High Frequency, Low Latency Trading Server

Single socket 'Ivy Bridge' Machine -- 5 GHz, and superb performance will set this HFT server apart from all others.


More Image(s)

The new ORION HF210 servers deliver unmatched performance for High Frequency Trading, and Quantitative Investing applications. Key metrics for High-Frequency Trading are latency and computing speed, or the time it takes to actually process a trade.
Availability: In stock

For details on how to purchase the ORION HF210 G2 High Frequency, Low Latency Trading Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


With the ORION HF 210 servers, advanced hardware design and optimized firmware tuning delivers unparalleled performance. The new ORION HF210 server is now available with a true remote management chip (IPMI 2.0 compliant) and a dedicated LAN port. The management tools provide an OS-independent, cross-platform interface which controls, monitors and manages your server.

The model features:

  • Single Intel® Core™ i7 Processor (4.6 to 5.2GHz)
  • Datacenter Compliant High Performance Liquid Cooling System
  • 16, 32 or 64GB of High Speed DIMM 2133MHz

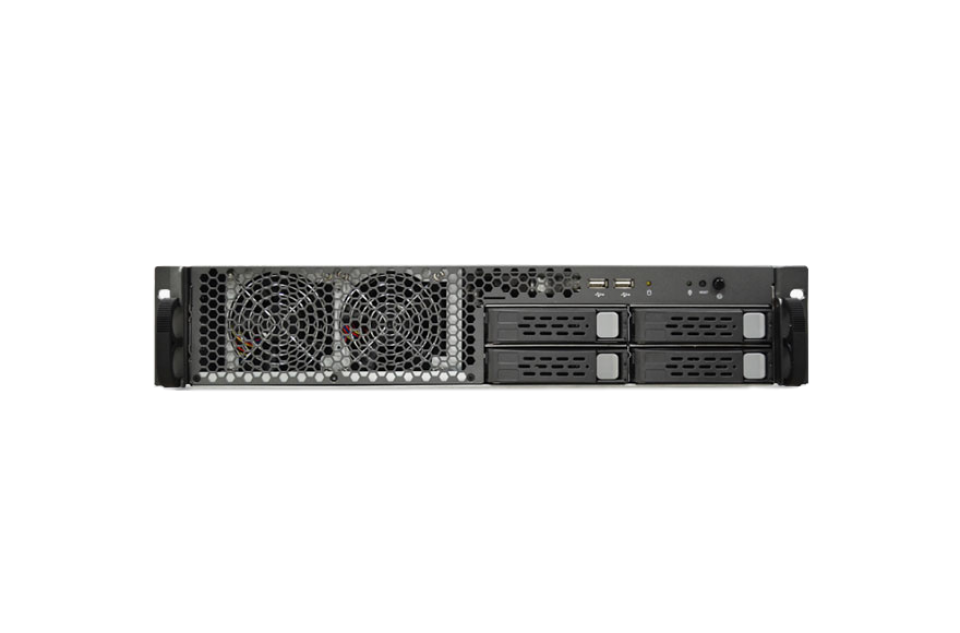

  • 4 hot-swappable hard drive bays (SATA/SSD/SAS)
  • Onboard or LSI 9211 4 Ports 6Gbps Storage Controller
  • Optional SolarFlare or Mellanox 10GigE adapters
  • Remote server management chip (BMC), IPMI 2.0 Compliant
  • 770W Redundant (1+1) High Efficiency Power SuppliesInternational
  • 3 years warranty

The new ORION HF210 offers the highest performance available today with low impact on valuable data center rack space. Its low-profile 2U (3.5") form factor enables customers to stack up to 20 ORION HF210 servers in a standard 6-foot rack and save up to 50% of rack space compared to standard 4U HF servers.

Part No. hf210
End of Life? Yes
Preceeded By HF310
Succeeded By HF320G3
Rack Units 2
Weight [Kg] 8.00
CPU Socket(s) 1
Compatible CPU(s) Intel Core i7-3960X Extreme Processor
Max CPU Clk Spd Overclocked from 4.6 to 5.2 GHz
CPU Cache 15 MB L3
Max # Thread(s) 12
Max # Core(s) 6
Memory Slot(s) 8
Memory Capacity 64 GB of 2133MHz Main Memory
Memory Expansion 4GB and 8GB DIMMS
Drive Bays 4x 2.5" hot-swap drive bays
Capacity 16 TB (with 3.5" option)
HDD Suitability SATA or SSD
SATA Controller Onboard MarvellĀ® PCIe 9230 6Gbps controller - Support Raid 0, 1, 10 (Windows)
RAID Controller Optional LSI 9211 4 Ports 6Gbps controller - Support Raid 0, 1, 5, 10 (Windows and Linux)
RAID Options 0,1,5,10
Supported OS Windows, Linux, Solaris
USB Port(s) 10 USB Total, 2 Front, 8 Rear
PCI Slot(s) 2 x PCIe 3.0/2.0 x16
LAN Socket(s) 2 x IntelĀ® I210AT Gigabit LAN Controller;
1 x LAN Gigabit Controller(s);
Validated SolarFlare or Mellanox Low Latency Single and Dual Ports 10GigE Ethernet cards
LAN Controller(s) Intel I210AT
Standard 3 Year, 5x9 NBD
Optional Warranty upgrades are available via BSI
