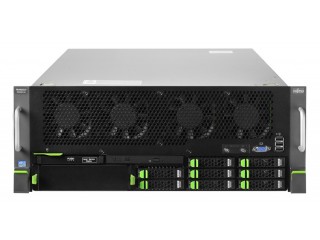

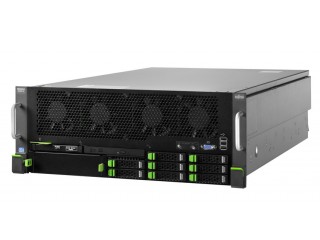

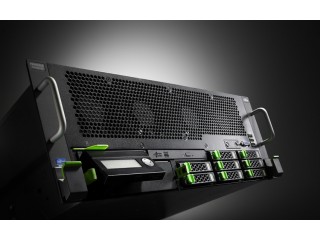

Fujitsu PRIMERGY RX600 S6 Enterprise Rack Server

Scalability and balanced composition ensure your growth


More Image(s)

The PRIMERGY RX Rack Server family is the perfect platform to form dynamic infrastructures for your business processes today and in the coming decade. You will thus benefit several times over from our recognized experience in optimized data center technology and our innovative strength in developing energy-efficient and cost / performance-optimized rack systems for universal use.
Availability: In stock

For details on how to purchase the Fujitsu PRIMERGY RX600 S6 Enterprise Rack Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


PRIMERGY rack servers, built upon industry standards, focus from a functional viewpoint on core features: energy efficiency, reliability, optimized for virtualization, ease of operation and maintenance, flexibility for your future. And thus they notably meet your requirements for outstanding cost efficiency. Optimal operating costs and long-term usability comply with the IT quality required by your customers. Our responsibility goes way beyond the hardware as our tailor-made service packages mean that you can rely on the best support for your IT during its whole lifecycle.

Extensive usage of industry standard x86 based platforms is becoming more important than ever: be it as database management system for medium or large-sized databases or as a consolidation basis to run an immensely large number of different applications using virtualization technologies. The scalable PRIMERGY RX600 S6 is in every respect a reliable server for such critical company scenarios. The ideal interaction of integrated redundancy functions with server management components results in high-level availability and constantly efficient IT production as a character feature of this server platform.

The latest generation of Intel Xeon processors equipped with up to 10 state-of-the art cores enable a unique performance boost which however does not bear optimal dividends unless paired with other features: a high extendable main memory capacity with up to 64 DIMMs and a very high number of performant PCI Express channels provide a balanced high throughput architecture so as to meet increasing requirements. This and the continued evolution of virtualization support via Intel® components (processor, I/O controller) enable a greater consolidation of servers and applications with all the market relevant virtualization solutions , resulting in excellent best-in-class efficiency.

  • Using the scalable Intel® QPI architecture in this 4 CPU sockets server results in an excellent increase in performance when compared to the older Front Side Bus server generations. Thanks to the integration of two memory controllers per processor, the CPU to memory bandwidth has been raised up to a factor of 9. Together with the quadrupled maximum memory capacity and the new processor generation with up to 10 cores per processor and 2 threads per core, the system performance achieves unprecedented growth factors.
  • Balanced scale-up performance is achieved by combining various processor choices, using up to 4 x Intel® Xeon® E7-4800 or up to 2 x Intel® Xeon® E7-2800 processors, with PCI Express Generation 2 I/O busses and up to 64 memory DIMMs on 8 configurable memory boards.
  • ECC and SDDC memory protection, memory mirroring support, hotplug Memory Boards with socket-overlapping memory mirroring, hot-plug redundant fans and power supplies as standard, up to 8x hot-plug 2.5-inch SAS/SATA hard disks, hot-plug PCIe slots
  • LocalView display and integrated Remote Management Controller (iRMC S2) IPMI 2.0 as standard
Part No. rx600s6
Manufacturer Fujitsu
End of Life? Yes
Rack Units 4
Height 176 mm
Width 482.6 mm
Depth 770 mm
Weight [Kg] 46.00
CPU Socket(s) 1
Compatible CPU(s) Intel® Xeon® E7-2803 (6C/12T, 1.73 GHz)
Intel® Xeon® E7-2850 (10C/20T, 2.00 GHz)
Intel® Xeon® E7-4807 (6C/12T, 1.86 GHz)
Intel® Xeon® E7-4820 (8C/16T, 2.00 GHz)
Intel® Xeon® E7-4830 (8C/16T, 2.13 GHz)
Intel® Xeon® E7-4850 (10C/20T, 2.00 GHz)
Intel® Xeon® E7-4860 (10C/20T, 2.26 GHz)
Intel® Xeon® E7-4870 (10C/20T, 2.40 GHz)
Intel® Xeon® E7-8837 (8C/8T, 2.67 GHz)
Max CPU Clk Spd 2.67 GHz
Max # Thread(s) 80
Memory Slot(s) 64
Memory Capacity 1 TB
Drive Bays 8 x 2.5-inch hot-plug
1 x 5.25/0.5-inch for CD-RW/DVD
1 x 5.25/1.6-inch for backup devices
Capacity 4.8 TB
HDD Suitability SSD SATA, 3 Gb/s, 64 GB, SLC, hot-plug, 2.5-inch, enterprise
SSD SATA, 3 Gb/s, 32 GB, SLC, hot-plug, 2.5-inch, enterprise
PCIe SSD, 640 GB, MLC, Flash drive
PCIe SSD, 320 GB, MLC, Flash drive
HDD SAS, 6 Gb/s, 600 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 450 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 146 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 146 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 73 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise
RAID Options 8 Port SAS RAID 0/1 or RAID 5/6 controller as option
Supported OS Microsoft® Microsoft® Hyper-V™ Server 2008 R2
Microsoft® Windows Server® 2008 R2 Datacenter
Microsoft® Windows Server® 2008 R2 Enterprise
Microsoft® Windows Server® 2008 R2 Standard
Microsoft® Windows® Server 2008 Datacenter
Microsoft® Windows® Server 2008 Enterprise
Microsoft® Windows® Server 2008 Standard
Microsoft® Windows Server® 2003 Enterprise Edition
Microsoft® Windows Server® 2003 Standard Edition
VMware vSphere™ 4.1
VMware vSphere™ 4.1 Embedded
VMware vSphere™ 4.0 Installable
VMware vSphere™ 4.0
VMware vSphere™ 4.0 Embedded
VMware vSphere™ 4.0 Installable
Novell® SUSE Linux Enterprise Server 11
Novell® SUSE Linux Enterprise Server 10
Novell® SUSE Linux Enterprise Server 10 with XEN
Red Hat® Enterprise Linux 6
Red Hat® Enterprise Linux 5
Red Hat® Enterprise Linux 5 with XEN
Citrix® XenServer®
USB Port(s) 6 x USB 2.0 (3 x front, 2 x rear, 1 x internal)
PCI Slot(s) PCI-Express 2.0 x4 (mech. x8) 3 x full height (2 x ½ length, 1 x ¾ length)
PCI-Express 2.0 x8 4 x full height (all ¾ length, 2x hot-plug)
PCI-Express 2.0 x16 1 x full height (all ¾ length)
PCI-Express x4 (mech. x8) 2 x half height (all ½ length)
Serial Ports 1 x RS-232-C
LAN Socket(s) 4 x Gbit/s Ethernet

1 x dedicated service LAN port for iRMC S2 (10/100 Mbit/s) Service LAN traffic can be switched to shared onboard Gbit LAN port
LAN Controller(s) 2 x Intel® 82576, 4 x 10/100/1000 Mbit/s Ethernet, TCP/IP acceleration, PXE boot via LAN from PXE server
Standard 3 Y On-Site (Country dependant)
Optional 7x24 4HR Response Time
