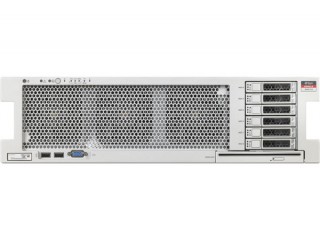

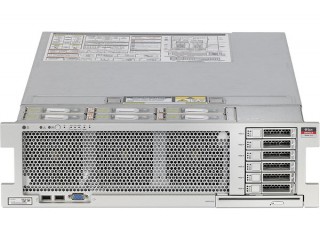

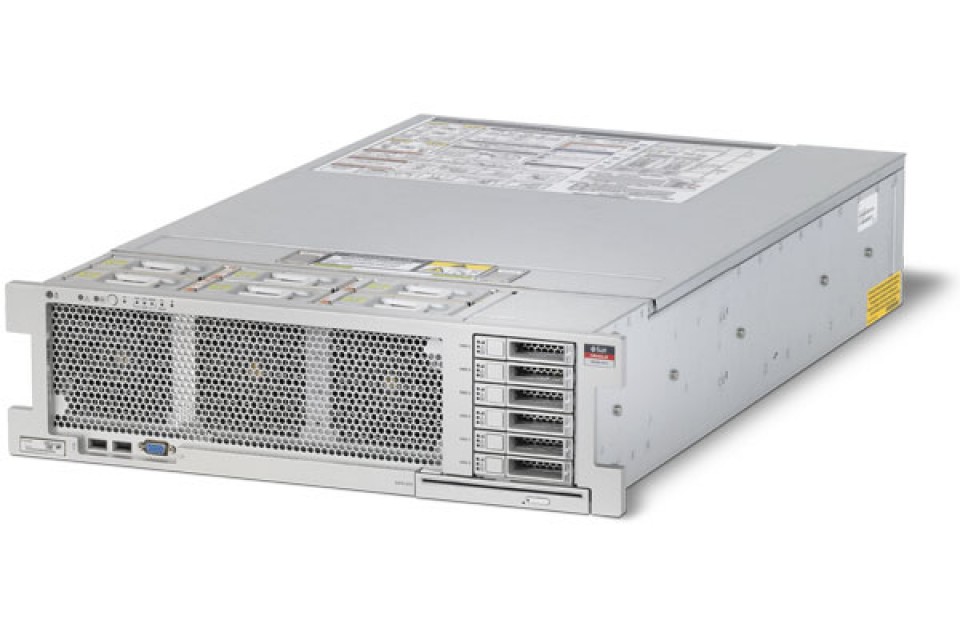

Oracle SPARC T3-2 Server



More Image(s)

Among the biggest problems facing businesses today are poor
space utilization, high energy and cooling costs and overcrowded
data centers. It doesn’t matter the size of the company, all are
feeling the pinch when it comes to data center consolidation.
Oracle’s SPARC T3-2 server is the answer for consolidation of
legacy servers, saving valuable data center real estate, and
significantly cutting operational costs.
Availability: In stock

For details on how to purchase the Oracle SPARC T3-2 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


As the newest two-socket, three-rack unit (3U) server, the SPARC T3-2 is powered by the industry’s first 16-core SPARC T3 processor and is the first 256-thread general-purpose server. It packs 16 cores and 128 simultaneous threads onto a single piece of silicon, together with the key functions of an entire system on a single chip – computing, networking, security, and IO.

The SPARC T3-2 features 6 hard disk drives, 32 DDR3 DIMM slots, and 10 PCIe Gen2 slots. When fully populated with 8GB DDR3 DIMMs, the system provides a total of 256 GB memory.

The SPARC T3-2 server offers virtualization technologies that enable organizations to extract maximum value from IT assets while creating an infrastructure capable of rapidly adapting to today’s dynamic business environment. Oracle VM Server for SPARC provides highly efficient, enterprise-class virtualization capabilities by creating partitions called logical (or virtual) domains. Each logical domain can run an independent operating system. While customers may achieve the optimal results with 32 logical domains, the SPARC T3-2 server supports a maximum of 128 logical domains, allowing organizations to consolidate workloads and maximize their use of compute platforms, simplifying their IT infrastructure and bringing new levels of efficiency, manageability, and agility to the data center.

Part No. 173099
Manufacturer Sun Oracle
End of Life? Yes
Succeeded By SPARC T5-2 Server Module
Rack Units 3 U
Height 129.85 mm
Width 436.5 mm
Depth 732 mm
Weight [Kg] 36.28
CPU Socket(s) 2
Compatible CPU(s) SPARC T3 Processors
Max CPU Clk Spd 1.65 GHz
Max # Thread(s) 256
Memory Slot(s) 32
Memory Capacity 256 GB
Drive Bays 6x 2.5" SAS-2/SATA-2 300/600 GB or
6x 32 GB SSD SATA-2
Capacity 3.6 TB
Supported OS Oracle Solaris 10 09/10
Support for Solaris 10 10/09
USB Port(s) 4x USB 2.0
PCI Slot(s) 10x PCIe 2.0 (6x x8, 2x x4, and 2x x8 with x16 connectors)
LAN Socket(s) 4x 1Gb (10/100/1000Mbps) Ethernet Ports
1x Option slot for 10 Gb Network Module Card
Graphics / GPU 2x VGA Ports (Front & Rear)
