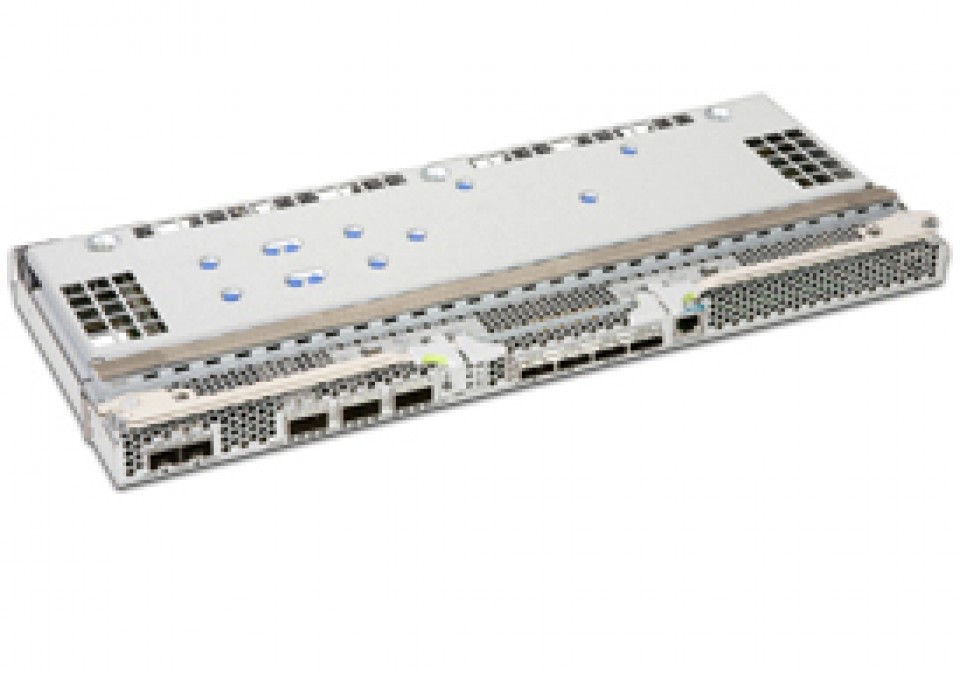

Sun Blade 6000 Ethernet Switched NEM 24p 10GbE

REDUCING COSTS AND SIMPLIFYING YOUR DATA CENTER WITH 10GBE ON SUN BLADES

[6000-24p-10gbe]
Designed to harness the full capabilities of the Sun Blade Modular
System, Oracle's Sun Blade 6000 Ethernet Switched Network
Express Module 24p 10GbE brings advanced 10 Gigabit Ethernet
non-blocking concurrent networking to the blade servers. This high
performance, low latency NEM simplifies IT infrastructure and
reduces network costs by eliminating an entire tier of switching with
4:1 cable reduction. It is ideal for network intensive enterprise
applications, web services, applications services and database
access and backup.
Availability: In stock

For details on how to purchase the Sun Blade 6000 Ethernet Switched NEM 24p 10GbE, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

The Sun Blade 6000 Switched Network Express Module 24p 10GbE provides wire rate, low latency, cut through switching to all supported 10 blades in the Sun Blade 6000 chassis. For scale-out connectivity to other chassis or to existing data center networks, the Network Express Module provides 14 10GbE uplinks, with two of them providing the SFP+ connectivity for either 1GbE or 10GbE cable aggregation and legacy interconnect, and the remaining 12 uplinks utilizing 3 compact QSFP connectors. The Sun Blade 6000 Switched Network Express Module 24p 10GbE is compliant with the industry standard Layer 2 and Layer 3 features.
Part No. 6000-24p-10gbe
Manufacturer Sun Oracle
Height 32.5 mm
Width 426.14 mm
Depth 191.46 mm
Weight [Kg] 3.00
LAN Socket(s) 10x 10 GbE Downlinks: 1 link to each blade server via Fabric Expansion Module (FEM)
14x 10 GbE uplinks: 2 SFP+, 3 QSFP (Quad Small Factor Ports) (equiv. to 12x 10 GbE ports)
1x Serial Service Port (RJ45)
Bandwidth 10 Gbps

The Oracle Sun Blade 6000 Ethernet Switched NEM 24p 10GbE is seamlessly integrated with the Sun Blade 6000 Chassis, offering an immediate performance boost and cost reduction to the Blade Servers by eliminating an entire layer of data center switches. The Network Express Module enables the highest server-to-server bandwidth for 40 blade servers without needing an external switch in a single rack.

It is ideal for VM migration, removing I/O bottlenecks and realizing full value from virtualized applications. The Network Express Module is managed from the Sun Blade 6000 ILOM server management which provides a single management system.
