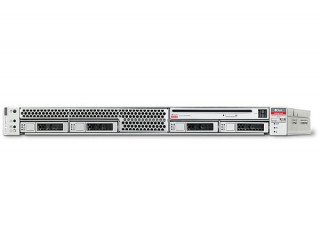

Sun Oracle SPARC Enterprise T5120 Server



More Image(s)

When you need to securely and efficiently serve millions of Web users, Oracle’s Sun SPARC Enterprise T5120 server is up to the task. It provides integrated on-chip 10 Gigabit Ethernet (GbE) and cryptographic acceleration and very efficient, low-power consumption in one rack unit (1RU).
Availability: In stock

For details on how to purchase the Sun Oracle SPARC Enterprise T5120 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


The Sun SPARC Enterprise T5120 server is the first 64-thread, general-purpose server powered by UltraSPARC T2 “system on a chip” processor. It packs eight cores and 64 simultaneous threads onto a single piece of silicon, together with the key functions of an entire system on a single chip—computing, networking, security, and I/O. And it’s all delivered in a compact 1RU form factor.

The Sun SPARC Enterprise T5120 server offers the industry’s only built-in and no-cost virtualization technologies with a choice of Oracle Solaris Containers and Oracle VM Server for SPARC (previously called Sun Logical Domains). By enabling up to 64 isolated domains per server, you can deploy more than 2,500 isolated domains per rack for ultimate server virtualization and consolidation.

The Sun SPARC Enterprise T5120 server is also the industry’s most open platform. It is built on open source technologies and open standards, packaging the only mainstream processor and virtualization hypervisor offered under the GPL, and pre-loaded with Oracle Solaris Operating System and pre-installed software tools. The Oracle Solaris Operating System is free, open, and the only open source UNIX-based OS to run on more than 900 platforms on multiple x86 and SPARC processors.

Part No. 035999
Manufacturer Sun Oracle
End of Life? Yes
Succeeded By SPARC T4-1 Server
Rack Units 1 U
Height 44 mm
Width 425 mm
Depth 714 mm
Weight [Kg] 18.00
CPU Socket(s) 1
Compatible CPU(s) UltraSPARC T2 8 Core Processor
Max CPU Clk Spd 1.4 GHz
Max # Thread(s) 64
Memory Slot(s) 16
Memory Capacity 64 GB
Drive Bays 4 or 8x 300 GB SAS Drives or
4x 32 GB SSD SATA Drives
Capacity 2.4 TB
HDD Suitability SAS,
Supported OS Oracle Solaris 10 8/07
Oracle Solaris 10 5/08
Oracle Solaris 10 10/08
Oracle Solaris 10 5/09
Oracle Solaris 10 10/09
USB Port(s) 4x USB 2.0
PCI Slot(s) 1x PCIe x8;
2x PCIe x4 or XAUI
LAN Socket(s) 4x 10/100/1000 Mb/sec Ethernet ports
2x Optional 10GbE XAUI connections.
Standard 1 Year
