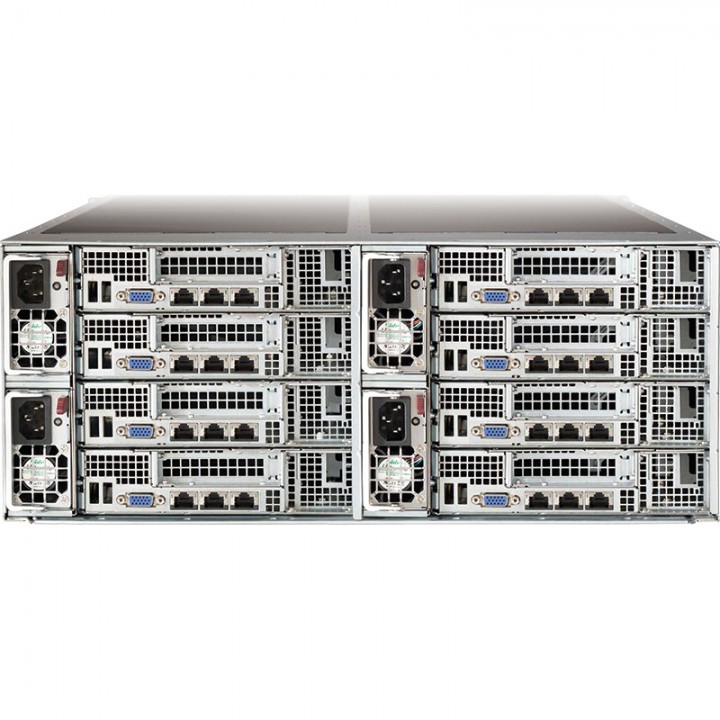

Fat Twin SuperServer F618R2-RTN / F618R2-RTPTN

Best TCO with Highest Performance-per-Watt/per-Dollar


More Image(s)

SuperMicro Efficiency Optimized Servers

Supermicro has designed a new class of SuperServer systems optimized to meet the latest and most stringent data center power efficiency requirements. Today's cloud and Hyperscale operations, with many thousands of servers installed, require the highest levels of performance-per-watt to keep operating costs (OPEX) at acceptable levels without sacrificing performance. Building on its 1U Data center optimized and 2U Twin SuperServer models, Supermicro has developed several performance-per-watt optimized SuperServer systems to meet these stringent efficiency requirements.
Availability: In stock

For details on how to purchase the Fat Twin SuperServer F618R2-RTN / F618R2-RTPTN, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


The Supermicro FatTwin is the latest addition to Supermicro's evolving line of Twin Server solutions. The FatTwin greatly expands compute and storage capacities beyond Supermicro's existing 2U Twin and 2U Twin SuperServer systems to achieve increased performance with lower power consumption. The FatTwin was designed to realize extremely low PUE in data centers and significantly reduce electric power costs even in free-air cooled environments. Due to its shared components the FatTwin improves reliability and TCO, while its modular design greatly increases its configurability, serviceability and maintainability. The FatTwin is available in high density 8/4/2 hot-plug system node configurations with a choice of memory capacities, number of hard disk drives, front or read I/O, PCI and networking options and 1280W and 1620W platinum level power supplies. These many options allow the FatTwin to be optimized for customer specific environments. For example, high performance applications requiring 16 DIMMs and high power CPUs can be fully supported with the FatTwin model utilizing fully redundant 1620W power supplies, while competitive systems do not have this capability. The FatTwin's high efficiency, highly effective shared cooling architecture allows it to operate in high temperature, free air cooled environments up to 47 degrees, providing considerable cost savings and improved TCO. The FatTwin offers versatile configurations and high temperature support with cost, power and space savings, effectively targeting data centers, Cloud Computing, and HPC; Engineering, Research, and GPU projects; File and Storage Server deployments, and General Server and Enterprise Server applications. The Supermicro FatTwin™ represents a revolution in Green Computing designed to support customers' critical applications and also reduce Data Center TCO to help preserve the environment. The FatTwin™ extends the compute and storage capabilities of Supermicro's existing Twin SuperServer® systems to achieve increased performance and power efficiency. Due to its shared components the FatTwin™ improves cost-effectiveness and reliability, while its modular architecture makes it flexible to configure and easy to maintain.
Part No. CSE-F418BC-R2K04B
Manufacturer SuperMicro
End of Life? No
Rack Units 4U
Height 17.7
Width 44.8
Depth 73.7
Weight [Kg] 68.04
CPU Socket(s) Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP)
CPU Cache Up to 45MB Cache
Max # Core(s) Up to 18 Cores
Memory Slot(s) 16x 288-pin DDR4 DIMM slots
Memory Capacity Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Drive Bays 6x 2.5" Hot-swap SATA or 4x 2.5" Hot-swap SATA + 2x SATA/NVMe hybrid
SATA Controller SATA3 (6Gbps)
RAID Options RAID 0, 1, 5, 10
USB Port(s) 2x USB 3.0 ports
PCI Slot(s) 1x PCI-E 3.0 x16 Low-profile 1x PCI-E 3.0 x8 (Micro LP)
Serial Ports 1x Fast UART 16550 port
LAN Socket(s) 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
LAN Controller(s) Intel® i350-AM2 Dual Port Gigabit Ethernet / Intel® X540 Dual Port 10GBase-T
Graphics / GPU ASPEED AST2400 BMC
Versatile configurations allow the FatTwin™ to be optimized for many different environments including Enterprise, Data Center, Cloud Computing, HPC, Financial, Science and Engineering, File and Storage Servers.
