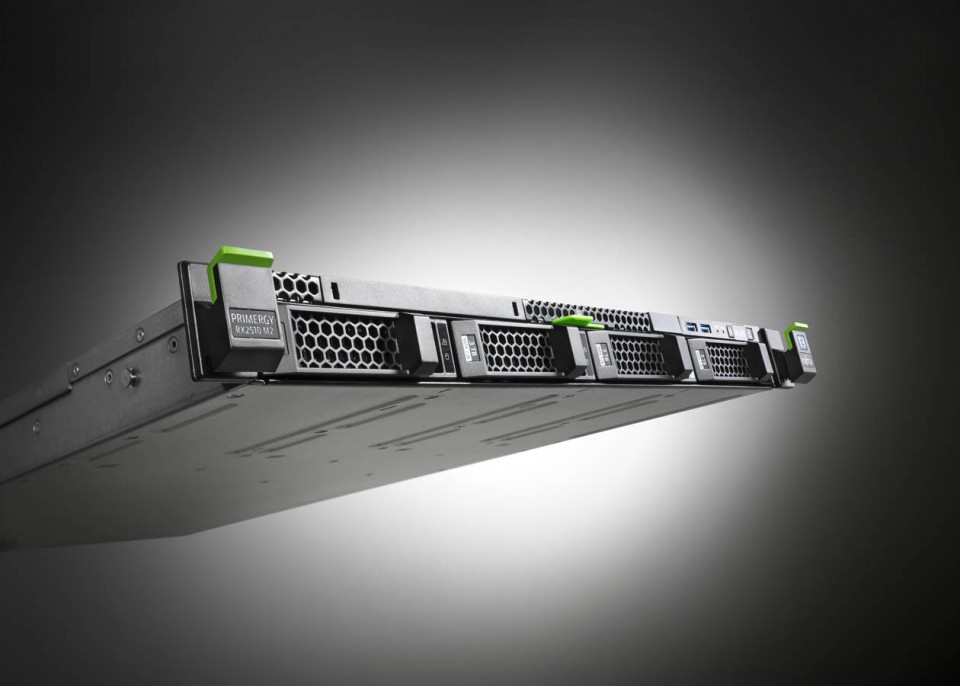

Fujitsu PRIMERGY RX2510 M2 Rack Server

The balanced server that serves your services

[RX2510M2]

More Image(s)

FUJITSU Server PRIMERGY will give you the servers you need to power any workload and changing business requirements. As business processes expand so does the need for applications

Availability: In stock

Details

versatile rack-optimized servers

Based on proven PRIMERGY technology, the FUJITSU Server PRIMERGY RX2510 M2 is a rack server that balances optimal dual-socket performance, easy manageability and leading energy efficiency with cost-efficient operation. The 1U housing not only saves in terms of rack space, but also saves on your initial investment costs.

Therefore, the RX2510 M2 is ideally suited for large scale-out scenarios as can be seen in the landscape of different kinds of service providers and hosters. Moreover, the energy efficient power supply units, optional redundancy features and the optional Cool-safe® Advanced Thermal Design for higher ambient temperatures will result in lower operational costs.

providing best in-class performance and energy efficiency

Your aim, to deliver the best service experience for your customers lead to a system design that not only continuously meets accessibility demands driven by your business, but also the variability to define the systems as required. Thanks to the latest Intel® Xeon® processor E5-2600 v4 product family with up to 14 cores and up to 384 GB DDR4 memory technology, you can make sure to deliver stateof-the-art service - to be integrated as seamless and smoothly as integration can be.

Optimized for web hosting, managed CRM services, shared, managed or private cloud environments, or other XaaS solutions, the PRIMERGY RX2510 M2 is the right choice. Logistic options, various SLAs and selectable support services help additionally to lower your TCO with smallest effort – putting you in place to concentrate on the core of your business.

Features and benefits

Main Features	Benefits
Performance for any service
Intel Xeon E5-2600 V4 product family with up to 14 cores Up to 384 GB DDR4 memory (12 DIMM Slots) Choice of LFF or SFF HDDs and for improvements in different areas of hosted services 3X PCIe Gen3 slots for expandability slots	Ready for the future and data growth scenarios with the performance of two processors - marking the standard of tomorrow with an increase in computing power DDR4 memory enables for higher bandwidth and lower consumption. The right choice for any application. Sufficiently dimensioned space resources and expandability for enough headroom in distributed systems or scale out approaches.
Optimized Energy Efficiency
Fujitsu's optional cool safe advabced thermal design for higher ambient temperatures in the data center Power supply units with up to 94% energy efficiency	Higher ambient temperatures lead to lower costs for cooling the data center Efficient power supplies save energy costs. Optional redundancy makes it easy to maintain the running system and ensure and incomparable uptime
Easy management and smooth integration
IPMI 2.0 interface for monitoring and management within your existing infrastructure Additionally Fujitsu ServerView Suite including tools for installation and deployment, permanent status monitoring and control BIOS, firmware and selected software are updated free of charge	No matter what management software you use: The RX2510 M2 is ready for all thanks to open standards The comprehensive tools of the Fujitsu ServerView Suite eases the administrators life even more Updates are very important in a fast-paced world, especially considering cyber crime
Simplify your daily operations
Embedded RAID controller	For cost efficient and basic RAID requirements, support for the most common configurations is conveniently embedded on the system board and does not require a dedicated controller
Ease of supply thanks to clever logistics: Bulk packaging	This offering is a clever option that easily helps to save costs, streamline purchasing and installation processes while maintaining sustainable eco-friendly targets in the suplpy chain
Shared components
The family system design allows for synergy effects from all other Primergy systems.	Our proven quality, efficiency and agility is taken to another level - specialiazed for your demands

Part No.	RX2510M2
Manufacturer	Fujitsu
End of Life?	No
Rack Units	1U
Height	4.3
Width	43.5
Depth	77
Weight [Kg]	16.00
CPU Socket(s)	1 - 2 x Intel® Xeon® processors
Compatible CPU(s)	E5-2600 v4 product family-based platform Intel® Xeon® processor E5-2603v4 (6C/6T, 1.70 GHz, TLC: 15 MB, Turbo: No, 6.4 GT/s, Mem bus: 1,866 MHz, 85 W, AVX Base 1.70 GHz) Intel® Xeon® processor E5-2609v4 (8C/8T, 1.70 GHz, TLC: 20 MB, Turbo: No, 6.4 GT/s, Mem bus: 1,866 MHz, 85 W, AVX Base 1.70 GHz) Intel® Xeon® processor E5-2620v4 (8C/16T, 2.10 GHz, TLC: 20 MB, Turbo: 2.30 GHz, 8.0 GT/s, Mem bus: 2,133 MHz, 85 W, AVX Base 1.80 GHz, AVX Turbo 2.30 GHz) Intel® Xeon® processor E5-2623v4 (4C/8T, 2.60 GHz, TLC: 10 MB, Turbo: 2.90 GHz, 8.0 GT/s, Mem bus: 2,133 MHz, 85 W, AVX Base 2.20 GHz, AVX Turbo 2.90 GHz) Intel® Xeon® processor E5-2630Lv4 (10C/20T, 1.80 GHz, TLC: 25 MB, Turbo: 2.00 GHz, 8.0 GT/s, Mem bus: 2,133 MHz, 55 W, AVX Base 1.30 GHz, AVX Turbo 2.00 GHz) Intel® Xeon® processor E5-2630v4 (10C/20T, 2.20 GHz, TLC: 25 MB, Turbo: 2.40 GHz, 8.0 GT/s, Mem bus: 2,133 MHz, 85 W, AVX Base 1.80 GHz, AVX Turbo 2.40 GHz) Intel® Xeon® processor E5-2640v4 (10C/20T, 2.40 GHz, TLC: 25 MB, Turbo: 2.60 GHz, 8.0 GT/s, Mem bus: 2,133 MHz, 90 W, AVX Base 2.00 GHz, AVX Turbo 2.60 GHz) Intel® Xeon® processor E5-2650Lv4 (14C/28T, 1.70 GHz, TLC: 35 MB, Turbo: 2.00 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 65 W, AVX Base 1.20 GHz, AVX Turbo 1.70 GHz) Intel® Xeon® processor E5-2650v4 (12C/24T, 2.20 GHz, TLC: 30 MB, Turbo: 2.50 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 105 W, AVX Base 1.80 GHz, AVX Turbo 2.50 GHz) Intel® Xeon® processor E5-2660v4 (14C/28T, 2.00 GHz, TLC: 35 MB, Turbo: 2.40 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 105 W, AVX Base 1.70 GHz, AVX Turbo 2.40 GHz)
Memory Slot(s)	12 (6 DIMMs per CPU, 2 channels with 3 slots per channel)
Memory Capacity	384 GB
Drive Bays	optional up to 4 x 2.5-inch or 4 x 3.5-inch (2.5-inch drives will be mounted into 3.5-inch drive cages
HDD Suitability	Hard disk drives HDD SATA, 6 Gb/s, 500 GB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical HDD SATA, 6 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise Solid-State-Drive DOM SATA, 6 Gb/s, 128 GB, non hot plug, enterprise, 345TBW (Seq. write) DOM SATA, 6 Gb/s, 64 GB, non hot plug, enterprise, 172TBW (Seq. write)
SATA Controller	Intel® C612
RAID Options	Fujitsu PRAID EP420i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP400i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID CP400i, RAID Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 1E, 10, 5, 50, No FBU support
USB Port(s)	1 x USB 2.0 (1x rear) // 4 x USB 3.0 (2x front, 2x rear)
PCI Slot(s)	PCI-Express 3.0 x8 // 2 x Low profile PCI-Express 3.0 x16 // 2 x Low profile (2nd CPU required for slot 4)
LAN Socket(s)	Converged Network Adapter 2 x 10 Gbit/s PCIe 3.0 x8 SFP+ ( Emulex ) Ethernet Ctrl. 1 x 1 Gbit/s PCIe 2.1 x1 RJ45 ( Intel® ) Ethernet Ctrl. 2 x 10 Gbit/s PCIe 2.0 x8 SFP+ ( Fujitsu ) Ethernet Ctrl. 2 x 10 Gbit/s PCIe 2.1 x8 RJ45 ( Intel® ) Ethernet Ctrl. 2 x 10 Gbit/s PCIe 3.0 x8 10Gbit/s Eth (RJ45) ( Emulex ) Ethernet Ctrl. 2 x 10 Gbit/s PCIe 3.0 x8 SFP+ ( Emulex ) Ethernet Ctrl. 2 x 1 Gbit/s PCIe 2.1 x4 RJ45 ( Intel® ) Ethernet Ctrl. 4 x 1 Gbit/s PCIe 2.1 x4 RJ45 ( Intel® )
LAN Controller(s)	Intel® C612. LAN controller are integrated in optional I/O units
Graphics / GPU	1 x VGA (1x rear)
Standard	Onsite warranty - 2 Years
Optional	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time 24x7, 4h Onsite Response Time
