Details

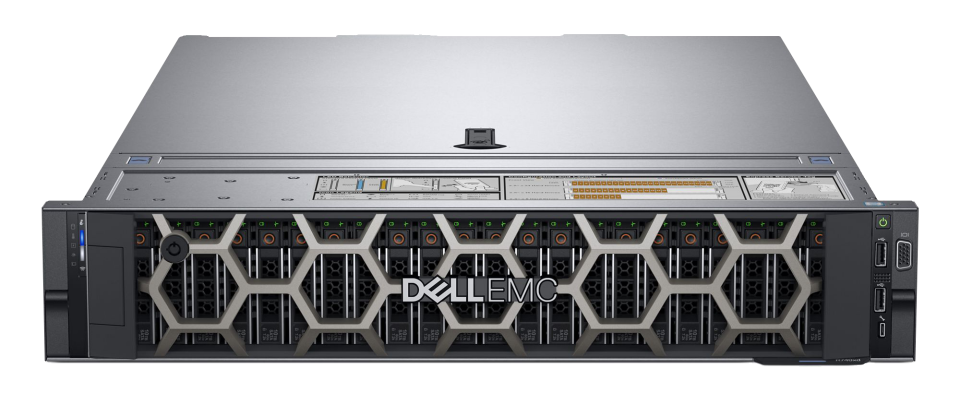

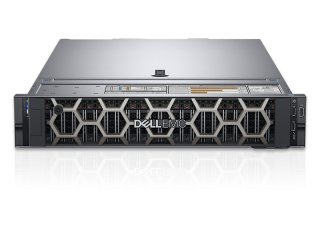

General purpose server for your demanding workloads
The Dell PowerEdge R760, powered by 3rd Generation Intel® Xeon® Scalable processors, is the optimal rack server to address application performance and acceleration.
- Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
- Address substantial throughput improvements with PCIe Gen 4 and up to 24 NVMe drives
- Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
- Optional Direct Liquid Cooling support to address high wattage processors
OpenManage systems management
The Dell OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.
Intelligent Automation
PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.
Built-in security
Dell EMC PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.
| Part No. | R760 |
|---|---|
| Manufacturer | Dell Technologies |
| End of Life? | No |
| Preceeded By | R750 |
| Rack Units | 2U |
| CPU Socket(s) | Up to two 3rd Generation Intel® Xeon® Scalable processors, with up to 40 cores per processor |
| Memory Slot(s) | Up to 8 channels of memory per processor, 32x DDR4 3200MHz DIMM Slots |
| Memory Capacity | 8TB |
| Drive Bays | Front Bays Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear Bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Internal Boot Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB |
| SATA Controller | Internal Controllers PERC H745, HBA355I, H345, H755, H755N External Controllers PERC H840, HBA355E |
| Supported OS | Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi |
| USB Port(s) | Front: iDRAC dedicated micro-USB Rear: 1 x USB 3.0, 1 x USB 2.0 |
| PCI Slot(s) | Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
GPU options: Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators |
| Serial Ports | 1x |
| LAN Socket(s) | 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) 2 x RJ-45 |
