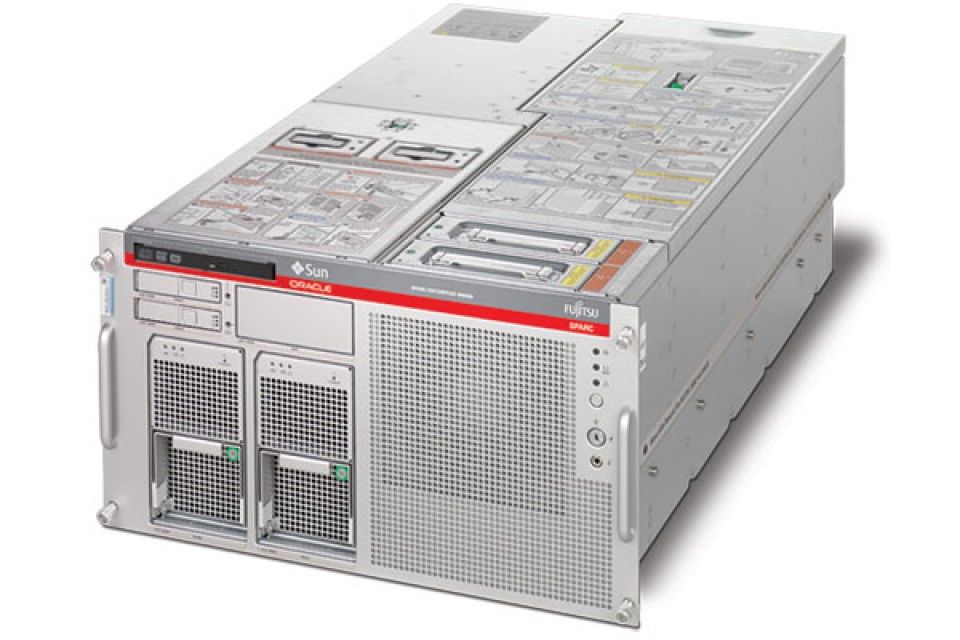

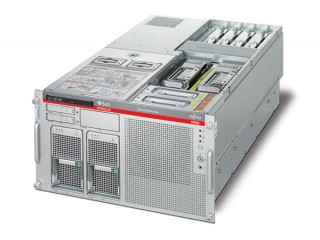

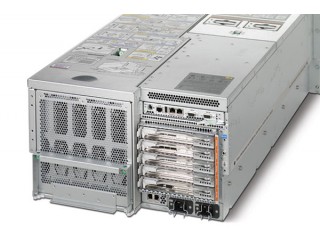

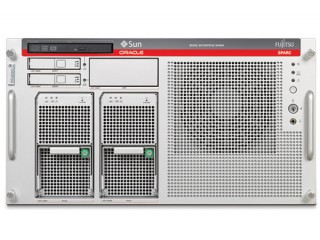

Oracle SPARC Enterprise M4000 Server

MAINFRAME-CLASS RAS AND UNMATCHED INVESTMENT PROTECTION

[035942]

More Image(s)

You can’t afford to have business-critical services go offline. To meet these increasing demands for compute services, platforms must be flexible and provide a cost-effective growth path. Built on the latest and most advanced SPARC64 VII/VII+ quad-core or SPARC64 VI dual-core processors, the M4000 server delivers enterprise-class service levels for essential business applications, databases, and other projects.
Availability: In stock

For details on how to purchase the Oracle SPARC Enterprise M4000 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

With the SPARC Enterprise M4000 servers, you can protect your IT investment with no forklift upgrades and scale out as needed. The option to mix and match different speeds/generations of SPARC64 processors in existing and new M-series servers uniquely protects investments and enables easy and low-cost upgrades not offered by IBM or HP.

In addition, mainframe-class RAS features come standard in the SPARC Enterprise M4000 server, including automatic recovery with instruction retry, up to 256 GB of system memory error- correcting code (ECC) protection with extended ECC support, guaranteed data path integrity, total SRAM and register protection, and configurable memory mirroring. In addition, the disks, power supply, and fans are redundant and hot-swappable, while the I/O cards are also hot-swappable. Many features unique to Oracle Solaris 10 enhance system reliability even further, including Predictive Self-Healing, which automatically identifies and isolates faults and provides specific guidance when action is required.

For more flexibility, the SPARC Enterprise M4000 server supports up to two Dynamic Domains with a high level of granularity: CPU board-level domains for large, mission-critical workloads requiring maximum isolation, and single-socket-level domains for finer granularity with high isolation. For maximum flexibility, each system can support thousands of Oracle Solaris Containers, which can create many private execution environments within a single Oracle Solaris instance.

Only Oracle legally assures investment protection with Oracle Solaris with 100% binary compatibility for the past 15 years and counting. The SPARC Enterprise M4000 server is preinstalled with Oracle Solaris 10. Oracle Solaris 10 also delivers revolutionary features, including Dynamic Tracing (DTrace), Oracle Solaris ZFS, crypto- graphic infrastructures, IP filter, and User and Process Rights Management.

Part No. 035942
Manufacturer Sun Oracle
End of Life? Yes
Succeeded By SPARC T5-2 Server, Fujitsu M10-1 Server
Rack Units 6 U
Height 263 mm
Width 444 mm
Depth 810 mm
Weight [Kg] 84.00
CPU Socket(s) 4
Compatible CPU(s) SPARC64 VII+ or;
SPARC64 VII SPARC64 VI
Max CPU Clk Spd 2.66 GHz (VII+); 2.53 GHz (VII); 2.15 GHz (VI)
CPU Cache L1: 64 KB;
L2: 11 MB;
(VII+)
Max # Thread(s) 32
Max # Core(s) 16
Memory Slot(s) 32
Memory Capacity 128 GB
Drive Bays 2x 2.5" SAS Boot Disks
Capacity 1.2 TB
Supported OS Oracle Solaris 10 (10/09) or later. (VII+);
Oracle Solaris 10 (08/07) or later. (VII);
Oracle Solaris 10 (11/06) or later. (VI)
PCI Slot(s) 4x PCIe Slots;
1x PCI-X Slot
