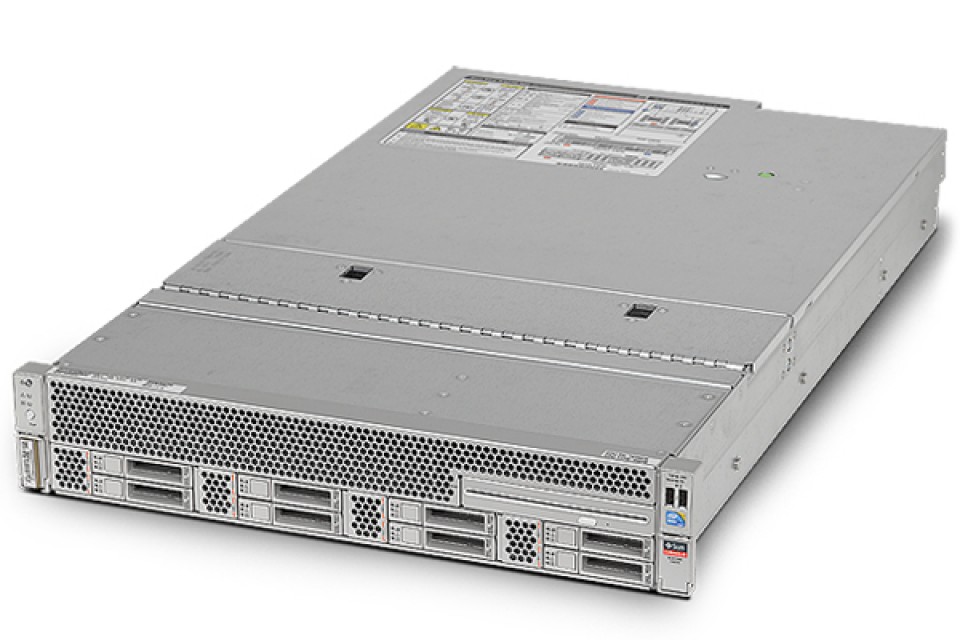

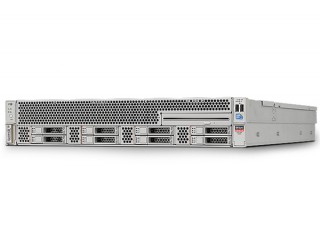

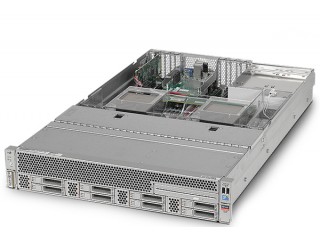

Oracle Sun Fire X4270 M3 Rack Mount Server
the perfect integration of compute and storage in a single 2U enclosure
[x4270m3]The Sun Fire X4270 M3 server, powered by two of the highest performing Intel Xeon processor E5-2600 product family CPUs, is the ideal system for clustered databases and virtualized business applications. This server is available in three flexible chassis configurations and offers superior scalability with more than 37 TB of disk storage for the most demanding cluster environments. System performance and power efficiency are maximized with flash storage options that deliver high I/O performance and reduced energy consumption.
Details
The Sun Fire X4270 M3 server generational improvements include up to 7.8 TB of flash storage to boost performance for clustered database applications and 2x I/O bandwidth with six PCIe 3.0 slots for demanding enterprise collaboration workloads. Another improvement is 10x the network bandwidth with the integration of four 10GbE ports, which reduces cabling, increases data throughput, and saves scarce PCIe slots for other peripherals. Due to its use of low voltage DDR3-1600 MHz memory DIMMs and 80 PLUS Platinum power supplies, this server is more energy efficient. In addition, an increase of 33 percent in processor cores and threads produces better performance in the same 2U form factor, making this server the densest and fastest performing in its class.
All Oracle servers ship with full function server management tools at no additional cost. Oracle Integrated Lights Out Manager (ILOM) utilizes industry-standard protocols to provide secure and comprehensive local and remote management. Oracle ILOM features also include power management and monitoring, fault detection and notification. The integrated Oracle System Assistant guides system administrators through rapid server deployment, firmware updates, hardware configuration and operating system installation with Oracle certified hardware drivers.
Part No. | x4270m3 |
---|---|
Manufacturer | Sun Oracle |
Rack Units | 2 U |
Height | 87.6 mm |
Width | 445.0 mm |
Depth | 737.0 mm |
Weight [Kg] | 31.80 |
CPU Socket(s) | 2 Intel® Xeon® E5-2600, with QuickPath Interconnect |
CPU Cache | Level 1: 32 KB instruction and 32 KB data L1 cache per core; Level 2: 256 KB shared instruction/data L2 cache per core; Level 3: Up to 20 MB shared inclusive L3 cache per processor |
Memory Slot(s) | 16x DDR3 Low Voltage RDIMM |
Memory Capacity | 256 GB |
Drive Bays | Three disk chassis options:
|
Capacity | Up to 37.2 TB (12 Disk Cage Option) |
HDD Suitability | 2.5" or 3.5" HDD or SSD |
RAID Options | Optional RAID levels: 0, 1, 1E, 5, 5EE, 6, 10 with optional Battery Backup Write Cache (BBWC) via internal SAS HBA PCIe Card |
Supported OS | Oracle Solaris (pre-installed option) Oracle Linux Red Hat Enterprise Linux SUSE Linux Enterprise Server Microsoft Windows Server |
USB Port(s) | USB: Six 2.0 USB ports (two front, two rear, two internal) |
PCI Slot(s) | Expansion bus: Six PCIe 3.0 slots |
LAN Socket(s) | Four 100/1000/10G Base-T Ethernet ports |
Graphics / GPU | VGA 2D graphics controller embedded |
Standard | The Sun Fire X4270 M3 server comes with a one-year warranty. |
