Details
Oracle’s SPARC T4-1B and Oracle’s Sun Blade 6000 chassis deliver an integrated platform with a high degree of scalability, density, deployment flexibility, and energy efficiency to meet the high demands of secure, enterprise datacenter applications.
As the highest-density SPARC T4 server available in a compact blade form factor, the SPARC T4-1B delivers massive throughput, and no-cost virtualization running the proven, enterprise-ready Oracle Solaris operating system.
The single-socket SPARC T4-1B server module delivers massive compute density with up to 8 cores and up to 64 simultaneous threads in a highly efficient blade server design.
The SPARC T4 processor is designed for a broad range of application workloads including database, middleware, and web tier applications. With five times single-thread performance improvement over the previous generation SPARC T3 processor, the SPARC T4 systems now provide infrastructure for secure end-to-end datacenter deployments.

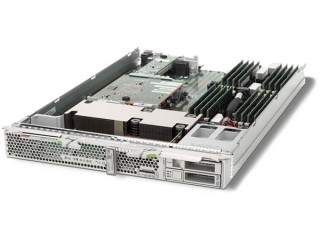

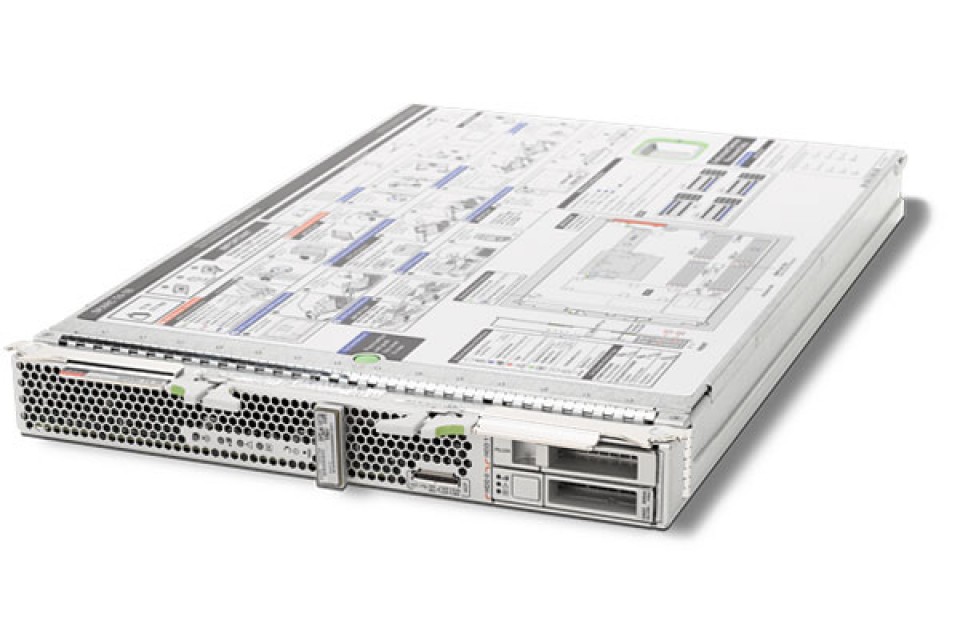

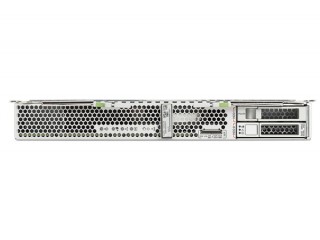

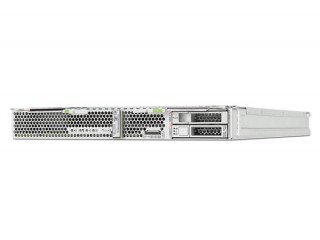

The SPARC T4-1B features one SPARC T4 processor, 16 DIMM slots for up to 256GB memory, two drive slots for hot-pluggable 2.5 inch drives. The SPARC T4-1B blade is both compact and powerful. With integrated 10 GbE networking and built-in PCI Express Generation 2 expansion, the SPARC T4-1B has the power required to drive computing requirements for database, middleware, and web based applications.
Part No. | sun-t4-1b |
---|---|
Manufacturer | Sun Oracle |
End of Life? | Yes |
Succeeded By | SPARC T5-1B Server Module |
Height | 44.45 mm |
Width | 327.15 mm |
Depth | 496.82 mm |
Weight [Kg] | 7.71 |
CPU Socket(s) | 1 |
Compatible CPU(s) | SPARC T4 Processor L1 16KB Cache L2 128KB Cache L3 4MB Cache |
Max CPU Clk Spd | 2.85 GHz |
Max # Thread(s) | 64 T |
Memory Slot(s) | 16 Dimms |
Memory Capacity | 256 GB |
Drive Bays | 6x SAS 2.0 Interfaces 2x Optional Internal 300 GB or 600 GB 10,000 RPM SAS Drives, or 100 GB SATA SSD. |
SATA Controller | LSI SAS2008 Controller |
RAID Options | RAID 0,1 Support |
Supported OS | • Oracle Solaris 10 8/11 • Oracle Solaris 11 (when available) • Support for Solaris 10 9/10 and Solaris 10 10/09 Oracle Solaris 10 8/11 Patch Bundle Software Included • Oracle Solaris 10 9/10 or • Oracle Solaris 11 (when available) • Oracle VM Server for SPARC 2.1 • Electronic Prognostics 1.2 • Oracle Solaris ZF |
USB Port(s) | 3x USB 2.0 (2x Via Dongle, 1x Internal) |
PCI Slot(s) | 4x PCIe x8 Busses: Two dedicated to NEMs, two to EMs. |
LAN Socket(s) | 2x 10/100/1000 Base-T Ethernet Ports 1x Dedicated 10/100 Base-T Ethernet port for Management Network 2x Optional 10 GB XAUI Ethernet Ports through dual channel 10 GbE Fabric expansion module |
LAN Controller(s) | Intel 82571ED GbE Trasceiver |
The SPARC T4-1B, Oracle Solaris, and Oracle VM Server for SPARC are optimized for the enterprise for demanding workloads in a highly cost-efficient blade infrastructure. The SPARC T4-1B comes ready with Oracle Solaris Containers and Oracle VM technology, for faster and more-reliable consolidation and virtualization in your IT infrastructure at no extra cost.
The Sun Blade 6000 and SPARC T4-1B are enterprise ready. Combining the chassis-based RAS features with Oracle Integrated Lights Out Management (ILOM), the Sun Blade 6000 and SPARC T4-1B are designed to maximize uptime and simplify system management.
The SPARC T4-1B installs in the highly efficient Sun Blade 6000 chassis supporting up to 10 full-featured, top-performance Oracle blade server modules, and PCIe Gen2, in a compact 10U chassis, with I/O throughput up to 302Gb/sec.
The Sun Blade 6000 provides up to 6.4 terabit-per-second headroom for future CPU and I/O architectures.
Designed for high reliability and efficiency, the Sun Blade 6000 provides a flexible, modular network infrastructure. With the Sun Blade 6000 chassis and SPARC T4-1B blade server, customers are able to greatly reduce their time-to-revenue and virtually eliminate downtime for I/O upgrades.
