Details

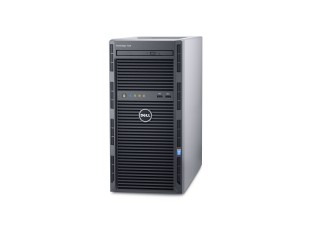

The Dell PowerEdge T130 is an outstanding first server or replacement server for driving collaboration and productivity applications in SOHO and SMB. It provides 100% more memory capacity, drives 2x I/O data throughput and delivers 100% faster IOPS performance compared to the previous-generation PowerEdge T110 II server.
Discover greater versatility
Harness data growth with up to four internal 3.5-inch cabled hard drives. Grow memory capacity through time with four DIMM slots supporting up to 64GB of DDR4 memory. Easily and flexibly attach external devices with eight external USB ports.
Deliver powerful performance
Accelerate compute performance across a wide range of applications with the latest Intel Xeon processor E3-1200 v6 product family. Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with 4x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0. Deliver 2x IOPS performance with T130/PERC9 compared to the previous-generation T110/PERC8.
Maximise operational efficiency
Deploy smoothly and rapidly with Dell OpenManage systems management solutions. Easily monitor system health and behavior with simple, intuitive Dell OpenManage Essentials console. Save IT administrator time by automating firmware updates.
Innovative management with intelligent automation
The Dell OpenManage systems management portfolio includes innovative solutions that simplify and automate management tasks, making IT operations more efficient and more cost-effective throughout the server life cycle. Leveraging the incomparable agent-free capabilities of the PowerEdge embedded integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller technology, server deployment, configuration and updates are rapid, confident and worry-free. Monitoring and control of the T130 is provided by OpenManage Essentials and can also enable anytime, anywhere mobile access through OpenManage Mobile.
Part No. | T130 |
---|---|
Manufacturer | Dell Technologies |
End of Life? | No |
Height | 360 |
Width | 175 |
Depth | 435 |
CPU Socket(s) | 1 processor from the following product families:Intel® Xeon® processor E3-1200 v6 product familyIntel Pentium®Intel CoreTM i3Intel Celeron® |
Memory Slot(s) | Up to 4 2400MT/s DDR4 DIMMs |
Memory Capacity | Up to 64 GB |
Drive Bays | 3.5" Enterprise SATA 7.2k HDDs 3.5" nearline SAS 7.2k HDDs 3.5" 7.2k SATA entry drives |
Supported OS | Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2, x64 Microsoft Windows Server 2016 Red Hat® Enterprise Linux® VMware® vSphere® ESXi® SUSE Linux Enterprise Server |
PCI Slot(s) | 1x8 PCIe 3.0 (x16 connector) 1x4 PCIe 3.0 (x8 connector) 1x4 PCIe 3.0 (x8 connector) 1x1 PCIe 3.0 (x1 connector) |
LAN Socket(s) | 2 X 1GbE LOM |
LAN Controller(s) | Broadcom® BCM5720 |
