Details
Maximise application performance and density

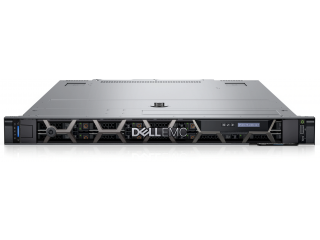

The dual-socket/1U PowerEdge R660 is the ideal rack server to address performance, high scalability, and density.
- Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
- Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives
- Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
- Optional Direct Liquid Cooling support to address high wattage processors
- Maximise storage performance with up to 10 NVMe drives or 10 2.5" SAS or SATA drives.
- Scale compute resources with Intel Xeon Scalable that offer up to 1.50x performance gains over previous generation Cascade Lake. Ice Lake CPUs scale up to 40cores per CPU.
Automate maintenance with Dell EMC OpenManage
The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R660 is simply managed, freeing up time for high profile projects.
- Simplify management with New OpenManage Enterprise console, with customised reporting and automatic discovery.
- Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Guard your data center with built in security
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server life cycle. The R660 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
Intelligent Automation
PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.
Built-in security
Dell EMC PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.
| Part No. | Dell-R660 |
|---|---|
| Manufacturer | Dell Technologies |
| End of Life? | No |
| Preceeded By | R650 |
| Rack Units | 1U |
| Depth | 705.5 |
| CPU Socket(s) | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 40 cores per processor |
| Memory Slot(s) | 32 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 3200MT/s |
| Memory Capacity | 8TB |
| Drive Bays | Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB Dell S2 BOSS hot swappable module (2x M.2 drives) |
| RAID Controller | PERC H745, H345, HBA355I, H755, H755N |
| Supported OS | Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi |
| USB Port(s) | 2x USB 2.0 , 1x USB 3.0, 1 x Dedicated iDRAC Direct micro-USB , |
| PCI Slot(s) | Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots |
| Serial Ports | 1x |
| LAN Socket(s) | 2x RJ45 |
