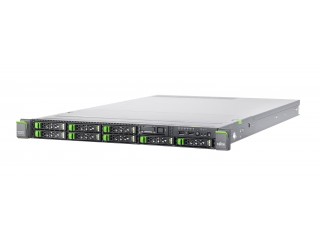

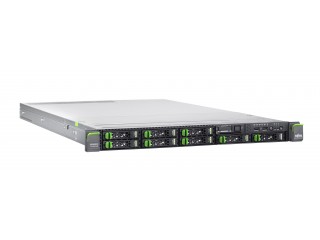

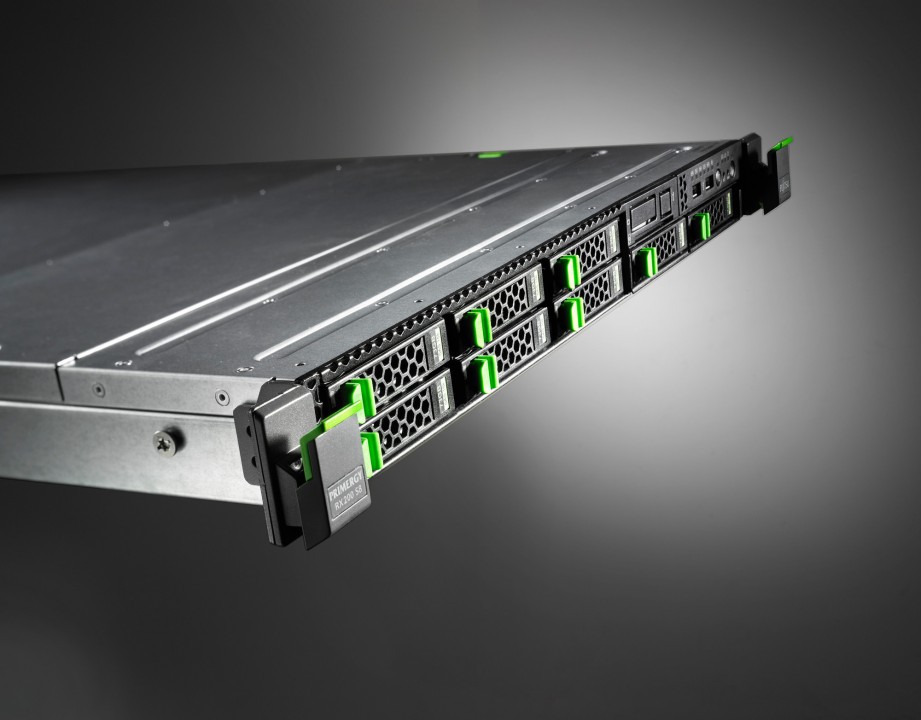

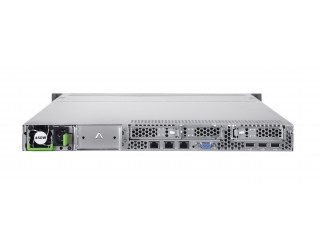

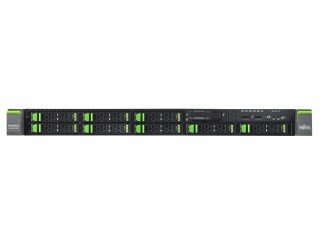

Fujitsu PRIMERGY RX200 S8 Single Socket Rack Server

Maximum productivity in a 1U housing, with Intel IVY BRIDGE processors.

[rx200s8]

More Image(s)

The Fujitsu Server PRIMERGY RX200 S8 is a rack server that provides high performance, expandability and energy efficiency in 1U space saving housing. Thus, the PRIMERGY RX200 S8 is ideal for virtualization and cloud, small databases as well as for high performance computing thanks to the top performance of the new Intel® Xeon® E5 product family.

Availability: In stock

For details on how to purchase the Fujitsu PRIMERGY RX200 S8 Single Socket Rack Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

Part No. rx200s8
Manufacturer Fujitsu
End of Life? No
Preceeded By RX200 S7
Rack Units 1 RU
Height 43
Width 482
Depth 762
Weight [Kg] 18.00
Specification CB
RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronical equipment)
CPU Socket(s) 1–2 Intel® Xeon® processor E5-2600 v2 product family
Compatible CPU(s) Intel® Xeon® E5-2650Lv2 (10C/20T, 1.70GHz, TLC: 25MB, 8.0 GT/s, Mem: 1600 MHz, 70 W);
Intel® Xeon® E5-2630Lv2 (6C/12T, 2.40GHz, TLC: 15MB, 7.2 GT/s, Mem: 1600 MHz, 60 W);
Intel® Xeon® E5-2660v2 (10C/20T, 2.20GHz, TLC: 25MB, 8.0 GT/s, Mem: 1866 MHz, 95 W);
Intel® Xeon® E5-2670v2 (10C/20T, 2.50GHz, TLC: 25MB, 8.0 GT/s, Mem: 1866 MHz, 115 W);
Intel® Xeon® E5-2680v2 (10C/20T, 2.80GHz, TLC: 25MB, 8.0 GT/s, Mem: 1866 MHz, 115 W);
Intel® Xeon® E5-2690v2 (10C/20T, 3.00GHz, TLC: 25MB, 8.0 GT/s, Mem: 1866 MHz, 130 W);
Intel® Xeon® E5-2695v2 (12C/24T, 2.40GHz, TLC: 30MB, 8.0 GT/s, Mem: 1866 MHz, 115 W);
Intel® Xeon® E5-2697v2 (12C/24T, 2.70GHz, TLC: 30MB, 8.0 GT/s, Mem: 1866 MHz, 130 W);
Intel® Xeon® E5-2603v2 (4C/4T, 1.80GHz, TLC: 10MB, 6.4 GT/s, Mem: 1333 MHz, 80 W);
Intel® Xeon® E5-2609v2 (4C/4T, 2.50GHz, TLC: 10MB, 6.4 GT/s, Mem: 1333 MHz, 80 W);
Intel® Xeon® E5-2637v2 (4C/8T, 3.50GHz, TLC: 15MB, 8.0 GT/s, Mem: 1866 MHz, 130 W);
Intel® Xeon® E5-2620v2 (6C/12T, 2.10GHz, TLC: 15MB, 7.2 GT/s, Mem: 1600 MHz, 80 W);
Intel® Xeon® E5-2630v2 (6C/12T, 2.60GHz, TLC: 15MB, 7.2 GT/s, Mem: 1866 MHz, 80 W);
Intel® Xeon® E5-2643v2 (6C/12T, 3.50GHz, TLC: 25MB, 8.0 GT/s, Mem: 1866 MHz, 130 W);
Intel® Xeon® E5-2640v2 (8C/16T, 2.00GHz, TLC: 20MB, 7.2 GT/s, Mem: 1600 MHz, 95 W);
Intel® Xeon® E5-2650v2 (8C/16T, 2.60GHz, TLC: 20MB, 8.0 GT/s, Mem: 1866 MHz, 95 W);
Intel® Xeon® E5-2667v2 (8C/16T, 3.30GHz, TLC: 25MB, 8.0 GT/s, Mem: 1866 MHz, 130 W);
Max CPU Clk Spd Up to 3.5GHz
CPU Cache 10–30 MB per CPU
Max # Thread(s) Up to 24 per CPU
Max # Core(s) Up to 12 per CPU
Memory Slot(s) 24 (12 DIMMs per CPU, 4 channels with 3 slots per channel)
Memory Capacity 4 GB - 1536 GB
Memory Expansion Advanced ECC
Memory Scrubbing
SDDC (Chipkill™)
Rank sparing memory support
Memory Mirroring support (as soon as released)
Drive Bays 4 x 2.5-inch base unit or 8 x 2.5-inch base unit
HDD Suitability 4 x 2.5-inch hot-plug SAS/SATA or
8 x 2.5-inch hot-plug SAS/SATA
SATA Controller Intel® C600, 1 x SATA channel for ODD
RAID Controller 4 port for internal 3G SATA and SAS (as upgrade option with SAS enabling key) for HDDs with RAID 0/1/10 (Intel C600)
RAID Options RAID 5/6 Ctrl., SAS/SATA 6 Gbit/s, LSI LSI MegaRAID SAS 9286CV-8e, 8 ports ext.
RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU (based on LSI SAS2208)

RAID 5/6 Ctrl., SAS/SATA 6 Gbit/s, Fujitsu RAID Ctrl SAS 6G 5/6 512MB (D2616), 8 ports int.
RAID level: 0, 1, 10, 5, 50, 6, 60, 512 MB Cache, Optional BBU (based on LSI SAS2108)

RAID 5/6 Ctrl., SAS/SATA 6 Gbit/s, Fujitsu RAID Ctrl SAS 6G 1GB (D3116C), 8 ports int.
RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU (based on LSI SAS2208)

RAID 0/1 Ctrl., SAS/SATA 6 Gbit/s, Fujitsu RAID Ctrl SAS 6G 0/1 (D2607), 8 ports int.
RAID level: 0, 1, 10, No BBU support
Supported OS Microsoft Windows; Hyper-V; VMware; SuSE Linux; Red Hat; Citrix XenServer
USB Port(s) 6 x USB 2.0 (2x front, 3x rear, 1x uSSD)
PCI Slot(s) 3x LP PCIe Gen 3.0 x8; 1x LP PCIe Gen 3.0 x16;
LAN Socket(s) 2 x Gbit/s Ethernet (RJ45) with upgrade options for additional 2x1 Gbit/s (RJ45), 4x 1 Gbit/s (RJ45) or 2x 10 Gbit/s (SFP+)
LAN Controller(s) Intel® Ethernet Controller I350, 2 x 10/100/1000 Mbit/s Ethernet (I/O acceleration), Modular integrated on-board LAN offers upgrade options for additional 2x1 Gbit/s , 4x 1 Gbit/s or 2x 10 Gbit/s. PXE-Boot via LAN from PXE server, iSCSI boot (also diskles
Graphics / GPU 2 x VGA (thereof 1x front optional)
Standard 3 years onsite service. (Country dependant)
Optional 9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time
24x7, 4h Onsite Response Time
