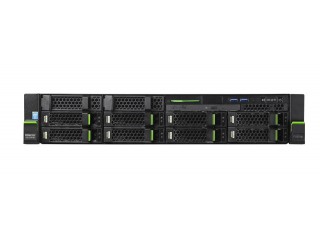

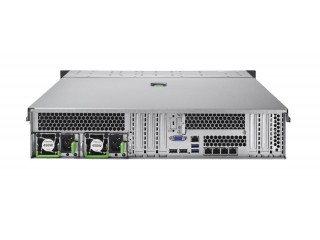

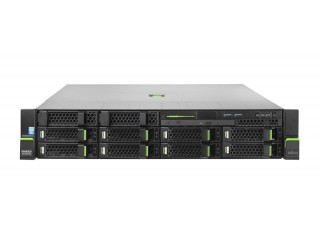

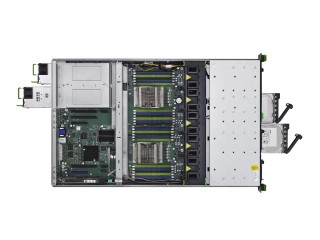

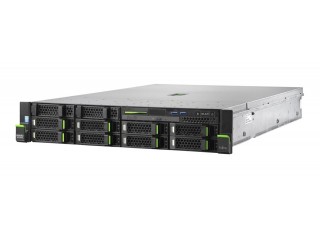

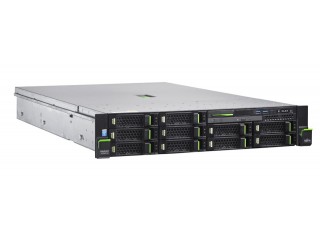

The FUJITSU Server PRIMERGY RX2540 M1 sets higher standards for usability, scalability and cost-efficiency. It is a 2U dual-socket rack server ideal for running enterprise applications, collaboration and messaging workloads as well as traditional databases. Plus, it substantially simplifies carrying out infrastructure-related tasks like server virtualization and consolidation.
As one of the key innovations, versatile performance is guaranteed by a new generation of processors. The PRIMERGY RX2540 M1 can be equipped with two of the latest Intel® Xeon® E5-2600 v3 processors with up to 36 cores. Along with new DDR4 memory technology it boosts application performance to be able to cope with the increasing data growth and shortens time to business results. The modular design of the server offers excellent expandability with up to 24 disk drives (available 02/2015), high storage density, DynamicLoM technology, up to 8 PCIe Gen 3 I/O expansion slots.
The new DynamicLoM technology offers users the ability to individually adapt the current server network as well as the ability to change and thus meet future requirements without giving the server infrastructure a general overhaul. The PRIMERGY RX2540 M1 comes with 2 redundant hot-plug power supply units, offering up to 96% energy efficiency. The Cool-safe® Advanced Thermal Design allows for operation in ambient temperatures of up to 40 °C/104 °F.
Both these features in line help to reduce operational expenses.
| Part No. | rx2540m1 |
|---|---|
| Manufacturer | Fujitsu |
| End of Life? | No |
| Preceeded By | Fujitsu RX300 S8 |
| Rack Units | 2 |
| Height | 86.6 |
| Width | 482.4 |
| Depth | 445 |
| Weight [Kg] | 25.00 |
| CPU Socket(s) | 1 - 2 x Intel® Xeon® processor E5-2600 v3 product family |
| Compatible CPU(s) | Intel® Xeon® E5-2603v3 (6C/6T, 1.60 GHz, 15 MB, 85 W); Intel® Xeon® E5-2609v3 (6C/6T, 1.90 GHz, 15 MB, 85 W); Intel® Xeon® E5-2620v3 (6C/12T, 2.40 GHz, 15 MB, 85 W); Intel® Xeon® E5-2623v3 (4C/8T, 3.00 GHz, 10 MB, 105 W); Intel® Xeon® E5-2630Lv3 (8C/16T, 1.80 GHz, 20 MB, 55 W); Intel® Xeon® E5-2630v3 (8C/16T, 2.40 GHz, 20 MB, 85 W); Intel® Xeon® E5-2637v3 (4C/8T, 3.50 GHz, 15 MB, 135 W); Intel® Xeon® E5-2640v3 (8C/16T, 2.60 GHz, 20 MB, 90 W); Intel® Xeon® E5-2643v3 (6C/12T, 3.40 GHz, 20 MB, 135 W); Intel® Xeon® E5-2650Lv3 (12C/24T, 1.80 GHz, 30 MB, 65 W); Intel® Xeon® E5-2650v3 (10C/20T, 2.30 GHz, 25 MB, 105 W); Intel® Xeon® E5-2660v3 (10C/20T, 2.60 GHz, 25 MB, 105 W); Intel® Xeon® E5-2667v3 (8C/16T, 3.20 GHz, 20 MB, 135 W); Intel® Xeon® E5-2670v3 (12C/24T, 2.30 GHz, 30 MB, 120 W); Intel® Xeon® E5-2680v3 (12C/24T, 2.50 GHz, 30 MB, 120 W); Intel® Xeon® E5-2683v3 (14C/28T, 2.00 GHz, 35 MB, 120 W); Intel® Xeon® E5-2690v3 (12C/24T, 2.60 GHz, 30 MB, 135 W); Intel® Xeon® E5-2695v3 (14C/28T, 2.30 GHz, 35 MB, 120 W); Intel® Xeon® E5-2697v3 (14C/28T, 2.60 GHz, 35 MB, 145 W); Intel® Xeon® E5-2698v3 (16C/32T, 2.30 GHz, 40 MB, 135 W); Intel® Xeon® E5-2699v3 (18C/36T, 2.30 GHz, 45 MB, 145 W) |
| Max CPU Clk Spd | Up to 3.5 GHz |
| CPU Cache | Up to 45 MB per Socket |
| Max # Thread(s) | Up to 36 per Socket |
| Max # Core(s) | Up to 18 per Socket |
| Memory Slot(s) | 24 (12 DIMMs per CPU, 4 channels with 3 slots per channel) |
| Memory Capacity | 4 GB - 768 GB DDR4 |
| Drive Bays | 8x 3.5-inch or 12x 2.5-inch (avail. 02/2015) hot-plug SAS/SATA |
| Capacity | Up to 48.0 TB (12x 4TB SATA) |
| HDD Suitability | SSD SATA, 6 Gb/s, 800 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SATA, 6 Gb/s, 400 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SATA, 6 Gb/s, 200 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SATA, 6 Gb/s, 100 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SAS, 12 Gb/s, 800 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SAS, 12 Gb/s, 400 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SAS, 12 Gb/s, 200 GB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; SSD SAS, 12 Gb/s, 1.6 TB, Mainstream Endurance, hot-plug, 3.5-inch, enterprise; HDD SATA, 6 Gb/s, 500 GB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SATA, 6 Gb/s, 4 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SATA, 6 Gb/s, 3 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise; HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise; HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise; HDD SAS, 6 Gb/s, 4 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SAS, 6 Gb/s, 3 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SAS, 6 Gb/s, 2 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical; HDD SAS, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical |
| RAID Controller | RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, Fujitsu PRAID EP400i, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108 |
| Supported OS | VMware vSphere™ 5.1 Embedded Microsoft® Hyper-V Server 2012 R2 Microsoft® Windows Server® 2012 R2 Datacenter Microsoft® Windows Server® 2012 R2 Standard Microsoft® Windows Storage Server 2012 R2 Standard VMware vSphere™ 5.1 Red Hat® Enterprise Linux 6 |
| USB Port(s) | 5 x USB 3.0 (2x front, 2x rear, 1x internal for backup device); 5 x USB 2.0 (2x rear, 1x front external, 1x USB stick, 1x uSSD) |
| PCI Slot(s) | PCI-Express 3.0 x8 - 3 x Low profile (2nd processor required for slot 4); PCI-Express 3.0 x16 - 3 x Low profile (2nd processor required for slot 5 and 6) |
| Serial Ports | 1 x serial RS-232-C, usable for iRMC or system or shared |
| LAN Socket(s) | FlexibleLoM bay provides options for 1GbE, 10GbE or Inifinband (40/56 GBit/s) |
| Graphics / GPU | 2 x VGA (thereof 1x front optional) |
| Standard | 3 years onsite service |
