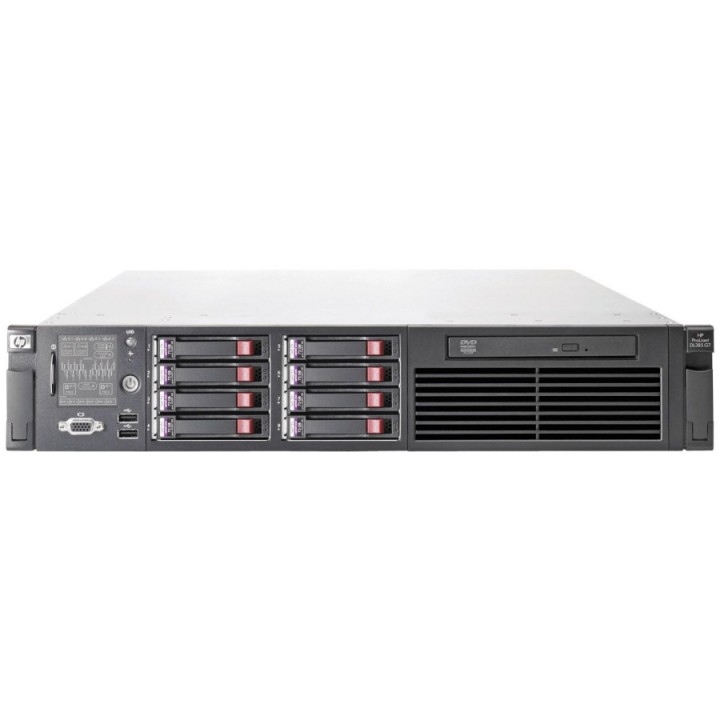

HP ProLiant DL385 G7 Rack Mount Server
designed with virtualization in mind, yet flexible and expandable to support any business need
[573089-421]
As the leading 2P 2U AMD rack server, the HP ProLiant DL385 G7 is designed with virtualization in mind, yet flexible and expandable to support any business need in many environments from corporate datacenters to sophisticated SMBs.
Availability: In stock
Details
Double Down on Performance
• Latest AMD Opteron 6200 Series 16, 12, and 8 Core processors.• Integrated network interconnects to free up PCI slots and support more virtual machines.
• Up to 24 DIMM slots supporting up to 512 GB of DDR3 Memory.
The Right Fit
• With up to six available PCI slots, choose from three modular configurations, including high wattage x16, legacy PCI-X, and (2) x8 dual port risers.• 8 or 16 SFF SAS hard drives with up to 16 TB, or 6 LFF hard drives for up to 18 TB of internal storage.
• Choose from 460W AC, 750W AC , 1200W AC or -48V DC power supplies, 92% or 94% Efficiency.
• Embedded Modular SmartArray storage controllers and your choice of cache size and BBWC or FBWC options.
Virtual Perfection
• Robust memory and NIC features to support more virtual machines and compute intensive business needs.• HP Insight Control tools allows you to manage both physical and virtual IT through a single console.
• Get virtual machines deployed easily and securely.
Focus on Energy Efficiency
• 92% and new 94% efficiency power supplies saves energy costs.• HP Thermal Logic provides robust power management.
| Part No. | 573089-421 |
|---|---|
| Manufacturer | HP |
| End of Life? | No |
| Height | 85.9 mm |
| Width | 445.4 mm |
| Depth | 699.8 mm |
| Weight [Kg] | 27.22 |
| CPU Socket(s) | Up to 2 |
| Compatible CPU(s) | Sixteen-Core Processors AMD Opteron™ 6282SE (2.6GHz); AMD Opteron™ 6276 (2.3GHz); AMD Opteron™ 6274 (2.2GHz); AMD Opteron™ 6272 (2.1GHz); AMD Opteron™ 6262HE (1.6GHz); Twelve-Core Processors AMD Opteron™ 6238 (2.6GHz); AMD Opteron™ 6234 (2.4GHz); AMD Opteron™ 6180SE (2.5GHz); AMD Opteron™ 6176SE (2.3GHz); AMD Opteron™ 6176 (2.3GHz); AMD Opteron™ 6174 (2.2GHz); AMD Opteron™ 6172 (2.1GHz); AMD Opteron™ 6166HE (1.8GHz); Eight-Core Processors AMD Opteron™ 6220 (3.0GHz); AMD Opteron™ 6212 (2.6GHz); AMD Opteron™ 6140 (2.6GHz); AMD Opteron™ 6136 (2.4GHz); AMD Opteron™ 6134 (2.3GHz); AMD Opteron™ 6128 (2.0GHz); AMD Opteron™ 6132HE (2.2GHz); AMD Opteron™ 6128HE (2.0GHz); |
| Max CPU Clk Spd | Up to 3.0 GHz |
| CPU Cache | 12MB (1 x 12MB) Level 3 cache memory |
| Max # Core(s) | 8, 12 or 16 per CPU |
| Memory Slot(s) | 12 |
| Memory Capacity | 512 GB |
| Drive Bays | Standard 8x small form factor (SFF) hot-plug drive bays to support Serial-attached SCSI (SAS) and Serial ATA (SATA) drives . Optional second drive cage for additional (8) SFF drive bays (total 16). Optional cage for (6) Large Form Factor SAS/SATA hard drive bays. |
| Capacity | 16 TB |
| HDD Suitability | Hot Plug SFF SAS 16TB 16 x 1TB (with optional SFF drive cage); Hot Plug LFF SAS 18TB 6 x 3TB (with optional LFF drive cage); Hot Plug SFF SAS SSD 12.8TB 16 x 800GB (with optional SFF drive cage); Hot Plug LFF SATA SSD 2.4TB 6 x 400GB (with optional LFF drive cage); Hot Plug SFF SATA SSD 6.4TB 16 x 400GB (with optional SFF drive cage); |
| RAID Controller | HP Smart Array P410i |
| RAID Options | Entry Models: HP Smart Array P410i/Zero Memory Controller; Base Models: HP Smart Array P410i/256 MB Controller; or HP Smart Array P410i/512MB FBWC Controller; High Performance Models: HP Smart Array P410i/1G FBWC Controller; |
| Supported OS | Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer |
| USB Port(s) | 2 front, 2 back, 2 inside - one for internal tape |
| PCI Slot(s) | Primary Riser (Standard)
1x PCI-e Gen2 x8 x16 6 Full Length/Full Height; 2x PCIe Gen2 x4 x8 12 Half Length/Full Height; PCIe Riser (Optional Secondary) 1x PCIe Gen2 x8 x16 18 Full Length/Full Height; 2x PCIe Gen2 x4 x8 24 Low Profile; PCIe/PCI-X Riser (Optional Primary) 1x PCI-X 64-bit N/A 7 Full Length, Full Height; 1x PCI-X 64-bit N/A 7 Half Length, Full Height; 1x PCIe Gen 2 x8 x8 11 Half Length, Full Height; PCIe/PCI-X Riser (Optional Secondary) 1x PCI-X 64-bit N/A 19 Full Length/Full Height; 1x PCI-X 64-bit N/A 19 Low Profile; 1x PCIe Gen2 x8 x8 23 Low Profile; x16 PCIe Riser (Optional Primary) 1x PCIe Gen2 x16 x16 6 Full Length/Full Height; x16 PCIe RIser (Optional Secondary) 1x PCIe Gen2 x16 x16 18 Full Length/Full Height; (2) x8 PCI-E Riser (Optional Primary) 1x PCIe Gen2 x8 x16 6 Full Length/Full Height; 1x PCIe Gen2 x8 x16 9 Half Length, Full Height; (2) x8 PCI-E Riser (Optional Secondary) 1x PCIe Gen2 x8 x16 18 Full Length/Full Height; 1x PCIe Gen2 x8 x16 21 Low Profile; |
| Serial Ports | 1x Serial Port |
| LAN Socket(s) | Two HP NC382i Dual Port Multifunction Gigabit Server Adapters (four ports total) |
| LAN Controller(s) | NC382i |
| Optional | This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
